OEM List- 43330-39415
- 43330-39465
- 43330-39466
- 43330-39585

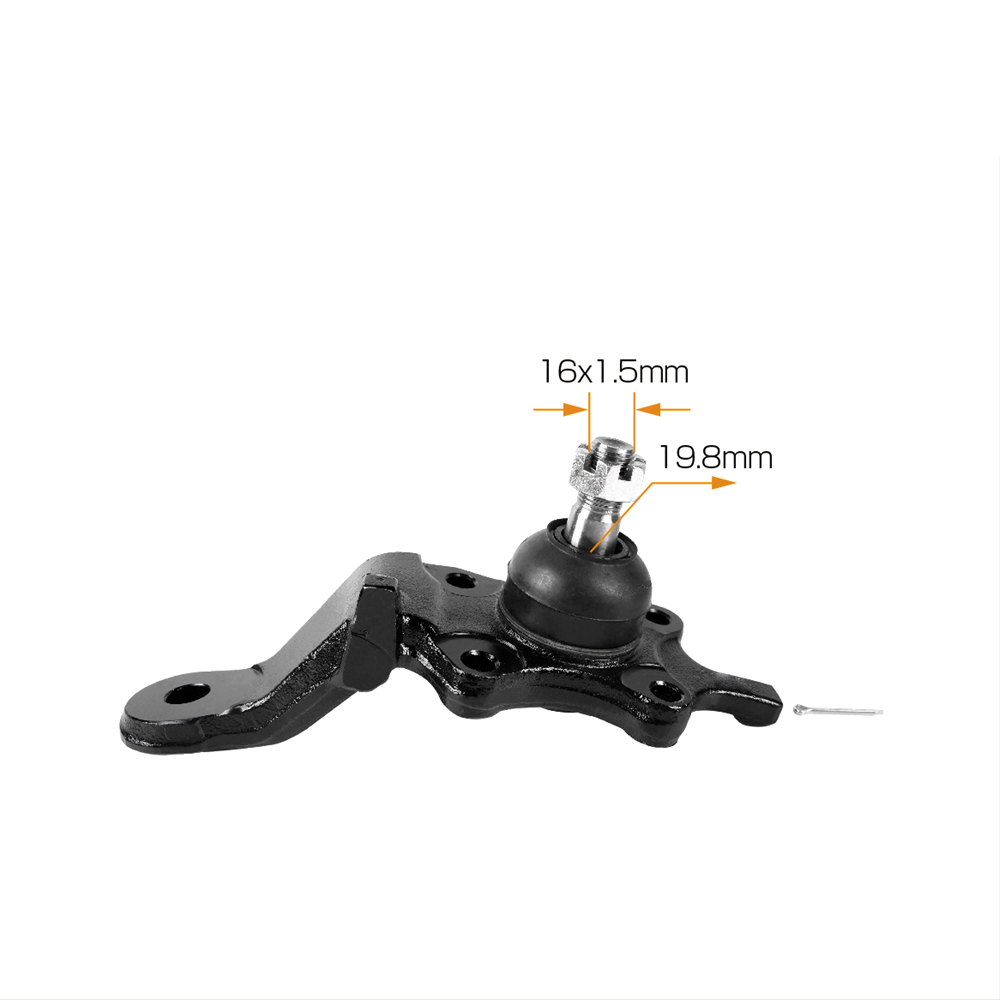

TOMOI ball joints use the most modern design — ball joints made of polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with a smooth glossy surface: wear-resistant, resistant to oxidation and staining, self-lubricating and oil-impermeable. It is characterized by high strength and dimensional stability.
The metal parts of the ball joints are made of Cr40 alloy steel with mandatory hardening. A special mirror processing technology ensures the roughness of the ball pin surface is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The brand’s main specialization: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
TOYOTA
4RUNNER
Chassis No. | Year | Configuration |
---|
VZN180L | 1995.11-2002.08 | 3.4L Patrol 5VZFE EFI (183 hp / 135 kW) Rear - wheel drive. LHD |
VZN185L | 1995.11-2002.08 | 3.4L Patrol 5VZFE EFI (183 hp / 135 kW) Four - wheel drive (4WD). LHD |
HILUX SURF
Chassis No. | Year | Configuration |
---|
KZN185W | 1995.11-2000.08 | 3.0L Diesel 1KZTE (130 hp / 96 kW) Four - wheel drive (4WD). RHD |
RZN185W | 1995.11-2002.11 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
RZN185W | 1995.11-2002.11 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
VZN185W | 1995.11-2002.11 | 3.4L Patrol 5VZFE EFI (185 hp / 469 kW) Four - wheel drive (4WD). RHD |
VZN185W | 1995.11-2002.11 | 3.4L Patrol 5VZFE EFI (185 hp / 469 kW) Four - wheel drive (4WD). RHD |
RZN180W | 1998.07-2002.11 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Rear - wheel drive. RHD |
RZN180W | 1998.07-2002.11 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Rear - wheel drive. RHD |
KDN185W | 2000.08-2002.11 | 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
KDN185W | 2000.08-2002.11 | 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
LAND CRUISER PRADO
Chassis No. | Year | Configuration |
---|
KZJ90W | 1996.04-2000.08 | 3.0L Diesel 1KZTE (140 hp / 103 kW) Four - wheel drive (4WD). RHD |
KZJ95W | 1996.04-2000.08 | 3.0L Diesel 1KZTE (145 hp / 107 kW) Four - wheel drive (4WD). RHD |
KZJ95L | 1996.04-2002.09 | 3.0L Diesel 1KZTE (125 hp / 92 kW) Four - wheel drive (4WD). LHD |
KZJ90L | 1996.04-2002.09 | 3.0L Diesel 1KZTE (125 hp / 92 kW) Four - wheel drive (4WD). LHD |
VZJ90L | 1996.04-2002.09 | 3.4L Patrol 5VZFE EFI (178 hp / 131 kW) Four - wheel drive (4WD). LHD |
VZJ95L | 1996.04-2002.09 | 3.4L Patrol 5VZFE EFI (178 hp / 131 kW) Four - wheel drive (4WD). LHD |
VZJ90W | 1996.04-2002.09 | 3.4L Patrol 5VZFE EFI (185 hp / 136 kW) Four - wheel drive (4WD). RHD |
VZJ90W | 1996.04-2002.09 | 3.4L Patrol 5VZFE EFI (185 hp / 136 kW) Four - wheel drive (4WD). RHD |
VZJ95W | 1996.04-2002.09 | 3.4L Patrol 5VZFE EFI (185 hp / 136 kW) Four - wheel drive (4WD). RHD |
VZJ95W | 1996.04-2002.09 | 3.4L Patrol 5VZFE EFI (185 hp / 136 kW) Four - wheel drive (4WD). RHD |
RZJ90W | 1997.04-2002.09 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
RZJ90W | 1997.04-2002.09 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
RZJ95W | 1997.04-2002.09 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
RZJ95W | 1997.04-2002.09 | 2.7L Patrol 3RZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
KDJ95L | 2000.08-2002.09 | 3.0L Diesel 1KDFTV (163 hp / 120 kW) Four - wheel drive (4WD). LHD |
KDJ90L | 2000.08-2002.09 | 3.0L Diesel 1KDFTV (163 hp / 120 kW) Four - wheel drive (4WD). LHD |
KDJ90W | 2000.08-2002.11 | 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
KDJ95W | 2000.08-2002.11 | 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
KDJ95W | 2000.08-2002.11 | 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
KDJ90W | 2000.08-2002.11 | 3.0L Diesel 1KDFTV (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
SEQUOIA
Chassis No. | Year | Configuration |
---|
UCK45L | 2000.09-2001.02 | 4.7L Patrol 2UZFE EFI (273 hp / 201 kW) Four - wheel drive (4WD). LHD |
UCK35L | 2000.09-2001.02 | 4.7L Patrol 2UZFE EFI (282 hp / 207 kW) Rear - wheel drive. LHD |
UCK45L | 2001.02-2002.08 | 4.7L Patrol 2UZFE EFI (273 hp / 201 kW) Four - wheel drive (4WD). LHD |
UCK35L | 2001.02-2002.08 | 4.7L Patrol 2UZFE EFI (282 hp / 207 kW) Rear - wheel drive. LHD |
TUNDRA
Chassis No. | Year | Configuration |
---|
VCK30L | 1999.02-2000.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Rear - wheel drive. LHD Access Cab |
VCK30L | 1999.02-2000.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Rear - wheel drive. LHD Access Cab |
VCK40L | 1999.02-2002.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Four - wheel drive (4WD). LHD |
VCK40L | 1999.02-2002.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Four - wheel drive (4WD). LHD |
VCK40L | 1999.02-2002.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Four - wheel drive (4WD). LHD Access Cab |
VCK40L | 1999.02-2002.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Four - wheel drive (4WD). LHD Access Cab |
VCK30L | 1999.02-2004.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Rear - wheel drive. LHD |
VCK30L | 1999.02-2004.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Rear - wheel drive. LHD |
VCK30L | 1999.02-2004.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Rear - wheel drive. LHD Access Cab |
VCK30L | 1999.02-2004.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Rear - wheel drive. LHD Access Cab |
VCK40L | 1999.02-2004.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Four - wheel drive (4WD). LHD Access Cab |
VCK40L | 1999.02-2004.08 | 3.4L Patrol 5VZFE EFI (190 hp / 140 kW) Four - wheel drive (4WD). LHD Access Cab |
UCK40L | 1999.02-2004.08 | 4.7L Patrol 2UZFE EFI (271 hp / 199 kW) Four - wheel drive (4WD). LHD |
UCK40L | 1999.02-2004.08 | 4.7L Patrol 2UZFE EFI (271 hp / 199 kW) Four - wheel drive (4WD). LHD |
UCK30L | 1999.02-2006.12 | 4.7L Patrol 2UZFE EFI (240 hp / 177 kW) Rear - wheel drive. LHD Access Cab |
UCK30L | 1999.02-2006.12 | 4.7L Patrol 2UZFE EFI (240 hp / 177 kW) Rear - wheel drive. LHD Access Cab |
UCK40L | 1999.02-2006.12 | 4.7L Patrol 2UZFE EFI (240 hp / 177 kW) Four - wheel drive (4WD). LHD Access Cab |
UCK40L | 1999.02-2006.12 | 4.7L Patrol 2UZFE EFI (240 hp / 177 kW) Four - wheel drive (4WD). LHD Access Cab |
UCK40L | 2000.08-2004.08 | 4.7L Patrol 2UZFE EFI (271 hp / 199 kW) Four - wheel drive (4WD). LHD |
UCK40L | 2000.08-2004.08 | 4.7L Patrol 2UZFE EFI (271 hp / 199 kW) Four - wheel drive (4WD). LHD |
UCK30L | 2004.08-2006.08 | 4.7L Patrol 2UZFE EFI (271 hp / 199 kW) Rear - wheel drive. LHD |
UCK30L | 2004.08-2006.08 | 4.7L Patrol 2UZFE EFI (271 hp / 199 kW) Rear - wheel drive. LHD |
