- MB912505
- MB912506
- MR162803
- MR162804

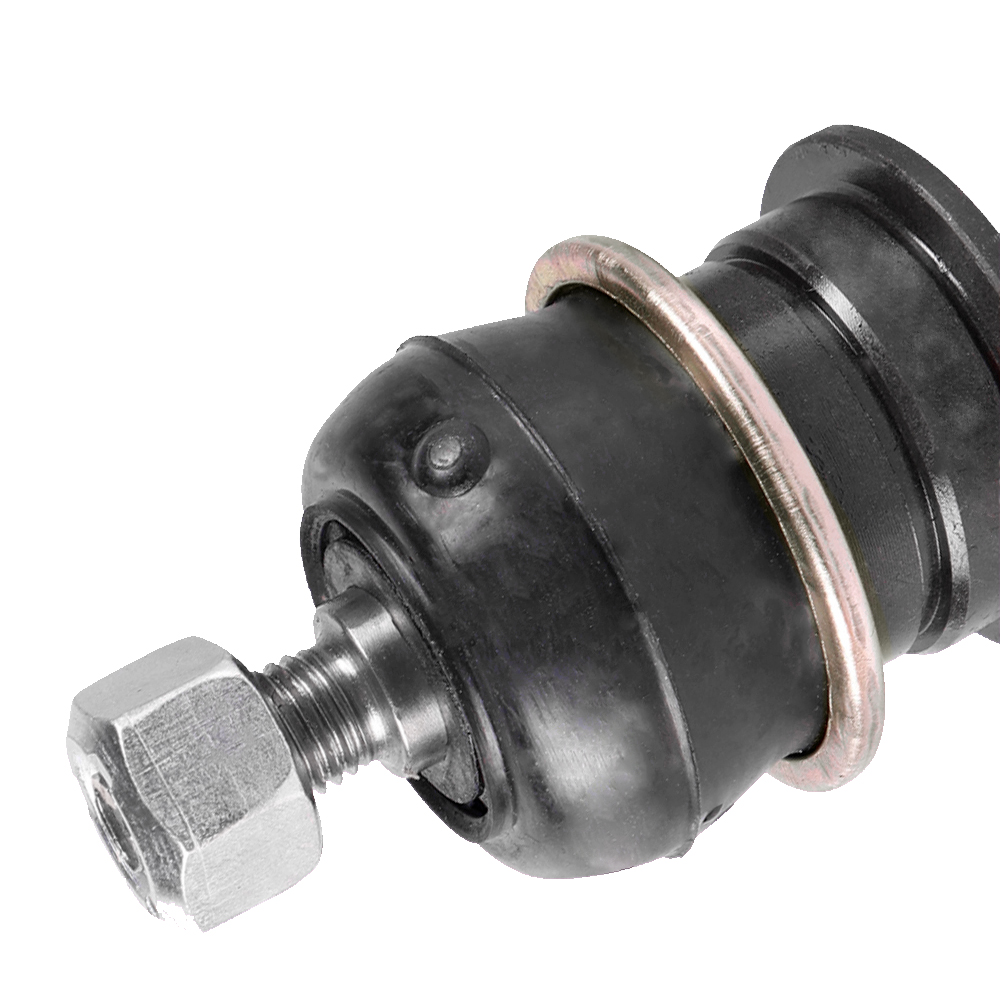

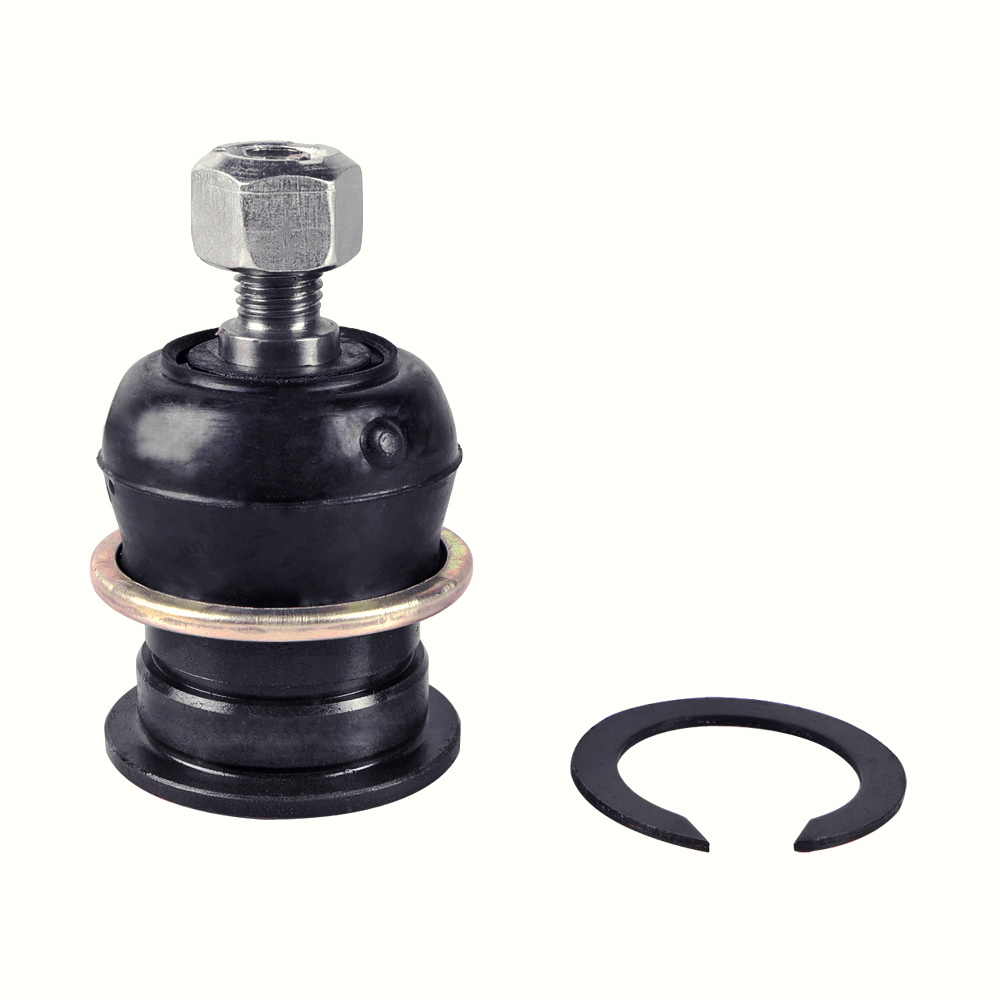

TOMOI ball joints use the most modern design — ball joints made of polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with a smooth glossy surface: wear-resistant, resistant to oxidation and staining, self-lubricating and oil-impermeable. It is characterized by high strength and dimensional stability.
The metal parts of the ball joints are made of Cr40 alloy steel with mandatory hardening. A special mirror processing technology ensures the roughness of the ball pin surface is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The brand’s main specialization: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
Chassis No. | Year | Configuration |
---|---|---|
D32A | 1995.02-1996.05 | 2.0L Patrol 4G63T MPI (200 hp / 147 kW) Front - wheel drive (2WD). LHD |
D32A | 1995.02-1996.05 | 2.0L Patrol 4G63T MPI (200 hp / 147 kW) Front - wheel drive (2WD). LHD |
D32A | 1995.08-1999.05 | 2.0L Patrol 4G63 MPI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
D32A | 1995.08-1999.05 | 2.0L Patrol 4G63 MPI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
D38A | 1995.12-1999.07 | 2.0L Patrol 4G63T MPI (220 hp / 162 kW) Front - wheel drive (2WD). LHD |
D38A | 1995.12-1999.07 | 2.0L Patrol 4G63T MPI (220 hp / 162 kW) Front - wheel drive (2WD). LHD |
Chassis No. | Year | Configuration |
---|---|---|
E64A | 1992.07-1993.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E64A | 1992.07-1993.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E52A | 1992.07-1994.09 | 1.8L Patrol 4G93 Карбюратор (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
E52A | 1992.07-1994.09 | 1.8L Patrol 4G93 Карбюратор (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
E84A | 1992.07-1994.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Four - wheel drive (4WD). RHD |
E84A | 1992.07-1994.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Four - wheel drive (4WD). RHD |
E54A | 1992.07-1994.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.07-1994.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E53A | 1992.07-1996.09 | 1.8L Patrol 6A11 MPI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
E53A | 1992.07-1996.09 | 1.8L Patrol 6A11 MPI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.07-1996.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.07-1996.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E64A | 1993.09-1994.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E64A | 1993.09-1994.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
E54A | 1993.09-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E54A | 1993.09-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E74A | 1994.09-1996.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
E74A | 1994.09-1996.09 | 2.0L Patrol 6A12 MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
Chassis No. | Year | Configuration |
---|---|---|
E64A | 1992.02-1993.09 | 2.0L Patrol 6A12 MPI (200 hp / 147 kW) Front - wheel drive (2WD). RHD |
E64A | 1992.02-1993.09 | 2.0L Patrol 6A12 MPI (200 hp / 147 kW) Front - wheel drive (2WD). RHD |
E84A | 1992.02-1994.09 | 2.0L Patrol 6A12T MPI (145 hp / 107 kW) Four - wheel drive (4WD). RHD |
E84A | 1992.02-1994.09 | 2.0L Patrol 6A12T MPI (145 hp / 107 kW) Four - wheel drive (4WD). RHD |
E54A | 1992.02-1995.08 | 2.0L Patrol 6A12 MPI (200 hp / 147 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.02-1995.08 | 2.0L Patrol 6A12 MPI (200 hp / 147 kW) Front - wheel drive (2WD). RHD |
E52A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E52A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E72A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (240 hp / 177 kW) Four - wheel drive (4WD). RHD |
E72A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (240 hp / 177 kW) Four - wheel drive (4WD). RHD |
E53A | 1992.02-1996.09 | 1.8L Patrol 6A11 MPI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
E53A | 1992.02-1996.09 | 1.8L Patrol 6A11 MPI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.02-1996.09 | 2.0L Patrol 6A12 MPI (200 hp / 147 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.02-1996.09 | 2.0L Patrol 6A12 MPI (200 hp / 147 kW) Front - wheel drive (2WD). RHD |
E57A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
E57A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
E77A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Four - wheel drive (4WD). RHD |
E77A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Four - wheel drive (4WD). RHD |
E52A | 1993.09-1994.09 | 1.8L Patrol 4G93 MPI (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
E52A | 1993.09-1994.09 | 1.8L Patrol 4G93 MPI (110 hp / 81 kW) Front - wheel drive (2WD). RHD |
E52A | 1994.09-1996.09 | 1.8L Patrol 4G93 MPI (140 hp / 103 kW) Front - wheel drive (2WD). RHD |
E52A | 1994.09-1996.09 | 1.8L Patrol 4G93 MPI (140 hp / 103 kW) Front - wheel drive (2WD). RHD |
E74A | 1994.09-1996.09 | 2.0L Patrol 6A12T MPI (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
E74A | 1994.09-1996.09 | 2.0L Patrol 6A12T MPI (200 hp / 147 kW) Four - wheel drive (4WD). RHD |
Chassis No. | Year | Configuration |
---|---|---|
E64A | 1992.02-1993.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E64A | 1992.02-1993.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E53A | 1992.02-1995.08 | 1.8L Patrol 6A11 MPI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
E53A | 1992.02-1995.08 | 1.8L Patrol 6A11 MPI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
E72A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (110 hp / 81 kW) Four - wheel drive (4WD). RHD |
E72A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (110 hp / 81 kW) Four - wheel drive (4WD). RHD |
E52A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E52A | 1992.02-1996.09 | 1.8L Patrol 4G93 Карбюратор (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.02-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E54A | 1992.02-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E84A | 1992.02-1996.09 | 2.0L Patrol 6A12T MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
E84A | 1992.02-1996.09 | 2.0L Patrol 6A12T MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
E57A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
E57A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
E77A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Four - wheel drive (4WD). RHD |
E77A | 1992.02-1996.09 | 2.0L Diesel 4D68T (94 hp / 69 kW) Four - wheel drive (4WD). RHD |
E64A | 1992.11-1994.12 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). LHD 4WS |
E64A | 1992.11-1994.12 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). LHD 4WS |
E64A | 1992.11-1994.12 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). LHD 4WS |
E64A | 1992.11-1994.12 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). LHD 4WS |
E52A | 1992.11-1996.06 | 1.8L Patrol 4G93 MPI (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E52A | 1992.11-1996.06 | 1.8L Patrol 4G93 MPI (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E52A | 1992.11-1996.06 | 1.8L Patrol 4G93 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
E52A | 1992.11-1996.06 | 1.8L Patrol 4G93 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
E55A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E55A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E55A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E55A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E75A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Four - wheel drive (4WD). LHD |
E75A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Four - wheel drive (4WD). LHD |
E75A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Four - wheel drive (4WD). LHD |
E75A | 1992.11-1996.06 | 2.0L Patrol 4G63 MPI (110 hp / 81 kW) Four - wheel drive (4WD). LHD |
E54A | 1992.11-1996.06 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). LHD |
E54A | 1992.11-1996.06 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). LHD |
E54A | 1992.11-1996.06 | 2.0L Patrol 6A12 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
E54A | 1992.11-1996.06 | 2.0L Patrol 6A12 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
E57A | 1992.11-1996.06 | 2.0L Diesel 4D68T (90 hp / 66 kW) Front - wheel drive (2WD). LHD |
E57A | 1992.11-1996.06 | 2.0L Diesel 4D68T (90 hp / 66 kW) Front - wheel drive (2WD). LHD |
E88A | 1992.11-1996.06 | 2.5L Patrol 6G73 MPI (175 hp / 129 kW) Four - wheel drive (4WD). LHD 4WS |
E88A | 1992.11-1996.06 | 2.5L Patrol 6G73 MPI (175 hp / 129 kW) Four - wheel drive (4WD). LHD 4WS |
E88A | 1992.11-1996.06 | 2.5L Patrol 6G73 MPI (175 hp / 129 kW) Four - wheel drive (4WD). LHD 4WS |
E88A | 1992.11-1996.06 | 2.5L Patrol 6G73 MPI (175 hp / 129 kW) Four - wheel drive (4WD). LHD 4WS |
E57A | 1992.11-1996.11 | 2.0L Diesel 4D68T (90 hp / 66 kW) Front - wheel drive (2WD). LHD |
E57A | 1992.11-1996.11 | 2.0L Diesel 4D68T (90 hp / 66 kW) Front - wheel drive (2WD). LHD |
E55A | 1992.12-1993.12 | 2.0L Patrol 4G63 Карбюратор (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E55A | 1992.12-1993.12 | 2.0L Patrol 4G63 Карбюратор (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
E74A | 1993.04-1994.09 | 2.0L Patrol 6A12T MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
E74A | 1993.04-1994.09 | 2.0L Patrol 6A12T MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
E52A | 1993.09-1996.09 | 1.8L Patrol 4G93 MPI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E52A | 1993.09-1996.09 | 1.8L Patrol 4G93 MPI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E54A | 1994.08-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E54A | 1994.08-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
E74A | 1994.08-1996.09 | 2.0L Patrol 6A12T MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
E74A | 1994.08-1996.09 | 2.0L Patrol 6A12T MPI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
E52A | 1994.09-1996.09 | 1.8L Patrol 4G93 MPI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E52A | 1994.09-1996.09 | 1.8L Patrol 4G93 MPI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
E74A | 1994.09-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Four - wheel drive (4WD). RHD |
E74A | 1994.09-1996.09 | 2.0L Patrol 6A12 MPI (145 hp / 107 kW) Four - wheel drive (4WD). RHD |
