OEM List- 43330-09330
- 43330-09580
- 43330-39775
- 43330-39845
- 43330-39855

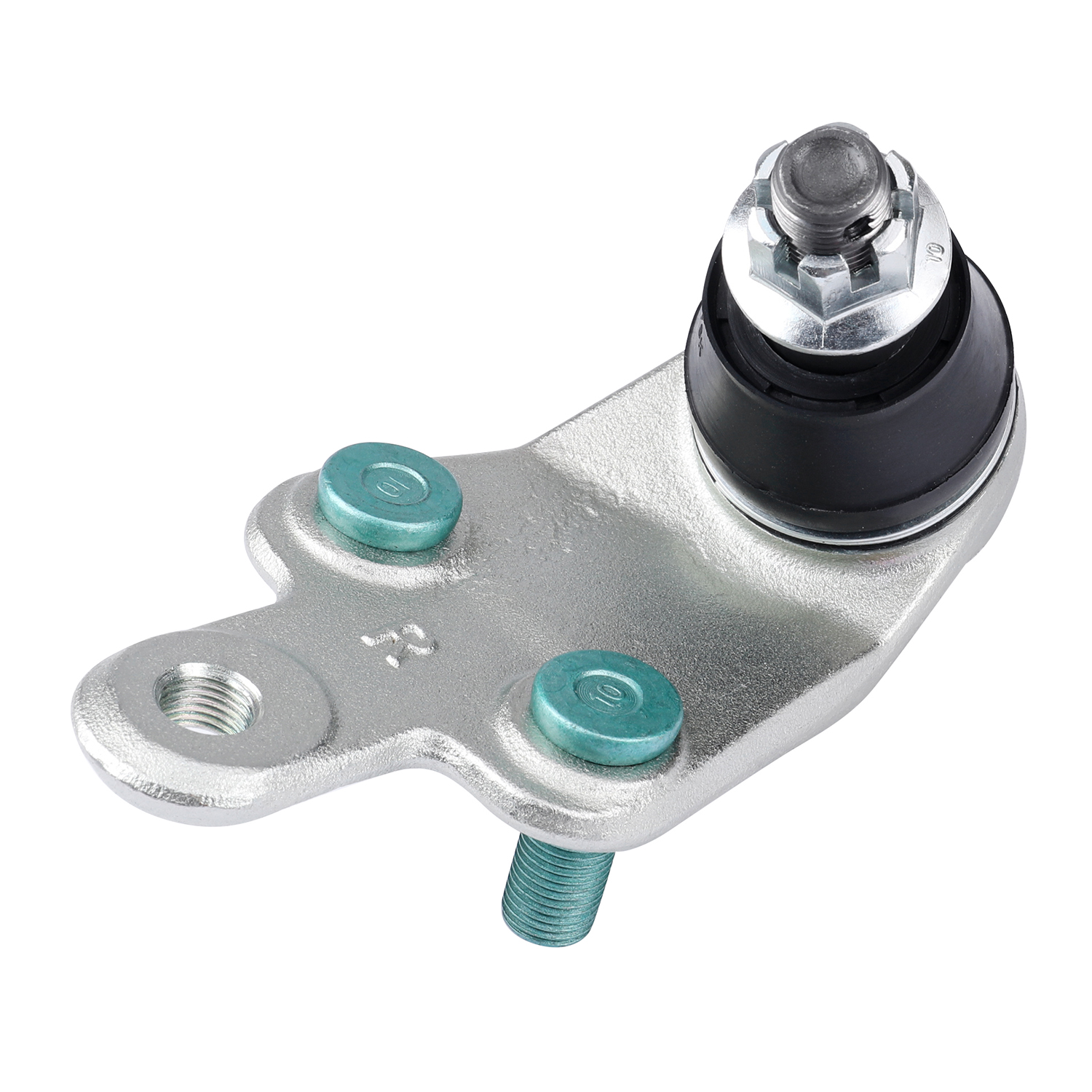

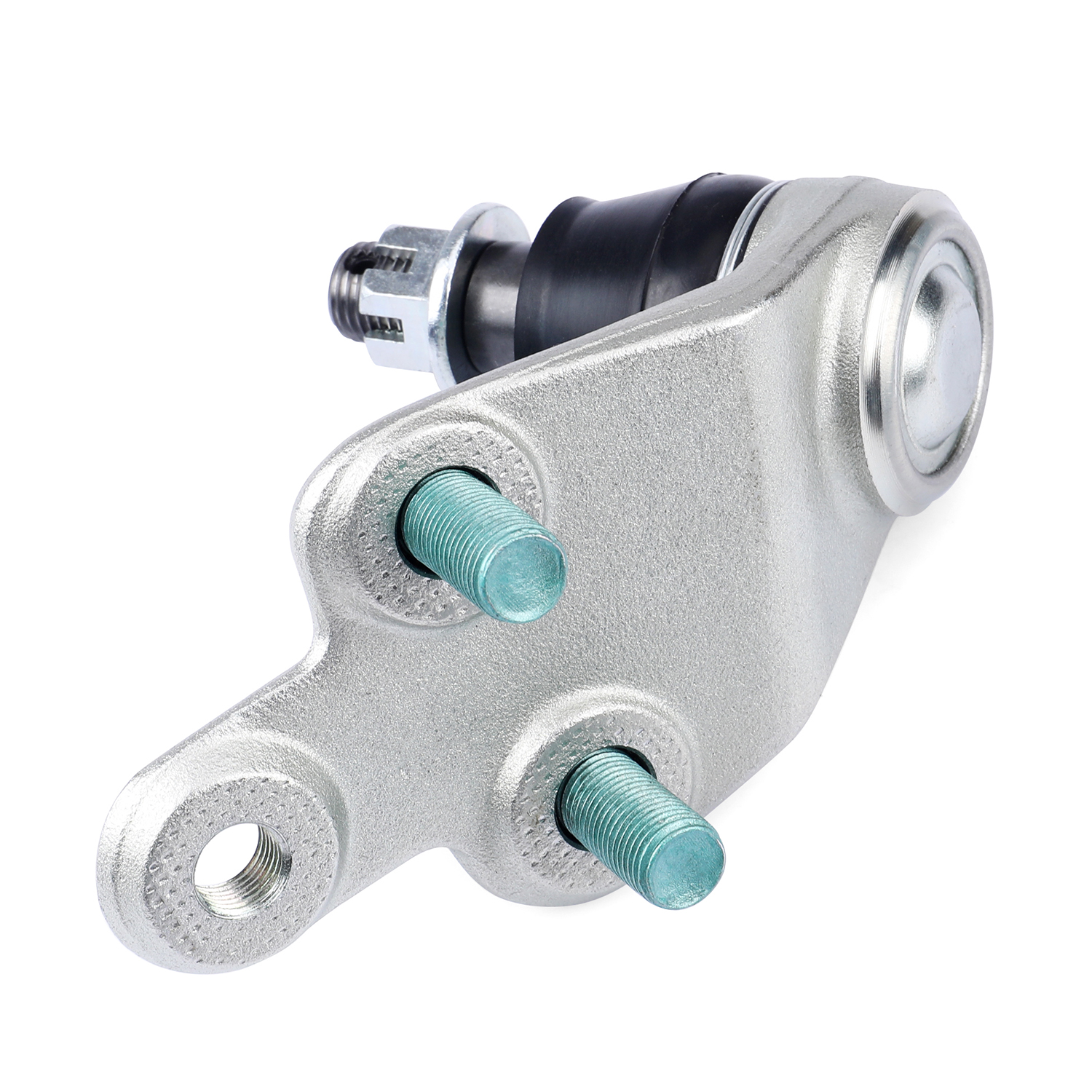

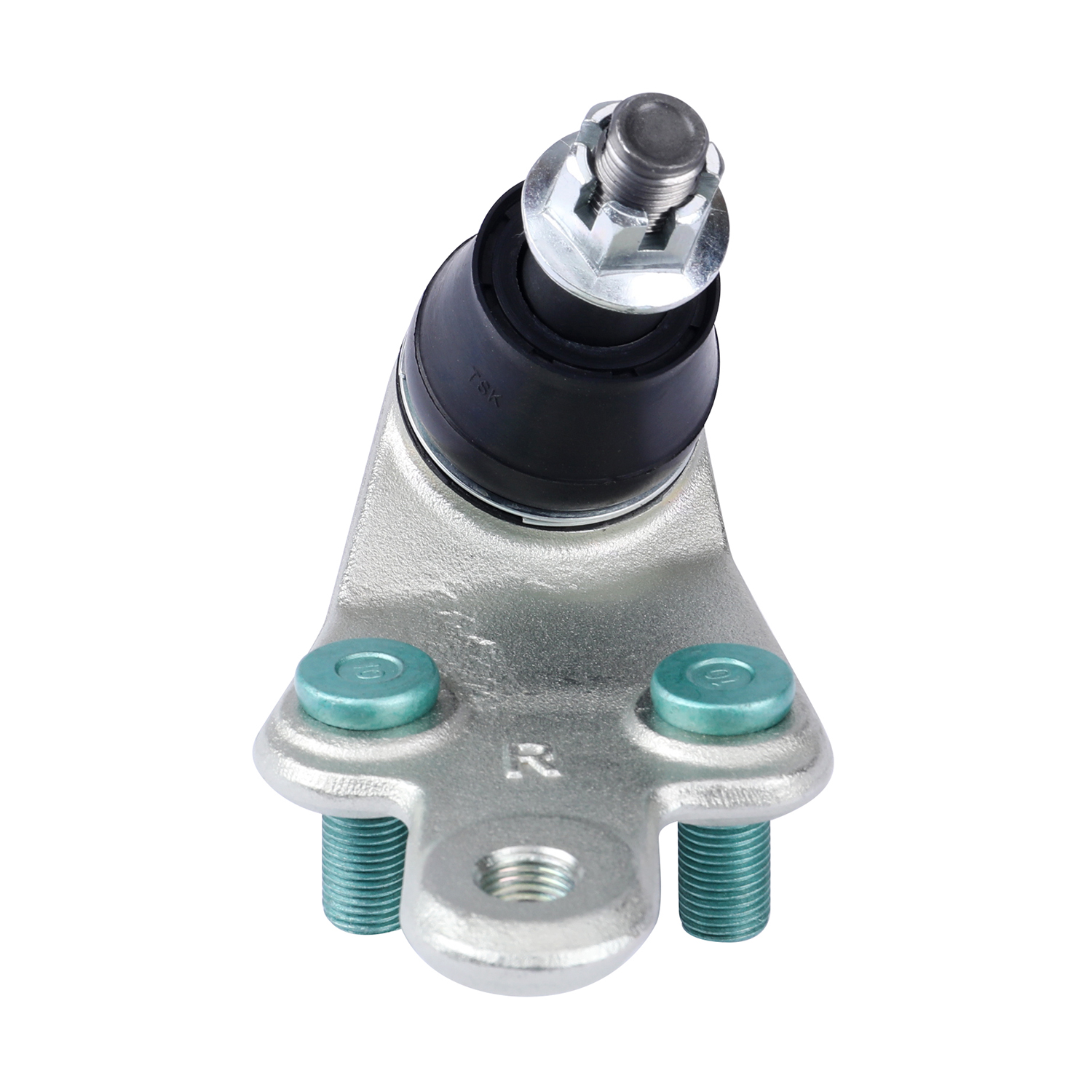

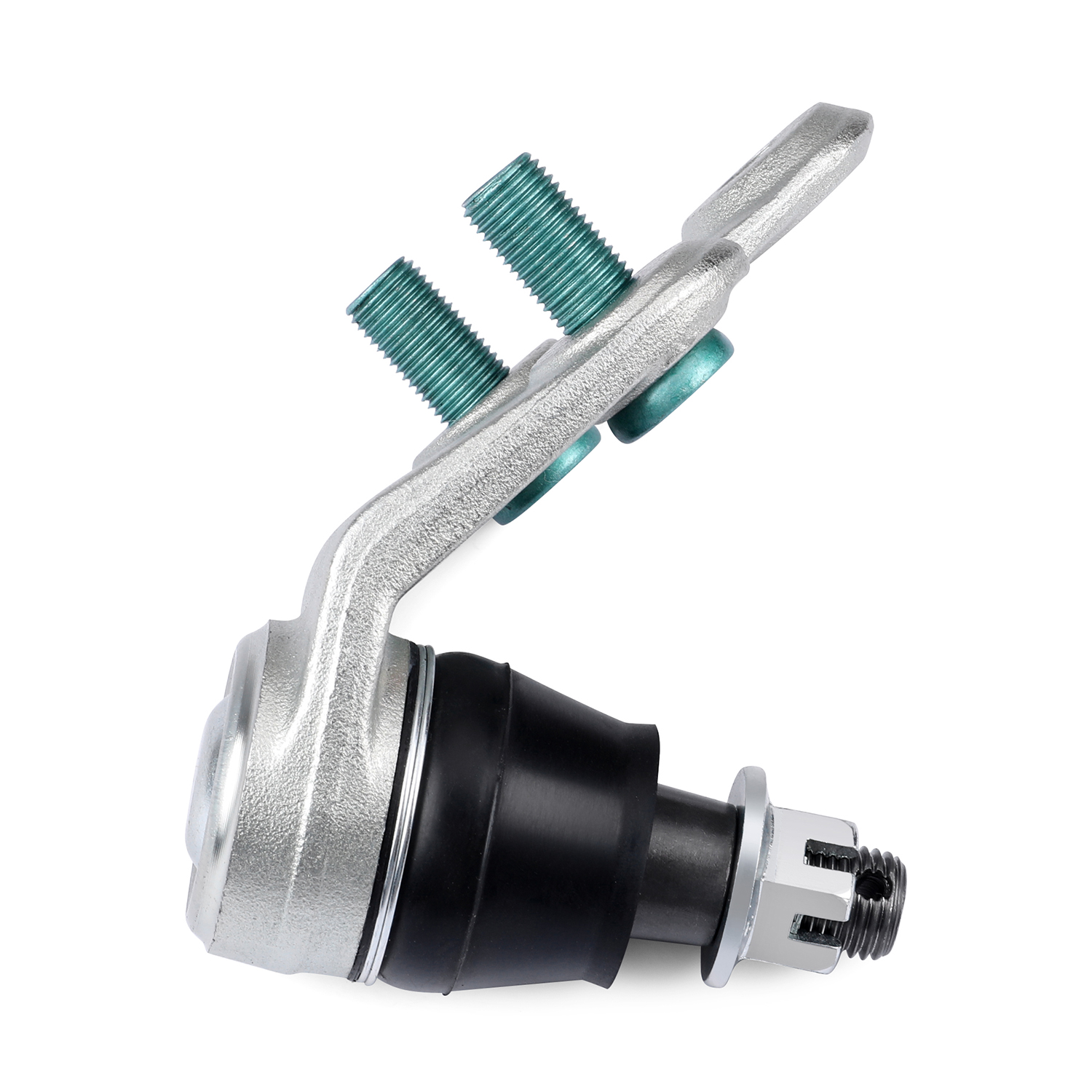

TOMOI ball joints use the most modern design — ball joints made of polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with a smooth glossy surface: wear-resistant, resistant to oxidation and staining, self-lubricating and oil-impermeable. It is characterized by high strength and dimensional stability.
The metal parts of the ball joints are made of Cr40 alloy steel with mandatory hardening. A special mirror processing technology ensures the roughness of the ball pin surface is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The brand’s main specialization: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
DAIHATSU
ALTIS
Chassis No. | Year | Configuration |
---|
ACV40N | 2006.01-2010.03 | 2.4L Patrol 2AZFE EFI (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
ACV45N | 2006.01-2010.03 | 2.4L Patrol 2AZFE EFI (152 hp / 112 kW) Four - wheel drive (4WD). RHD |
LEXUS
ES200
Chassis No. | Year | Configuration |
---|
ASV61L | 2015.07-2018.06 | 2.0L Patrol 6ARFSE D-4S (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
ES250
Chassis No. | Year | Configuration |
---|
ASV60L | 2012.06-2018.06 | 2.5L Patrol 2ARFE EFI (184 hp / 135 kW) Front - wheel drive (2WD). LHD |
ES300H
Chassis No. | Year | Configuration |
---|
AVV60L | 2012.06-2015.07 | 2.5L Patrol 2ARFXE EFI (160 hp / 118 kW) Front - wheel drive (2WD). LHD |
AVV60L | 2012.06-2018.06 | 2.5L Patrol 2ARFXE EFI (160 hp / 118 kW) Front - wheel drive (2WD). LHD |
ES350
Chassis No. | Year | Configuration |
---|
GSV40L | 2006.03-2011.02 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
GSV40L | 2011.03-2012.06 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
GSV60L | 2012.06-2018.06 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
TOYOTA
AVALON
Chassis No. | Year | Configuration |
---|
GSX30L | 2005.01-2012.10 | 3.5L Patrol 2GRFE EFI (280 hp / 206 kW) Front - wheel drive (2WD). LHD |
CAMRY
Chassis No. | Year | Configuration |
---|
ACV40L | 2006.01-2009.01 | 2.4L Patrol 2AZFE EFI (158 hp / 116 kW) Front - wheel drive (2WD). LHD |
ACV40L | 2006.01-2011.02 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). LHD |
GSV40L | 2006.01-2011.02 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
ACV40 | 2006.01-2011.08 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). RHD |
ACV40 | 2006.01-2011.08 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). RHD |
ACV45 | 2006.01-2011.08 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Four - wheel drive (4WD). RHD |
ACV45 | 2006.01-2011.08 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Four - wheel drive (4WD). RHD |
GSV40L | 2006.01-2011.08 | 3.5L Patrol 2GRFE EFI (268 hp / 197 kW) Front - wheel drive (2WD). LHD |
ACV40L | 2006.01-2011.09 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). LHD |
ACV40L | 2006.01-2011.09 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). LHD |
ACV40L | 2006.01-2011.09 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). LHD |
GSV40L | 2006.01-2011.09 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
ACV40L | 2006.02-2009.03 | 2.4L Patrol 2AZFE EFI (158 hp / 116 kW) Front - wheel drive (2WD). LHD |
GSV40L | 2006.02-2011.09 | 3.5L Patrol 2GRFE EFI (268 hp / 197 kW) Front - wheel drive (2WD). LHD |
AHV40L | 2006.03-2011.08 | 2.4L Patrol 2AZFXE EFI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
ASV40L | 2009.01-2011.08 | 2.5L Patrol 2ARFE EFI (179 hp / 132 kW) Front - wheel drive (2WD). LHD |
ASV40L | 2009.03-2011.09 | 2.5L Patrol 2ARFE EFI (179 hp / 132 kW) Front - wheel drive (2WD). LHD |
ACV40L | 2011.03-2011.06 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). LHD |
GSV40L | 2011.03-2011.06 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
ACV40L | 2011.07-2011.09 | 2.4L Patrol 2AZFE EFI (167 hp / 123 kW) Front - wheel drive (2WD). LHD |
GSV40L | 2011.07-2011.09 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
AVV50L.EUR | 2011.08-2017.04 | 2.5L Patrol 2ARFXE EFI (160 hp / 118 kW) Front - wheel drive (2WD). LHD |
AVV50 | 2011.08-2017.04 | 2.5L Patrol 2ARFXE EFI Front - wheel drive (2WD). RHD |
GSV50L.EUR | 2011.08-2017.04 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
ASV50L.RUS | 2011.08-2018.03 | 2.5L Patrol 2ARFE EFI (181 hp / 133 kW) Front - wheel drive (2WD). LHD |
ASV50L.EUR | 2011.08-2018.03 | 2.5L Patrol 2ARFE EFI (181 hp / 133 kW) Front - wheel drive (2WD). LHD |
GSV50L.RUS | 2011.08-2018.03 | 3.5L Patrol 2GRFE EFI (249 hp / 183 kW) Front - wheel drive (2WD). LHD |
ACV51L.RUS | 2012.08-2014.11 | 2.0L Patrol 1AZFE EFI (148 hp / 109 kW) Front - wheel drive (2WD). LHD |
ASV51L.RUS | 2015.03-2018.03 | 2.0L Patrol 6ARFSE D-4S (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
