- MR316053
- MR316054
- MR589033
- MR589034

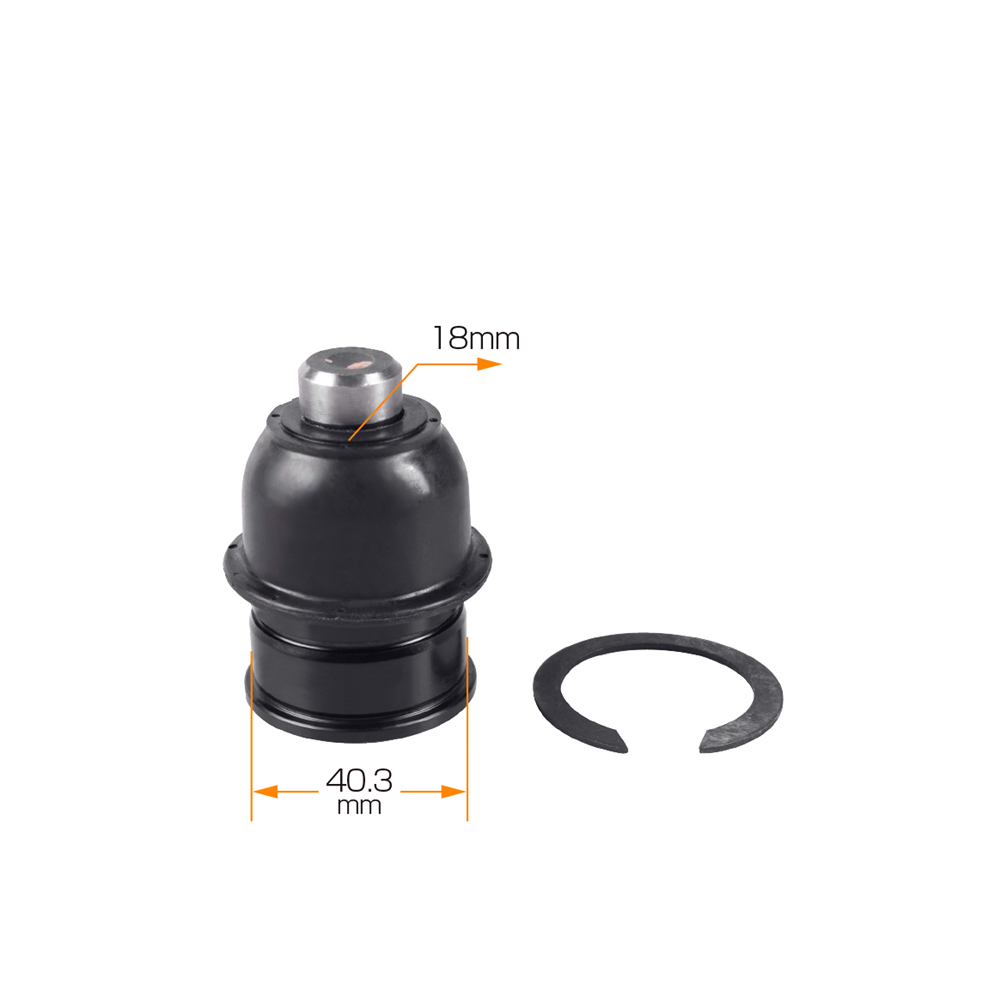

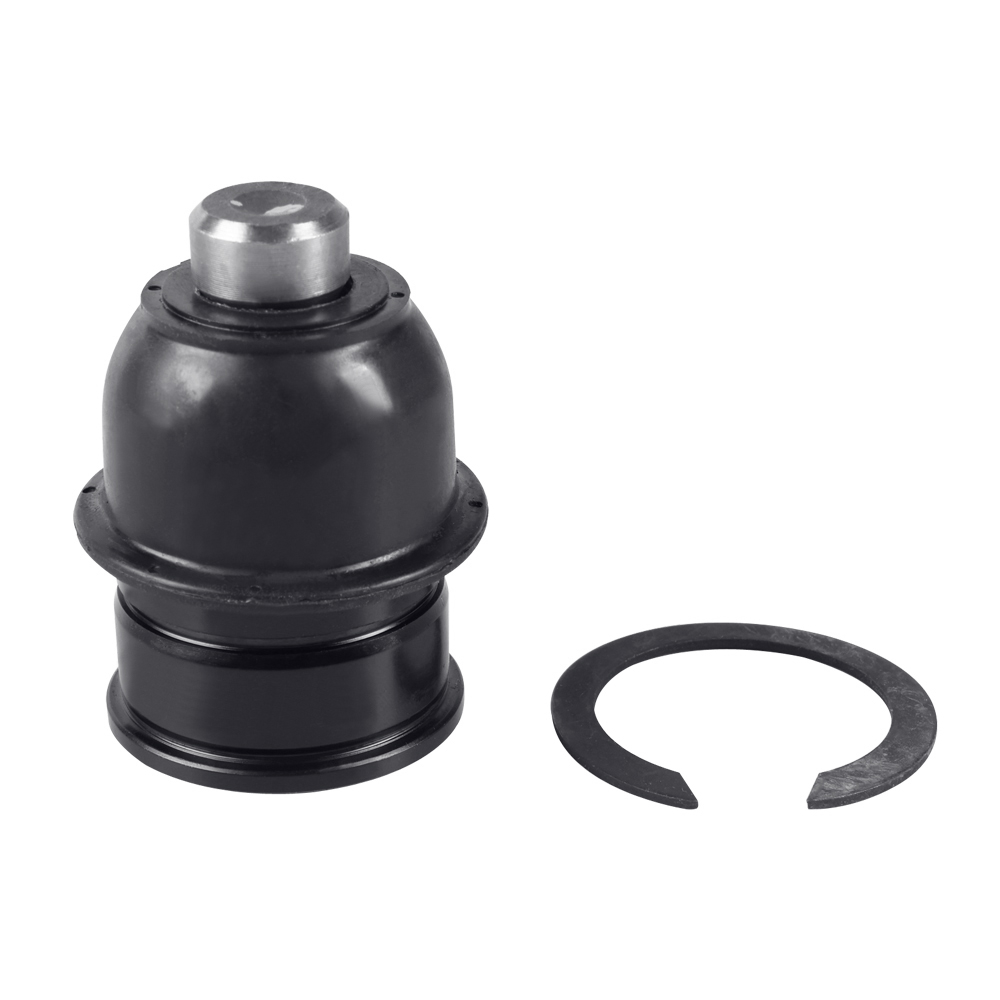

TOMOI ball joints use the most modern design — ball joints made of polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with a smooth glossy surface: wear-resistant, resistant to oxidation and staining, self-lubricating and oil-impermeable. It is characterized by high strength and dimensional stability.

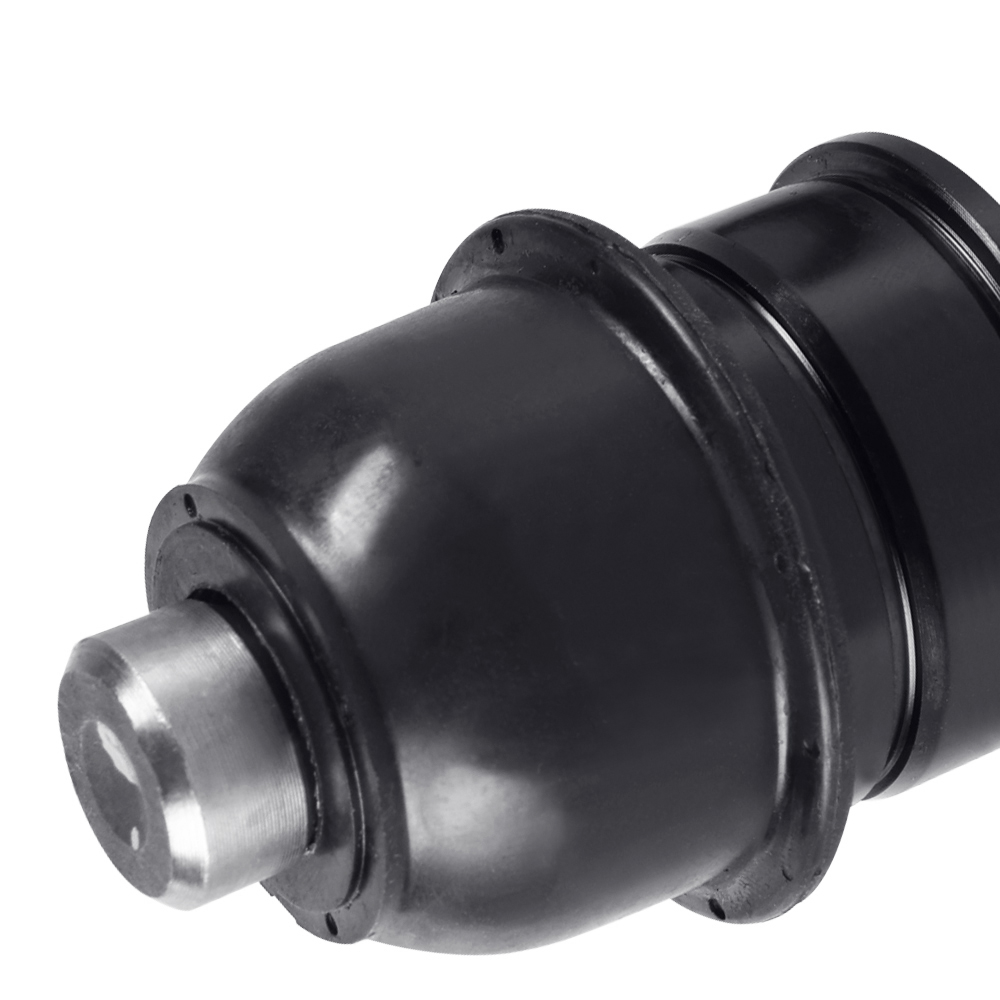

The metal parts of the ball joints are made of Cr40 alloy steel with mandatory hardening. A special mirror processing technology ensures the roughness of the ball pin surface is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The brand’s main specialization: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
Chassis No. | Year | Configuration |
---|---|---|
N84W | 1997.08-2001.04 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Front - wheel drive (2WD). RHD |
N84W | 1997.08-2001.04 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Front - wheel drive (2WD). RHD |
N94W | 1997.08-2001.04 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N94W | 1997.08-2001.04 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N84W | 1997.08-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Front - wheel drive (2WD). RHD |
N84W | 1997.08-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Front - wheel drive (2WD). RHD |
N94W | 1997.08-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N94W | 1997.08-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N84W | 2001.04-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Front - wheel drive (2WD). RHD |
N84W | 2001.04-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Front - wheel drive (2WD). RHD |
N94W | 2001.04-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N94W | 2001.04-2003.05 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
Chassis No. | Year | Configuration |
---|---|---|
N74WG | 1997.09-1999.08 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N74WG | 1997.09-1999.08 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N74WG | 1997.09-1999.09 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N74WG | 1997.09-1999.09 | 2.4L Patrol 4G64 GDI (165 hp / 121 kW) Four - wheel drive (4WD). RHD |
N73WG | 1997.09-2001.04 | 2.0L Patrol 4G63T MPI (230 hp / 169 kW) Four - wheel drive (4WD). RHD |
N73WG | 1997.09-2001.04 | 2.0L Patrol 4G63T MPI (230 hp / 169 kW) Four - wheel drive (4WD). RHD |
N73WG | 1997.09-2002.09 | 2.0L Patrol 4G63T MPI (230 hp / 169 kW) Four - wheel drive (4WD). RHD |
N73WG | 1997.09-2002.09 | 2.0L Patrol 4G63T MPI (230 hp / 169 kW) Four - wheel drive (4WD). RHD |
N73WG | 2001.04-2002.09 | 2.0L Patrol 4G63T MPI (230 hp / 169 kW) Four - wheel drive (4WD). RHD |
N73WG | 2001.04-2002.09 | 2.0L Patrol 4G63T MPI (230 hp / 169 kW) Four - wheel drive (4WD). RHD |
Chassis No. | Year | Configuration |
---|---|---|
N84W | 1998.07-2000.06 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2000.06 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2000.06 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2000.06 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2001.04 | 2.4L Patrol 4G64 GDI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2001.04 | 2.4L Patrol 4G64 GDI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N94W | 1998.07-2001.04 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Four - wheel drive (4WD). LHD |
N94W | 1998.07-2001.04 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Four - wheel drive (4WD). LHD |
N84W | 1998.07-2001.04 | 2.4L Patrol 4G64 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2001.04 | 2.4L Patrol 4G64 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2002.05 | 2.4L Patrol 4G64 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2002.05 | 2.4L Patrol 4G64 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2004.02 | 2.4L Patrol 4G64 GDI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N84W | 1998.07-2004.02 | 2.4L Patrol 4G64 GDI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N94W | 1998.07-2004.02 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Four - wheel drive (4WD). LHD |
N94W | 1998.07-2004.02 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Four - wheel drive (4WD). LHD |
N83W | 2000.06-2001.04 | 2.0L Patrol 4G63 MPI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N83W | 2000.06-2001.04 | 2.0L Patrol 4G63 MPI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N83W | 2000.06-2004.02 | 2.0L Patrol 4G63 MPI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N83W | 2000.06-2004.02 | 2.0L Patrol 4G63 MPI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N84W | 2001.04-2002.05 | 2.4L Patrol 4G64 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N84W | 2001.04-2002.05 | 2.4L Patrol 4G64 MPI (150 hp / 110 kW) Front - wheel drive (2WD). LHD |
N83W | 2001.04-2004.02 | 2.0L Patrol 4G63 MPI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N83W | 2001.04-2004.02 | 2.0L Patrol 4G63 MPI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N84W | 2001.04-2004.02 | 2.4L Patrol 4G64 GDI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N84W | 2001.04-2004.02 | 2.4L Patrol 4G64 GDI (147 hp / 108 kW) Front - wheel drive (2WD). LHD |
N94W | 2001.04-2004.02 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Four - wheel drive (4WD). LHD |
N94W | 2001.04-2004.02 | 2.4L Patrol 4G64 GDI (150 hp / 110 kW) Four - wheel drive (4WD). LHD |
