OEM List- 43330-39865
- 43330-09550
- 43330-39625

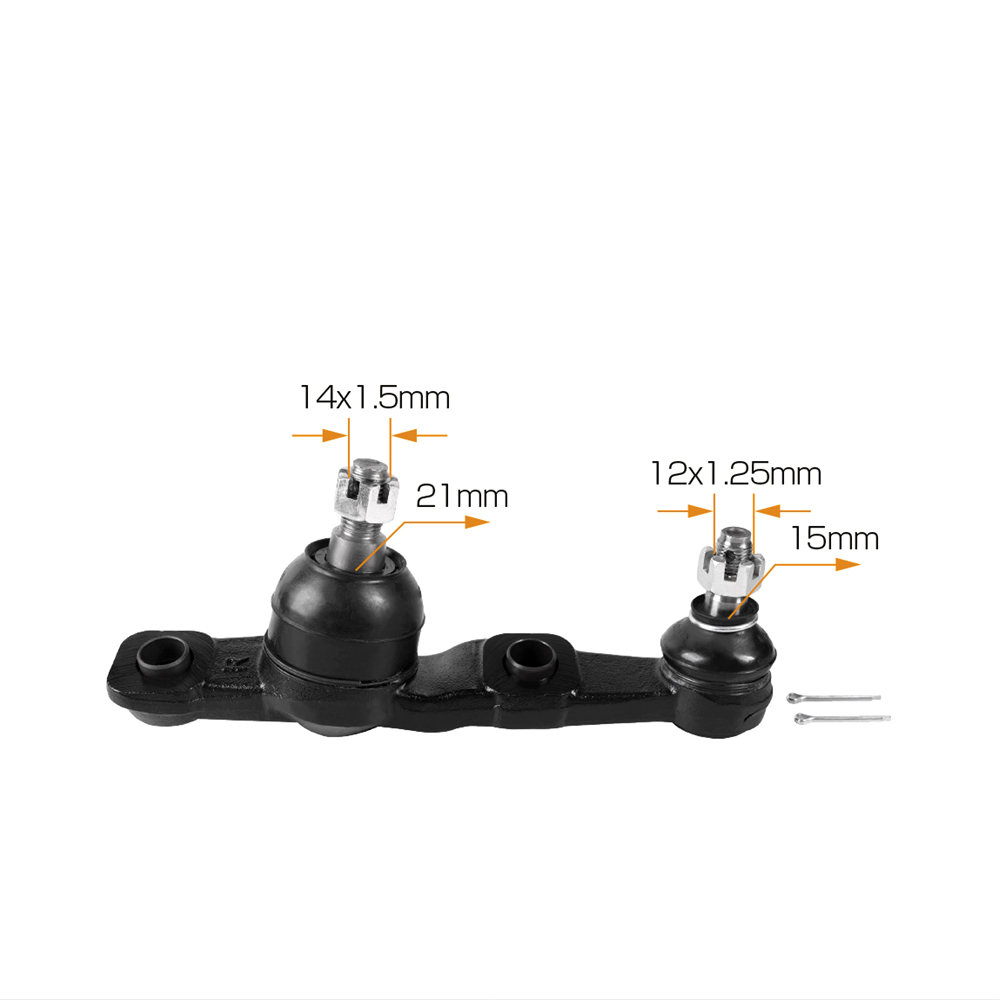

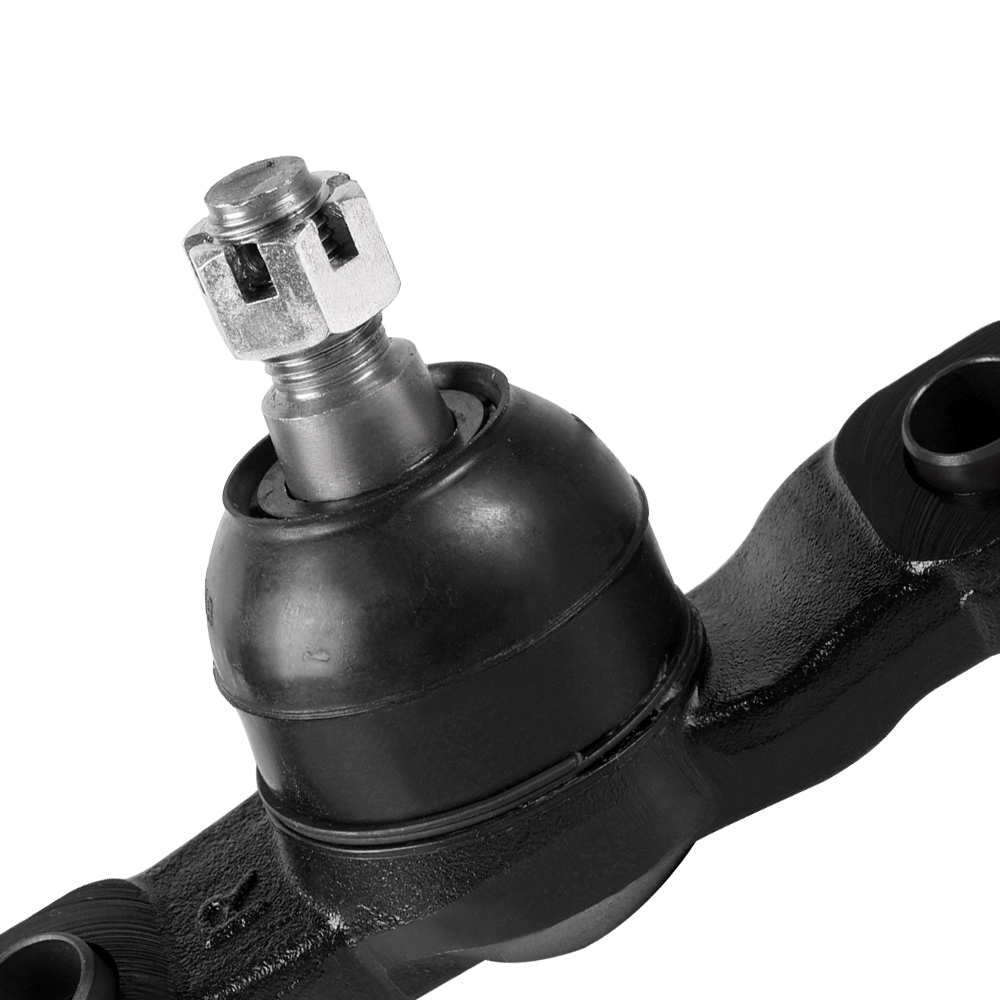

TOMOI ball joints use the most modern design — ball joints made of polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with a smooth glossy surface: wear-resistant, resistant to oxidation and staining, self-lubricating and oil-impermeable. It is characterized by high strength and dimensional stability.
The metal parts of the ball joints are made of Cr40 alloy steel with mandatory hardening. A special mirror processing technology ensures the roughness of the ball pin surface is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The brand’s main specialization: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
LEXUS
GS200T
Chassis No. | Year | Configuration |
---|
ARL10L | 2015.10-2018.09 | 2.0L Patrol 8ARFTS D-4S (245 hp / 180 kW) Rear - wheel drive. LHD |
GS250
Chassis No. | Year | Configuration |
---|
GRL11L | 2012.01-2015.10 | 2.5L Patrol 4GRFSE EFI (208 hp / 153 kW) Rear - wheel drive. LHD |
GRL11L | 2012.03-2015.10 | 2.5L Patrol 4GRFSE EFI (215 hp / 158 kW) Rear - wheel drive. LHD |
GS300
Chassis No. | Year | Configuration |
---|
GRS190L | 2005.01-2006.07 | 3.0L Patrol 3GRFSE EFI (249 hp / 183 kW) Rear - wheel drive. LHD |
GRS190L | 2005.01-2011.12 | 3.0L Patrol 3GRFSE EFI (249 hp / 183 kW) Rear - wheel drive. LHD |
GS350
Chassis No. | Year | Configuration |
---|
GRS191 | 2005.08-2011.12 | 3.5L Patrol 2GRFSE D-4S (316 hp / 232 kW) Rear - wheel drive. RHD |
GRS191L | 2006.07-2011.12 | 3.5L Patrol 2GRFSE EFI (316 hp / 232 kW) Rear - wheel drive. LHD |
GRL10L | 2011.12-2015.10 | 3.5L Patrol 2GRFSE EFI (310 hp / 228 kW) Rear - wheel drive. LHD |
GS430
Chassis No. | Year | Configuration |
---|
UZS190L | 2005.01-2007.09 | 4.3L Patrol 3UZFE EFI (294 hp / 216 kW) Rear - wheel drive. LHD |
UZS190L | 2005.01-2008.09 | 4.3L Patrol 3UZFE EFI (294 hp / 216 kW) Rear - wheel drive. LHD |
UZS190 | 2005.08-2007.09 | 4.3L Patrol 3UZFE EFI (294 hp / 216 kW) Rear - wheel drive. RHD |
GS450H
Chassis No. | Year | Configuration |
---|
GWS191 | 2006.02-2011.12 | 3.5L Patrol 2GRFSE D-4S (303 hp / 223 kW) Rear - wheel drive. RHD |
GWS191L | 2006.02-2011.12 | 3.5L Patrol 2GRFSE EFI (344 hp / 253 kW) Rear - wheel drive. LHD |
GWL10L | 2012.03-2018.09 | 3.5L Patrol 2GRFXE EFI (290 hp / 213 kW) Rear - wheel drive. LHD |
GS460
Chassis No. | Year | Configuration |
---|
URS190 | 2007.09-2011.12 | 4.6L Patrol 1URFSE D-4S (347 hp / 255 kW) Rear - wheel drive. RHD |
URS190L | 2007.09-2011.12 | 4.6L Patrol 1URFSE EFI (347 hp / 255 kW) Rear - wheel drive. LHD |
IS F
Chassis No. | Year | Configuration |
---|
USE20L | 2007.12-2014.08 | 5.0L Patrol 2URGSE D-4S (423 hp / 311 kW) Rear - wheel drive. LHD |
USE20 | 2007.12-2014.08 | 5.0L Patrol 2URGSE D-4S (423 hp / 311 kW) Rear - wheel drive. RHD |
IS250
Chassis No. | Year | Configuration |
---|
GSE20 | 2005.08-2013.04 | 2.5L Patrol 4GRFSE D-4 (215 hp / 158 kW) Rear - wheel drive. RHD |
GSE20L | 2005.08-2013.04 | 2.5L Patrol 4GRFSE EFI (215 hp / 158 kW) Rear - wheel drive. LHD |
GSE20L | 2005.09-2013.04 | 2.5L Patrol 4GRFSE EFI (208 hp / 153 kW) Rear - wheel drive. LHD |
GSE30L | 2013.04-2015.08 | 2.5L Patrol 4GRFSE D-4 (208 hp / 153 kW) Rear - wheel drive. LHD |
IS250C
Chassis No. | Year | Configuration |
---|
GSE20 | 2009.04-2014.08 | 2.5L Patrol 4GRFSE D-4 (215 hp / 158 kW) Rear - wheel drive. RHD |
GSE20L | 2009.04-2015.07 | 2.5L Patrol 4GRFSE EFI (208 hp / 153 kW) Rear - wheel drive. LHD |
GSE20L | 2009.04-2015.07 | 2.5L Patrol 4GRFSE EFI (215 hp / 158 kW) Rear - wheel drive. LHD |
IS350
Chassis No. | Year | Configuration |
---|
GSE21 | 2005.08-2013.04 | 3.5L Patrol 2GRFSE D-4S (318 hp / 234 kW) Rear - wheel drive. RHD |
GSE21L | 2005.08-2013.04 | 3.5L Patrol 2GRFSE EFI (310 hp / 228 kW) Rear - wheel drive. LHD |
GSE31L | 2013.04-2021.12 | 3.5L Patrol 2GRFSE D-4S (318 hp / 234 kW) Rear - wheel drive. LHD |
IS350C
Chassis No. | Year | Configuration |
---|
GSE21L | 2009.04-2015.07 | 3.5L Patrol 2GRFSE EFI (310 hp / 228 kW) Rear - wheel drive. LHD |
GSE21 | 2010.08-2014.08 | 3.5L Patrol 2GRFSE D-4S (310 hp / 228 kW) Rear - wheel drive. RHD |
RC200T
Chassis No. | Year | Configuration |
---|
ASC10L | 2015.10-2020.08 | 2.0L Patrol 8ARFTS D-4S (245 hp / 180 kW) Rear - wheel drive. LHD |
RC300H
Chassis No. | Year | Configuration |
---|
AVC10L | 2015.10-2020.08 | 2.5L Patrol 2ARFSE D-4 (245 hp / 180 kW) Rear - wheel drive. LHD |
RC350
Chassis No. | Year | Configuration |
---|
GSC10L | 2014.09-... | 3.5L Patrol 2GRFSE EFI (318 hp / 234 kW) Front - wheel drive (2WD). LHD |
GSC10L | 2014.09-2017.11 | 3.5L Patrol 2GRFSE EFI (258 hp / 190 kW) Front - wheel drive (2WD). LHD |
TOYOTA
CROWN
Chassis No. | Year | Configuration |
---|
GRS180 | 2003.12-2008.02 | 2.5L Patrol 4GRFSE D-4 (215 hp / 158 kW) Rear - wheel drive. RHD |
GRS182 | 2003.12-2008.02 | 3.0L Patrol 3GRFSE (256 hp / 188 kW) Rear - wheel drive. RHD |
GRS184 | 2005.09-2008.02 | 3.5L Patrol 2GRFSE D-4 (315 hp / 232 kW) Rear - wheel drive. RHD |
GRS200 | 2008.02-2012.12 | 2.5L Patrol 4GRFSE D-4 (203 hp / 149 kW) Rear - wheel drive. RHD |
GRS202 | 2008.02-2012.12 | 3.0L Patrol 3GRFSE (256 hp / 188 kW) Rear - wheel drive. RHD |
GRS204 | 2008.02-2012.12 | 3.5L Patrol 2GRFSE D-4 (360 hp / 265 kW) Rear - wheel drive. RHD |
GWS204 | 2008.05-2012.12 | 3.5L Patrol 2GRFSE D-4 (296 hp / 218 kW) Rear - wheel drive. RHD HYBRID |
AWS210 | 2012.12-2018.05 | 2.5L Patrol 2ARFSE D-4 Rear - wheel drive. RHD |
GRS210 | 2012.12-2018.05 | 2.5L Patrol 4GRFSE D-4 Rear - wheel drive. RHD |
GRS214 | 2012.12-2018.05 | 3.5L Patrol 2GRFSE D-4 Rear - wheel drive. RHD |
ARS210 | 2015.09-2018.05 | 2.0L Patrol 8ARFTS D-4S (235 hp / 173 kW) Rear - wheel drive. RHD |
CROWN MAJESTA
Chassis No. | Year | Configuration |
---|
UZS186 | 2004.06-2008.12 | 4.3L Patrol 3UZFE EFI (280 hp / 206 kW) Rear - wheel drive. RHD |
URS206 | 2009.03-2013.07 | 4.6L Patrol 1URFSE D-4S (347 hp / 255 kW) Rear - wheel drive. RHD |
GWS214 | 2013.09-2018.05 | 3.5L Patrol 2GRFXE EFI (292 hp / 215 kW) Rear - wheel drive. RHD |
MARK X
Chassis No. | Year | Configuration |
---|
GRX120 | 2004.11-2009.09 | 2.5L Patrol 4GRFSE D-4 (215 hp / 158 kW) Rear - wheel drive. RHD |
GRX121 | 2004.11-2009.09 | 3.0L Patrol 3GRFSE D-4 (256 hp / 188 kW) Rear - wheel drive. RHD |
GRX130 | 2009.10-2019.12 | 2.5L Patrol 4GRFSE D-4 Rear - wheel drive. RHD |
GRX133 | 2009.10-2019.12 | 3.5L Patrol 2GRFSE D-4 Rear - wheel drive. RHD |
