OEM List- 43330-49165
- 43330-09780
- 43330-09800
- 43330-49125

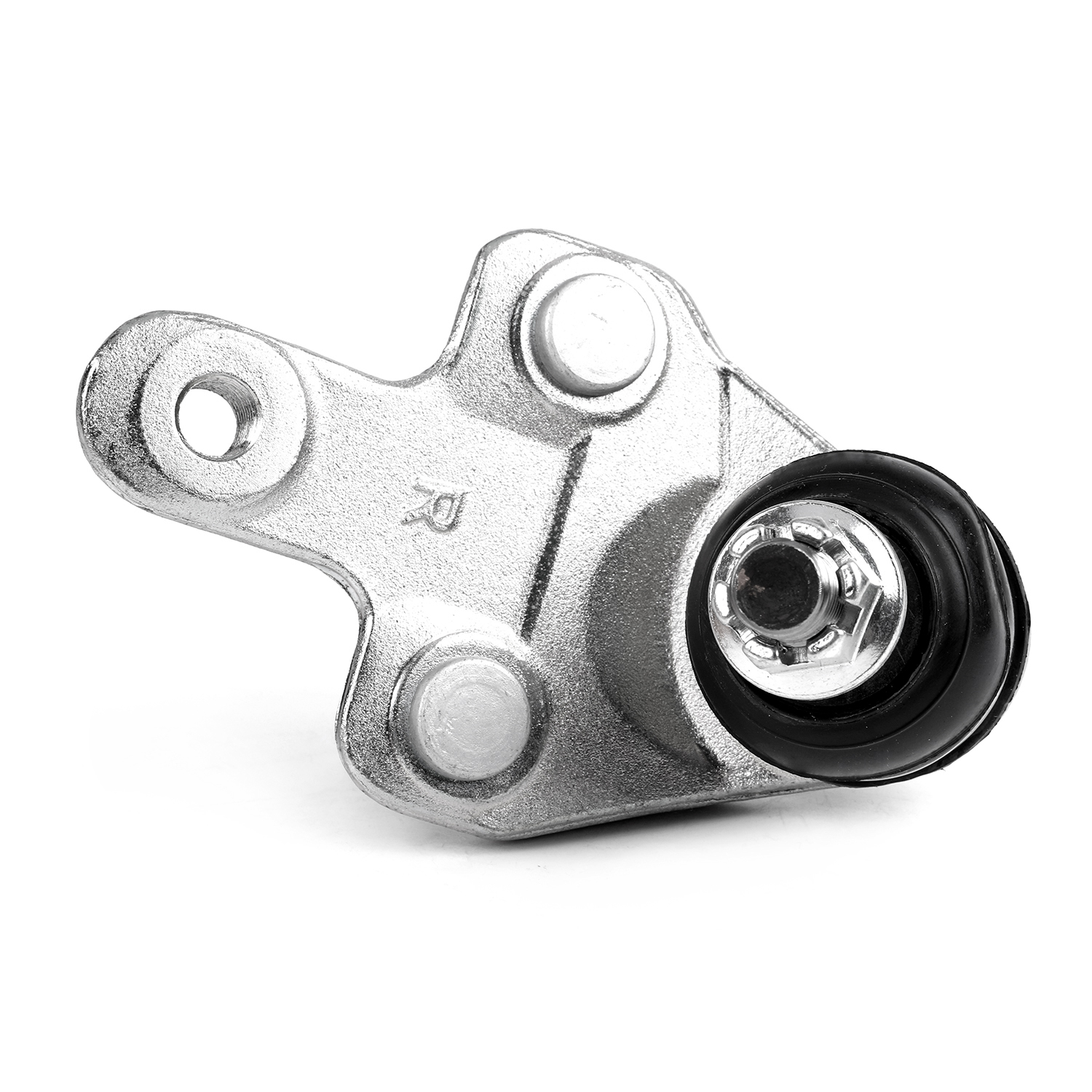

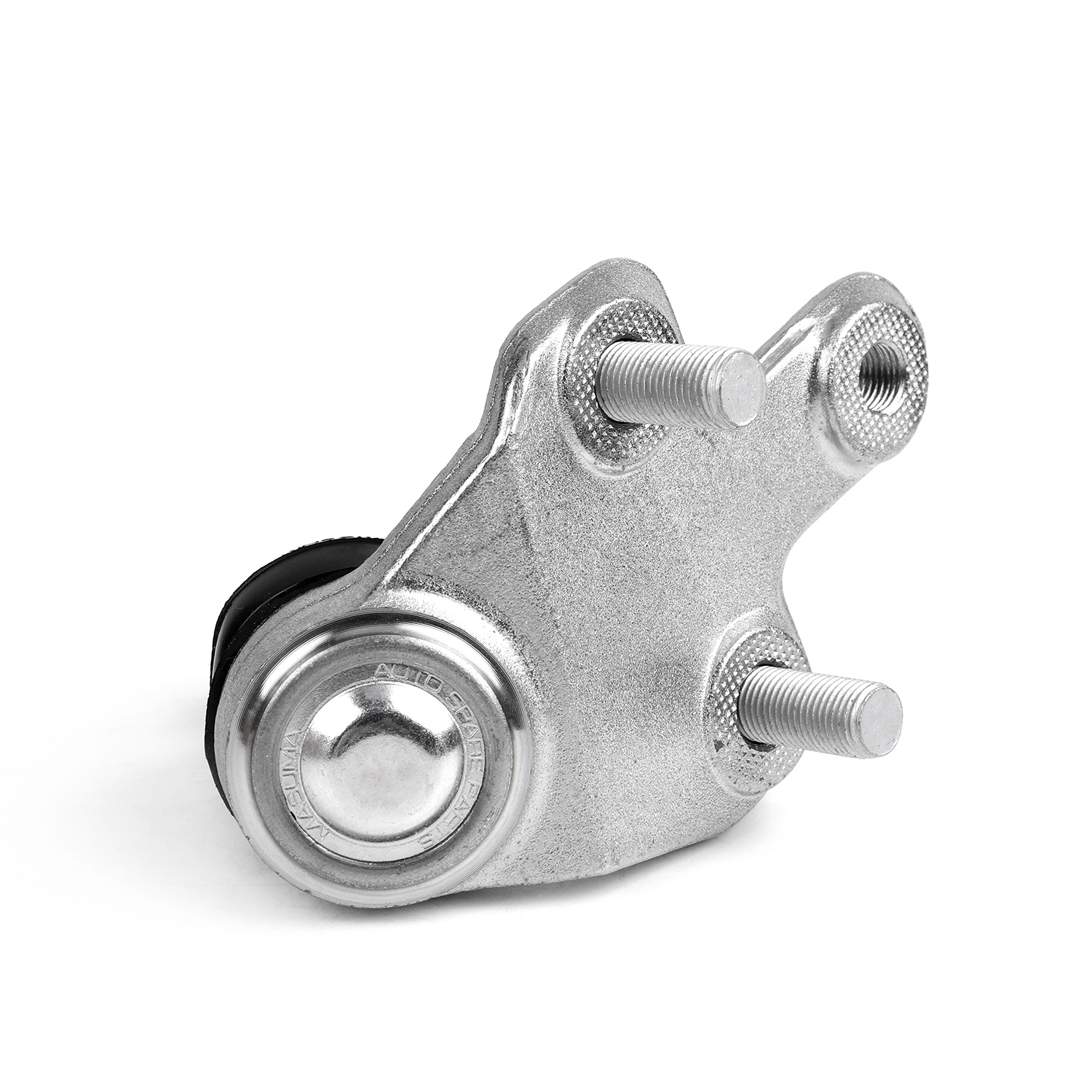

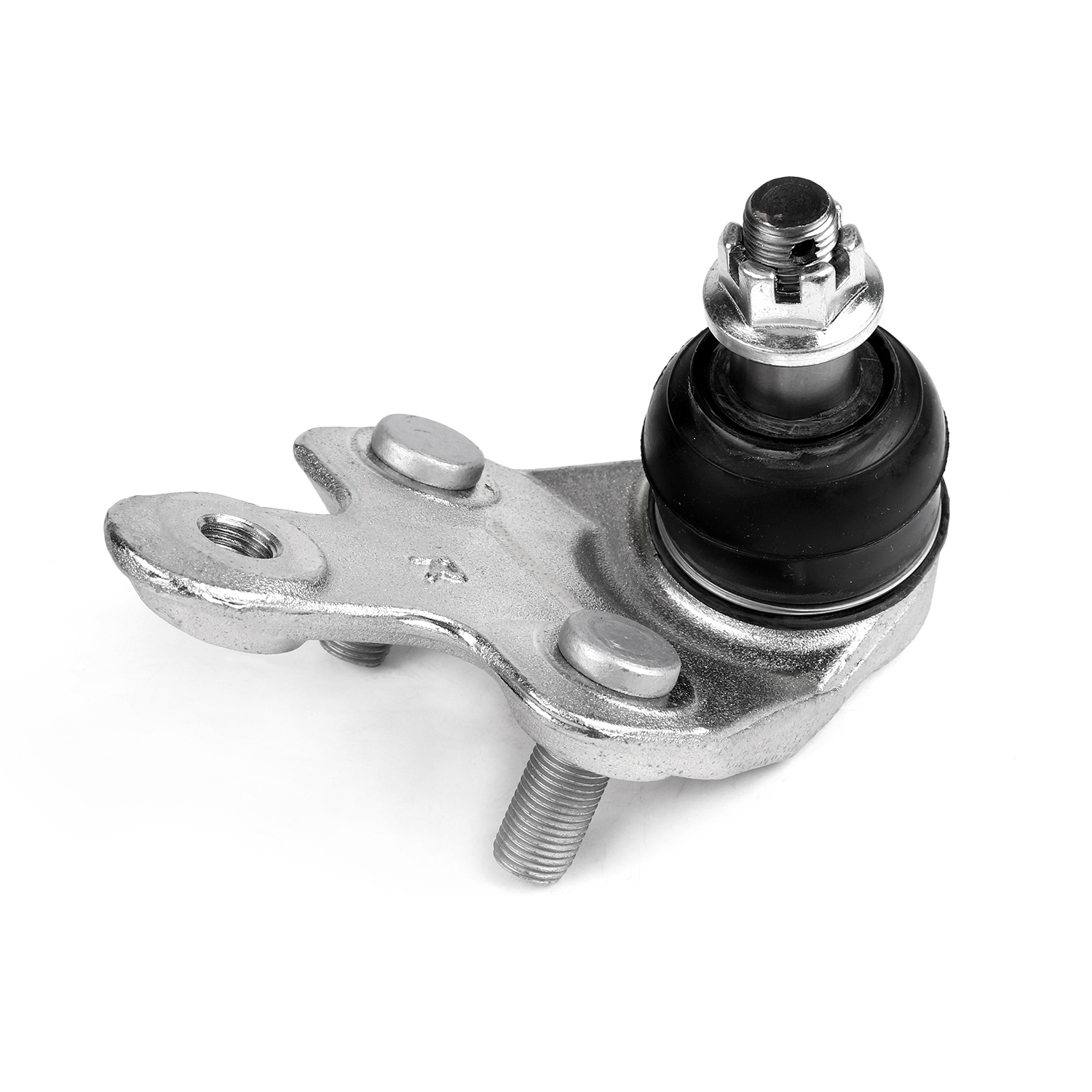

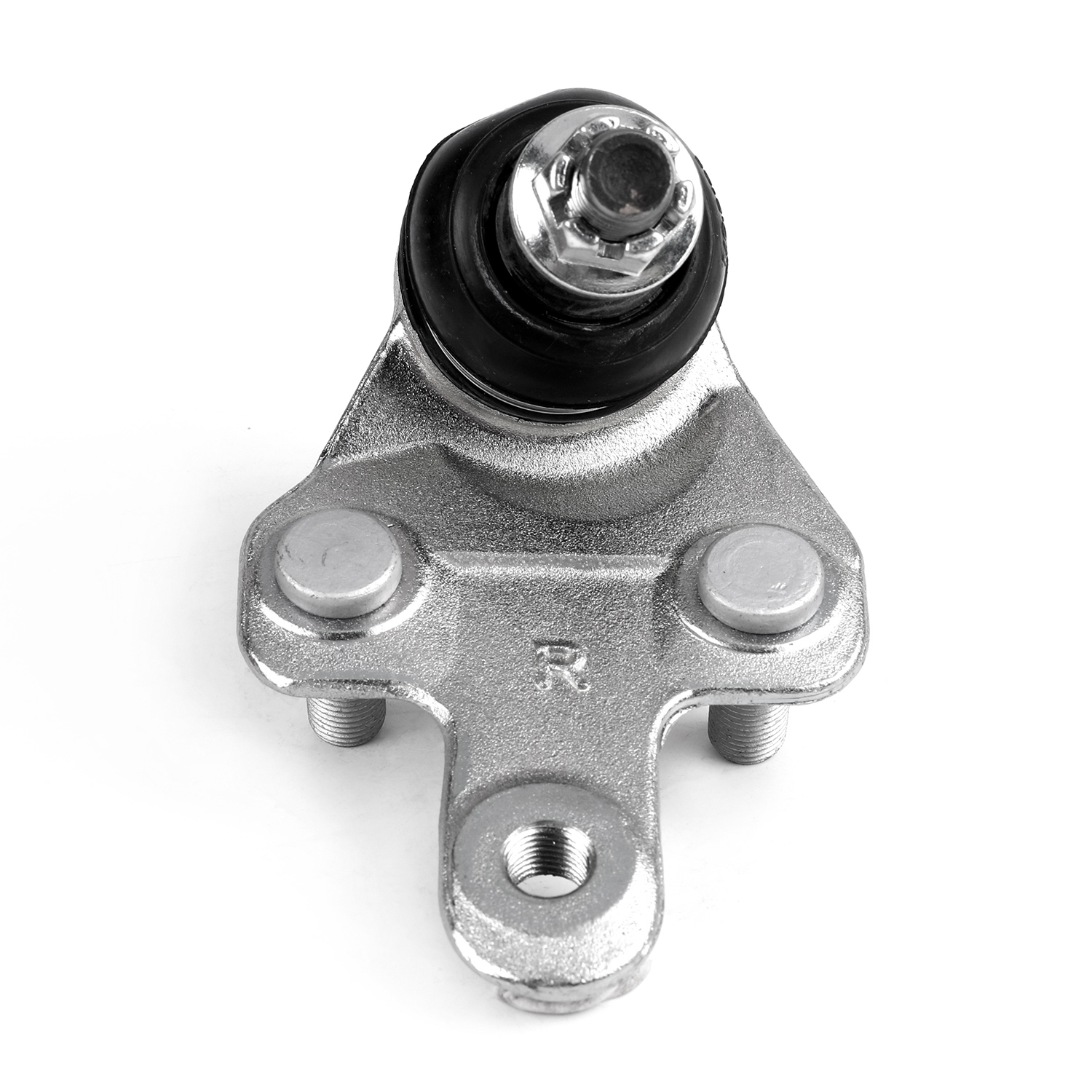

TOMOI ball joints use the most modern design — ball joints made of polyoxymethylene polymer (POM 500P). This is a highly crystalline polymer with a smooth glossy surface: wear-resistant, resistant to oxidation and staining, self-lubricating and oil-impermeable. It is characterized by high strength and dimensional stability.
The metal parts of the ball joints are made of Cr40 alloy steel with mandatory hardening. A special mirror processing technology ensures the roughness of the ball pin surface is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The brand’s main specialization: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
LEXUS
RX200T
Chassis No. | Year | Configuration |
---|
AGL20L | 2015.09-2017.12 | 2.0L Patrol 8ARFTS D-4S (238 hp / 175 kW) Front - wheel drive (2WD). LHD |
AGL25L | 2015.09-2017.12 | 2.0L Patrol 8ARFTS D-4S (238 hp / 175 kW) Four - wheel drive (4WD). LHD |
RX270
Chassis No. | Year | Configuration |
---|
AGL10L | 2010.08-2015.09 | 2.7L Patrol 1ARFE EFI (188 hp / 138 kW) Front - wheel drive (2WD). LHD |
AGL10W | 2010.08-2015.10 | 2.7L Patrol 1ARFE EFI (188 hp / 138 kW) Front - wheel drive (2WD). RHD |
RX300
Chassis No. | Year | Configuration |
---|
AGL20L | 2017.12-... | 2.0L Patrol 8ARFTS D-4S (238 hp / 175 kW) Front - wheel drive (2WD). LHD |
AGL20L | 2017.12-2022.12 | 2.0L Patrol 8ARFTS D-4S (238 hp / 175 kW) Front - wheel drive (2WD). LHD |
AGL25L | 2017.12-2022.12 | 2.0L Patrol 8ARFTS D-4S (238 hp / 175 kW) Four - wheel drive (4WD). LHD |
RX350
Chassis No. | Year | Configuration |
---|
GGL16W | 2008.12-2012.03 | 3.5L Patrol 2GRFE EFI (276 hp / 203 kW) Four - wheel drive (4WD). RHD |
GGL15L | 2008.12-2015.09 | 3.5L Patrol 2GRFE EFI (249 hp / 183 kW) Four - wheel drive (4WD). LHD |
GGL10L | 2008.12-2015.09 | 3.5L Patrol 2GRFE EFI (277 hp / 204 kW) Front - wheel drive (2WD). LHD |
GGL15L (JPP) | 2008.12-2015.09 | 3.5L Patrol 2GRFE EFI (280 hp / 206 kW) Four - wheel drive (4WD). LHD |
GGL15W | 2008.12-2015.10 | 3.5L Patrol 2GRFE EFI (273 hp / 201 kW) Four - wheel drive (4WD). RHD |
GGL10W | 2008.12-2015.10 | 3.5L Patrol 2GRFE EFI (276 hp / 203 kW) Front - wheel drive (2WD). RHD |
GGL10L | 2009.01-2015.10 | 3.5L Patrol 2GRFE EFI (280 hp / 206 kW) Front - wheel drive (2WD). LHD |
GGL15L (NAP) | 2009.01-2015.10 | 3.5L Patrol 2GRFE EFI (280 hp / 206 kW) Four - wheel drive (4WD). LHD |
GGL15L (JPP) | 2009.03-2015.09 | 3.5L Patrol 2GRFE EFI (280 hp / 206 kW) Four - wheel drive (4WD). LHD |
GGL25L | 2015.09-... | 3.5L Patrol 2GRFKS D-4S (294 hp / 216 kW) Four - wheel drive (4WD). LHD |
GGL25L | 2015.09-... | 3.5L Patrol 2GRFKS D-4S (300 hp / 221 kW) Four - wheel drive (4WD). LHD |
GGL25L | 2015.10-... | 3.5L Patrol 2GRFKS D-4S (300 hp / 221 kW) Four - wheel drive (4WD). LHD |
RX350L
Chassis No. | Year | Configuration |
---|
GGL26L | 2017.12-... | 3.5L Patrol 2GRFKS D-4S (300 hp / 221 kW) Four - wheel drive (4WD). LHD |
RX450H
Chassis No. | Year | Configuration |
---|
GYL15L | 2009.03-2015.09 | 3.5L Patrol 2GRFXE EFI (249 hp / 183 kW) Four - wheel drive (4WD). LHD |
GYL15L | 2009.03-2015.09 | 3.5L Patrol 2GRFXE EFI (277 hp / 204 kW) Four - wheel drive (4WD). LHD |
GYL10L | 2009.03-2015.09 | 3.5L Patrol 2GRFXE EFI (280 hp / 206 kW) Front - wheel drive (2WD). LHD |
GYL15W | 2009.03-2015.10 | 3.5L Patrol 2GRFXE EFI (293 hp / 216 kW) Four - wheel drive (4WD). RHD |
GYL16W | 2009.03-2015.10 | 3.5L Patrol 2GRFXE EFI (293 hp / 216 kW) Four - wheel drive (4WD). RHD |
GYL10L | 2009.10-2015.09 | 3.5L Patrol 2GRFXE EFI (249 hp / 183 kW) Front - wheel drive (2WD). LHD |
GYL10W | 2009.10-2015.10 | 3.5L Patrol 2GRFXE EFI (293 hp / 216 kW) Front - wheel drive (2WD). RHD |
GYL25L | 2015.10-... | 3.5L Patrol 2GRFXS D-4S (262 hp / 193 kW) Four - wheel drive (4WD). LHD |
TOYOTA
HIGHLANDER
Chassis No. | Year | Configuration |
---|
GSU40L | 2007.05-2008.12 | 3.5L Patrol 2GRFE EFI (270 hp / 199 kW) Front - wheel drive (2WD). LHD |
GSU45L | 2007.05-2008.12 | 3.5L Patrol 2GRFE EFI (270 hp / 199 kW) Four - wheel drive (4WD). LHD |
MHU48L | 2007.08-2008.12 | 3.3L Patrol 3MZFE EFI (208 hp / 153 kW) Four - wheel drive (4WD). LHD |
ASU40L | 2008.11-2008.12 | 2.7L Patrol 1ARFE EFI (187 hp / 138 kW) Front - wheel drive (2WD). LHD |
ASU40L | 2008.12-2010.07 | 2.7L Patrol 1ARFE EFI (187 hp / 138 kW) Front - wheel drive (2WD). LHD |
GSU40L | 2008.12-2010.07 | 3.5L Patrol 2GRFE EFI (270 hp / 199 kW) Front - wheel drive (2WD). LHD |
GSU45L | 2008.12-2010.07 | 3.5L Patrol 2GRFE EFI (270 hp / 199 kW) Four - wheel drive (4WD). LHD |
MHU48L | 2008.12-2010.08 | 3.3L Patrol 3MZFE EFI (208 hp / 153 kW) Four - wheel drive (4WD). LHD |
GSU45L. RUS | 2010.07-2013.12 | 3.5L Patrol 2GRFE EFI (273 hp / 201 kW) Four - wheel drive (4WD). LHD |
GVU48L | 2010.08-2014.02 | 3.5L Patrol 2GRFXE EFI (231 hp / 170 kW) Four - wheel drive (4WD). LHD |
GSU55L. RUS | 2013.12-2016.11 | 3.5L Patrol 2GRFE EFI (249 hp / 183 kW) Four - wheel drive (4WD). LHD |
ASU50L. RUS | 2013.12-2019.11 | 2.7L Patrol 1ARFE EFI (188 hp / 138 kW) Front - wheel drive (2WD). LHD |
GSU55L. RUS | 2016.11-2019.11 | 3.5L Patrol 2GRFKS D-4S (249 hp / 183 kW) Four - wheel drive (4WD). LHD |
SIENNA
Chassis No. | Year | Configuration |
---|
GSL30L | 2010.01-2016.08 | 3.5L Patrol 2GRFE EFI (266 hp / 196 kW) Front - wheel drive (2WD). LHD |
GSL33L | 2010.01-2016.08 | 3.5L Patrol 2GRFE EFI (266 hp / 196 kW) Front - wheel drive (2WD). LHD |
GSL35L | 2010.01-2016.08 | 3.5L Patrol 2GRFE EFI (266 hp / 196 kW) Four - wheel drive (4WD). LHD |
ASL30L | 2010.05-2013.08 | 2.7L Patrol 1ARFE EFI (187 hp / 138 kW) Front - wheel drive (2WD). LHD |
GSL30L | 2016.08-2020.05 | 3.5L Patrol 2GRFKS D-4S (318 hp / 234 kW) Front - wheel drive (2WD). LHD |
GSL35L | 2016.08-2020.05 | 3.5L Patrol 2GRFKS D-4S (318 hp / 234 kW) Four - wheel drive (4WD). LHD |
VENZA
Chassis No. | Year | Configuration |
---|
AGV10L | 2013.03-2015.06 | 2.7L Patrol 1ARFE EFI (185 hp / 136 kW) Front - wheel drive (2WD). LHD |
AGV15L | 2013.03-2015.06 | 2.7L Patrol 1ARFE EFI (185 hp / 136 kW) Four - wheel drive (4WD). LHD |
