OEM List
- GS1D-34-150

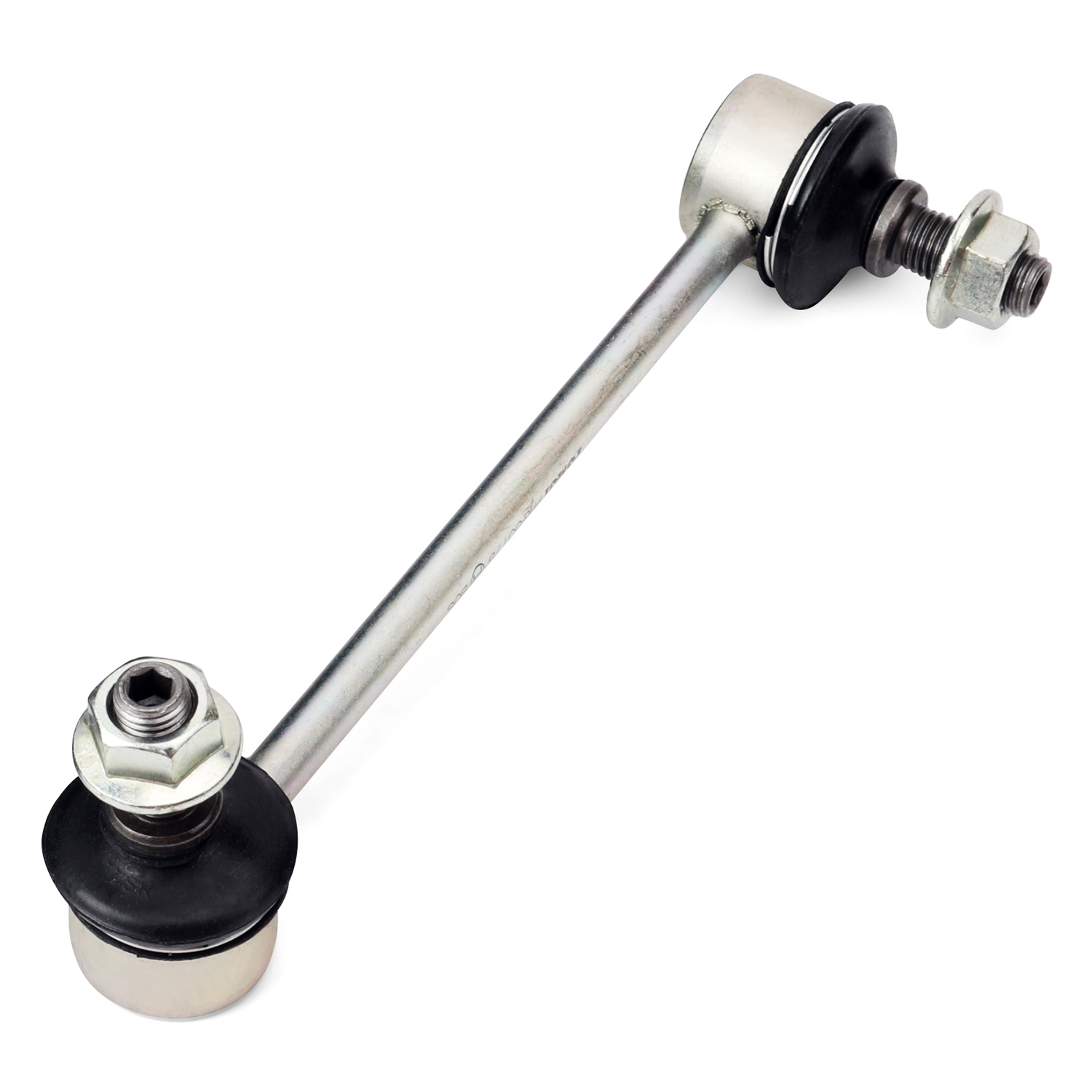

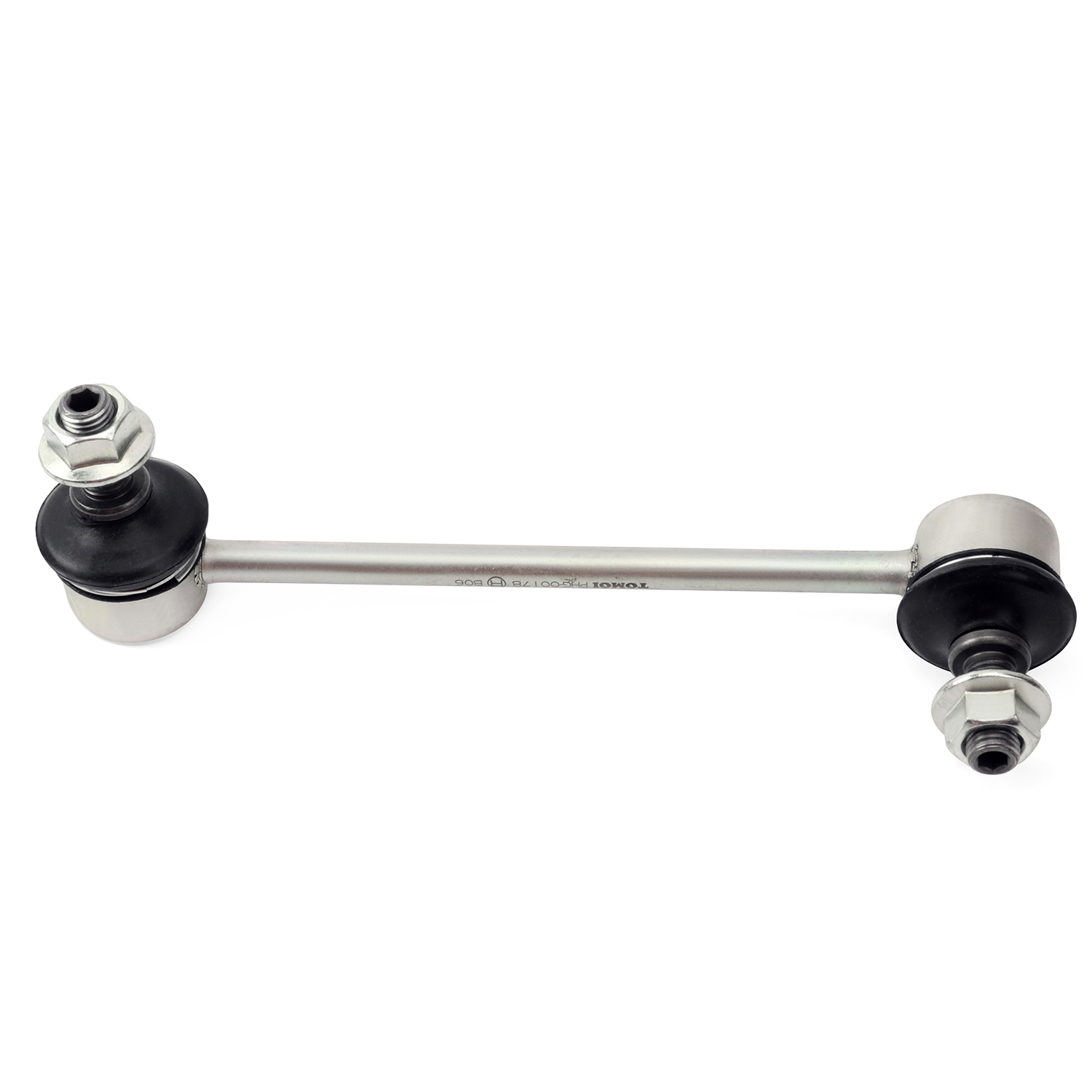

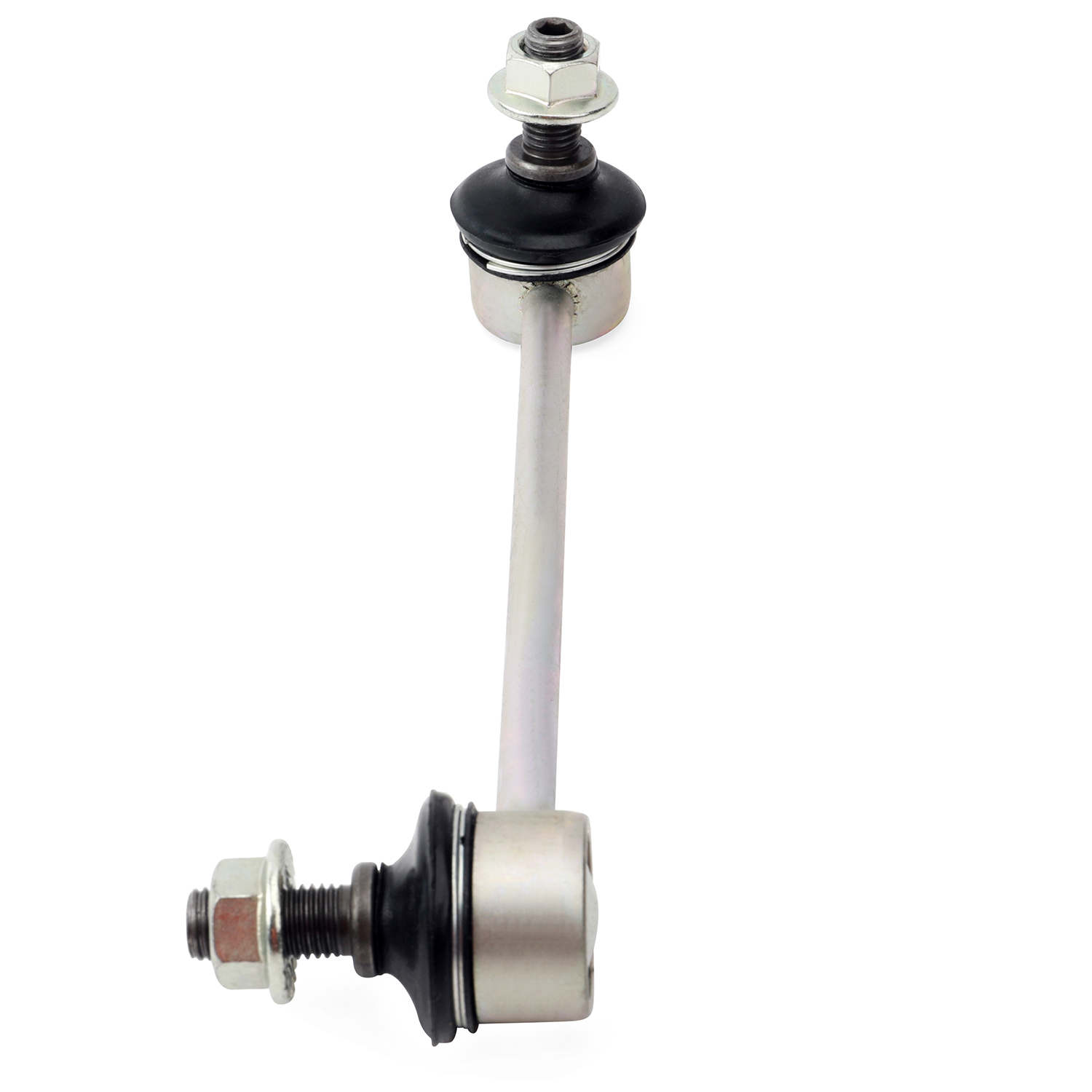

TOMOI stabilizer struts (links) are distinguished by the high strength of the ball joint. This is due to a special pressing method during manufacturing – with the filling of the ball joint with polyoxymethylene polymer (POM 500P). A special mirror processing technology ensures the roughness of the ball pin surface of no more than 0.4 microns, which significantly increases the service life of the joint.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
MAZDA
ATENZA
| Chassis No. | Year | Configuration |
|---|---|---|
| GHEFP. LF-VE. | 2008.01-2010.01 | 2.0L Patrol LF-VE EGI (139 hp / 102 kW) Front - wheel drive (2WD). RHD |
| GH5FP. L5-VE. | 2008.01-2012.11 | 2.5L Patrol L5-VE EGI (160 hp / 118 kW) Front - wheel drive (2WD). RHD |
| GH5AP. L5-VE | 2008.01-2012.11 | 2.5L Patrol L5-VE EGI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
ATENZA SPORT
| Chassis No. | Year | Configuration |
|---|---|---|
| GHEFS. LF-VE. | 2008.01-2010.01 | 2.0L Patrol LF-VE EGI (139 hp / 102 kW) Front - wheel drive (2WD). RHD |
| GH5FS. L5-VE. | 2008.01-2012.11 | 2.5L Patrol L5-VE EGI (160 hp / 118 kW) Front - wheel drive (2WD). RHD |
| GH5AS. L5-VE. | 2008.01-2012.11 | 2.5L Patrol L5-VE EGI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
ATENZA SPORT WAGON
| Chassis No. | Year | Configuration |
|---|---|---|
| GHEFW. LF-VE. | 2008.01-2010.01 | 2.0L Patrol LF-VE EGI (139 hp / 102 kW) Front - wheel drive (2WD). RHD |
| GH5FW. L5-VE. | 2008.01-2012.11 | 2.5L Patrol L5-VE EGI (160 hp / 118 kW) Front - wheel drive (2WD). RHD |
| GH5AW. L5-VE. | 2008.01-2012.11 | 2.5L Patrol L5-VE EGI (160 hp / 118 kW) Four - wheel drive (4WD). RHD |
MAZDA 6
| Chassis No. | Year | Configuration |
|---|---|---|
| GH1#. 1800cc. SEDAN. L8-DE. Euro. | 2007.08-2009.11 | 1.8L Patrol L8-DE EGI (120 hp / 88 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. SEDAN. LF-VE. Euro. | 2007.08-2009.12 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2500cc. SEDAN. L5-VE. Euro. | 2007.08-2009.12 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH1#. 1800cc. LIFTBACK. L8-DE. Euro. | 2007.10-2009.11 | 1.8L Patrol L8-DE EGI (120 hp / 88 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. LIFTBACK. LF-VE. Euro. | 2007.10-2009.12 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2500cc. LIFTBACK. L5-VE. Euro. | 2007.10-2009.12 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. RF-T. Turbo. Диз. Euro. | 2007.11-2010.02 | 2.0L Diesel RF-T (101 hp / 104 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. RF-T. Turbo. Диз. Euro. | 2007.11-2010.02 | 2.0L Diesel RF-T (110 hp / 81 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. GCC. | 2007.12-2010.01 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. GCC. | 2007.12-2010.01 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. General. | 2007.12-2010.01 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. Taiwan. | 2007.12-2010.01 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. GCC. | 2007.12-2010.01 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. GCC. | 2007.12-2010.01 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. Taiwan. | 2007.12-2010.01 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. Taiwan. | 2007.12-2010.01 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2200cc. R2. Turbo. Диз. Euro. | 2008.10-2010.02 | 2.2L Diesel R2 (163 hp / 120 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2200cc. R2. Turbo. Диз. Euro. | 2008.10-2010.02 | 2.2L Diesel R2 (180 hp / 132 kW) Front - wheel drive (2WD). LHD |
| GH1#. 1800cc. SEDAN. L8-DE. Euro. | 2009.11-2012.07 | 1.8L Patrol L8-DE EGI (120 hp / 88 kW) Front - wheel drive (2WD). LHD |
| GH1#. 1800cc. LIFTBACK. L8-DE. Euro. | 2009.11-2012.07 | 1.8L Patrol L8-DE EGI (120 hp / 88 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. LIFTBACK. LF-VE. Rus. | 2009.11-2012.07 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. SEDAN. LF-VE. Rus. | 2009.11-2012.07 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. LIFTBACK. LF-VE. Euro. | 2009.12-2012.07 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. SEDAN. LF-VE. Euro. | 2009.12-2012.07 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2500cc. SEDAN. L5-VE. Euro. | 2009.12-2012.07 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2500cc. LIFTBACK. L5-VE. Euro. | 2009.12-2012.07 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. General. | 2010.01-2012.10 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. GCC. | 2010.01-2012.10 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. Taiwan. | 2010.01-2012.10 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. Taiwan. | 2010.01-2012.10 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. GCC. | 2010.01-2012.10 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. GCC. | 2010.01-2012.10 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2200cc. R2. Turbo. Диз. Euro. | 2010.02-2012.07 | 2.2L Diesel R2 (163 hp / 120 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2200cc. R2. Turbo. Диз. Euro. | 2010.02-2012.07 | 2.2L Diesel R2 (180 hp / 132 kW) Front - wheel drive (2WD). LHD |
MAZDA 6 WAGON
| Chassis No. | Year | Configuration |
|---|---|---|
| GH1#. 1800cc. L8-DE. Euro. | 2007.12-2009.12 | 1.8L Patrol L8-DE EGI (120 hp / 88 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. LF-VE. Euro. | 2007.12-2009.12 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. RF-T. Turbo. Диз. Euro. | 2007.12-2009.12 | 2.0L Diesel RF-T (101 hp / 104 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2500cc. L5-VE. Euro. | 2007.12-2009.12 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH#. 2000cc. LF-VE. GCC. | 2007.12-2012.08 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH#. 2500cc. L5-VE. Taiwan. | 2007.12-2012.08 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2200cc. R2. Turbo. Диз. Euro. | 2008.10-2010.02 | 2.2L Diesel R2 (163 hp / 120 kW) Front - wheel drive (2WD). LHD |
| GH1#. 1800cc. L8-DE. Euro. | 2009.12-2012.07 | 1.8L Patrol L8-DE EGI (120 hp / 88 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. LF-VE. Euro. | 2009.12-2012.07 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2000cc. LF-VE. Rus. | 2009.12-2012.07 | 2.0L Patrol LF-VE EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2500cc. L5-VE. Euro. | 2009.12-2012.07 | 2.5L Patrol L5-VE EGI (170 hp / 125 kW) Front - wheel drive (2WD). LHD |
| GH1#. 2200cc. R2. Turbo. Диз. Euro. | 2010.02-2012.07 | 2.2L Diesel R2 (180 hp / 132 kW) Front - wheel drive (2WD). LHD |
