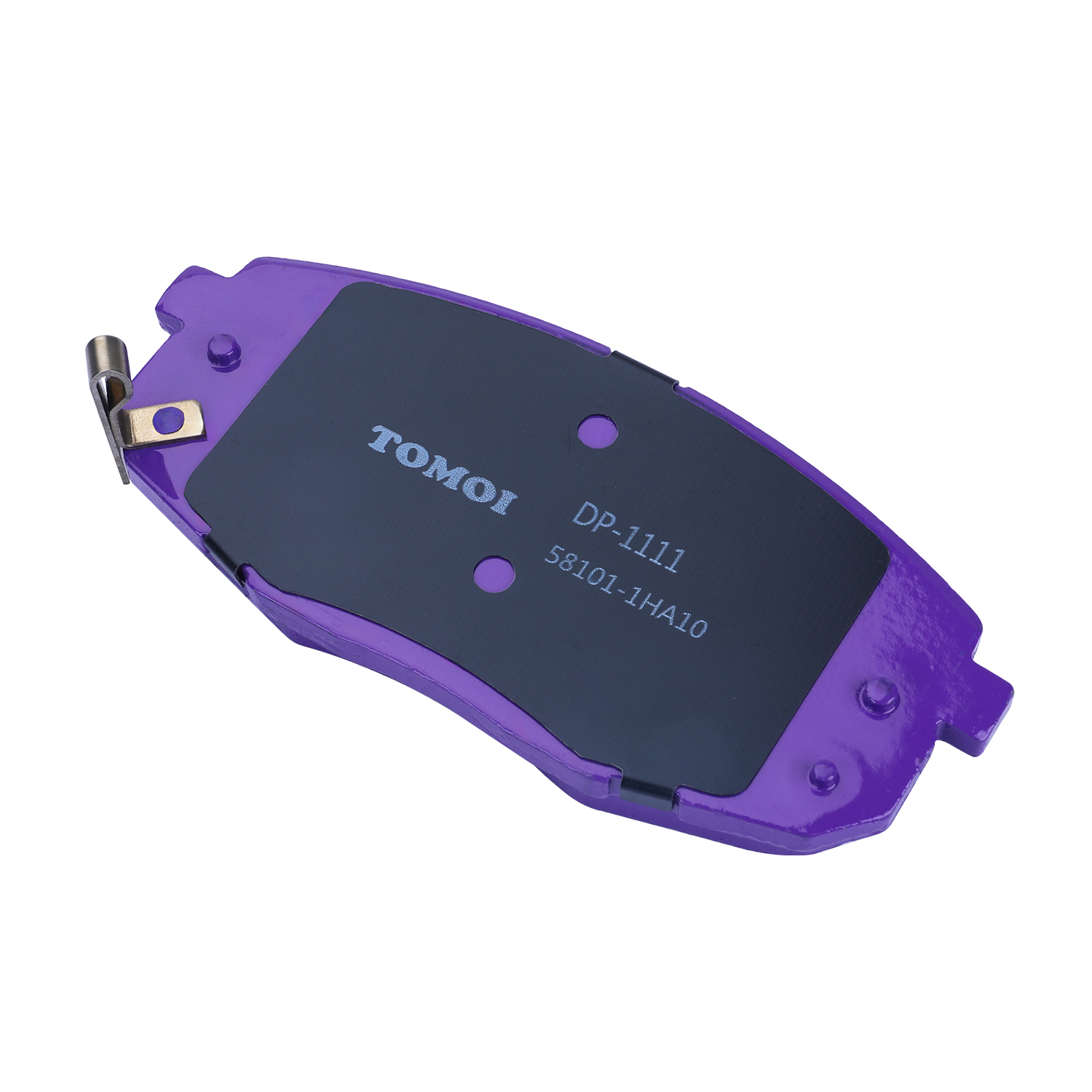

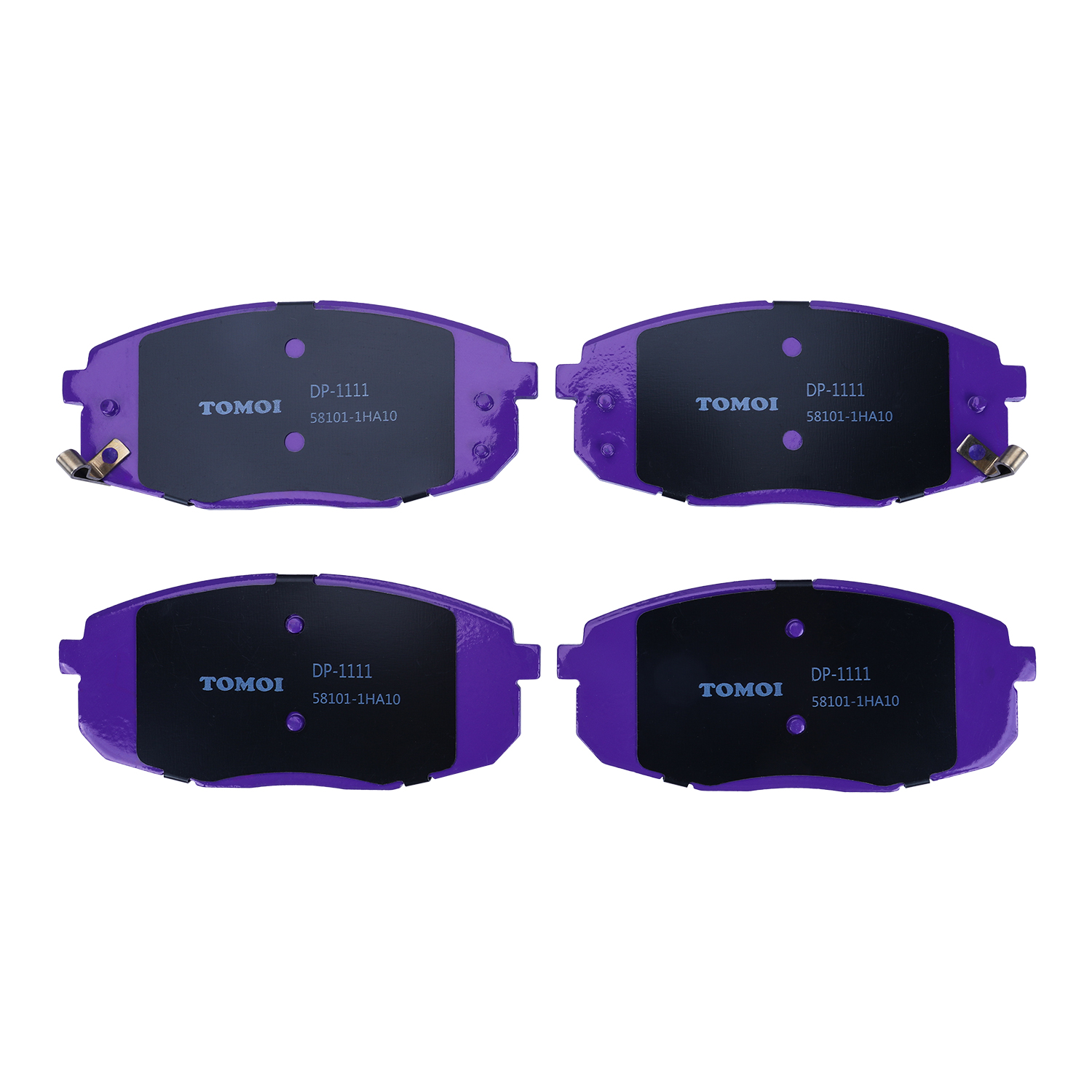

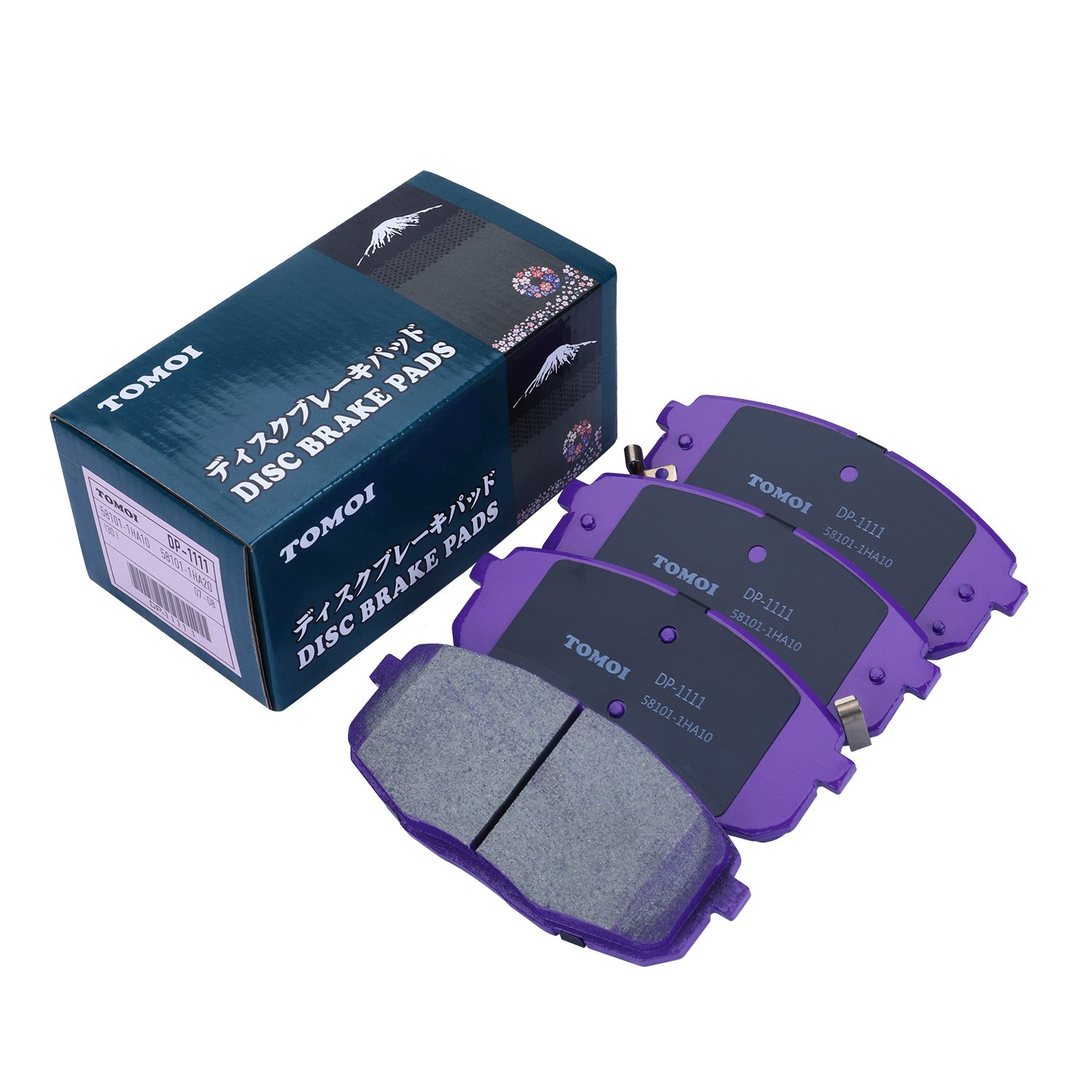

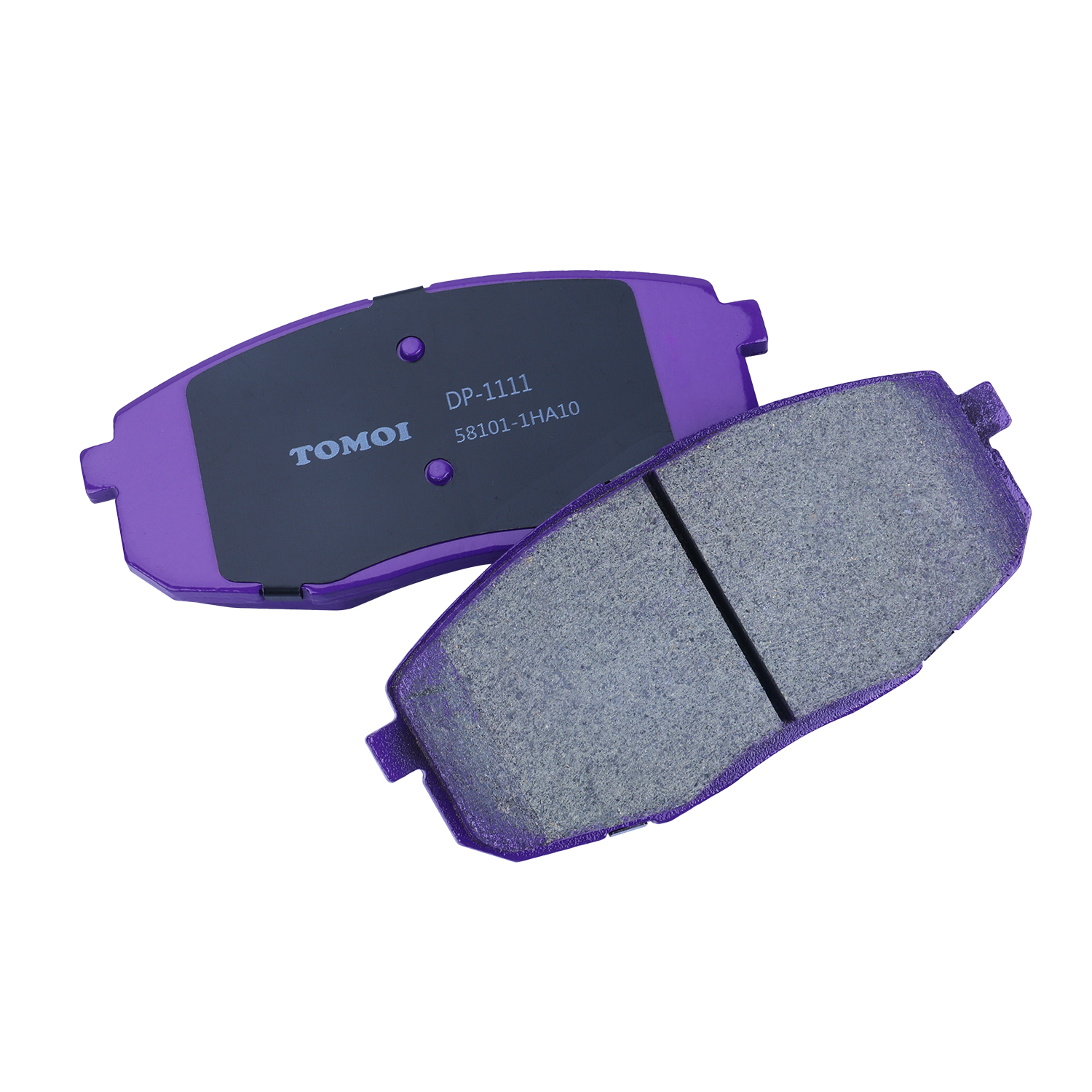

BRAKE PADS DP-1111
MASUMA No.
MS-0301
FMSI No.
D1397-8505
FMSI No.
D2035-8505
FMSI No.
D2094-8505
NIBK No.
PN0373
BREMBO No.
P30034N
TEXTAR No.
2396601
TRW No.
GDB3450
TOMOI No.
DP-1111
NIBK No.
PN0373
BREMBO No.
P30034N
TEXTAR No.
2396601
TRW No.
GDB3450
TOMOI No.
DP-1111
High Security
Boost Motivation
In-situ Installation
Stable And Durable
OEM List
- 58101-1MA00
- 58101-3RA00
- 58101-1HA00
- 58101-1HA10
- 58101-1HA20
- S5810-11HA00
The friction material of TOMOI disc pads is the result of 10 years of research into different compositions and component ratios. As a result, the company managed to achieve optimal efficiency, thermal stability in different operating modes, low noise levels and moderate dust formation.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
HYUNDAI
i30 I
| Chassis No. | Year | Configuration |
|---|---|---|
| 1.4L GAMMA. G4FA. HATCH 5D. HATCHBACK | 2007.05-2008.05 | 1.4L Patrol G4FA (109 hp / 78 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. HATCH 5D. HATCHBACK | 2007.05-2008.05 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. HATCH 5D. HATCHBACK | 2007.05-2008.05 | 2.0L Patrol G4GC (143 hp / 103 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA. HATCHBACK | 2007.05-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. HATCH 5D. HATCHBACK | 2007.05-2010.11 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. HATCH 5D. HATCHBACK | 2007.05-2010.12 | 2.0L Patrol G4GC (143 hp / 103 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. HATCH 5D. HATCHBACK | 2007.05-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. HATCH 5D. HATCHBACK | 2007.05-2012.03 | 1.4L Patrol G4FA (109 hp / 78 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA. HATCHBACK | 2008.05-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. HATCH 5D. HATCHBACK | 2008.05-2010.11 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. HATCH 5D. HATCHBACK | 2008.05-2010.12 | 2.0L Patrol G4GC (143 hp / 103 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. HATCH 5D. HATCHBACK | 2008.05-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. HATCH 5D. HATCHBACK | 2008.05-2012.03 | 1.4L Patrol G4FA (109 hp / 78 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA. CZECH PLANT. HATCHBACK | 2008.10-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA. CZECH PLANT. HATCHBACK | 2008.10-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2009.06 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2009.06 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2010.12 | 2.0L Patrol G4GC (143 hp / 105 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2010.12 | 2.0L Patrol G4GC (143 hp / 105 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2012.03 | 1.4L Patrol G4FA (109 hp / 78 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. HATCH 5D. CZECH PLANT. HATCHBACK | 2008.10-2012.03 | 1.4L Patrol G4FA (109 hp / 78 kW) Rear - wheel drive. LHD |
| 1.6L U2. D4FB. HATCH 5D. HATCHBACK | 2011.03-2012.02 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 1.6L U2. D4FB. HATCH 5D. CZECH PLANT. HATCHBACK | 2011.03-2012.02 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
i30CW
| Chassis No. | Year | Configuration |
|---|---|---|
| 1.4L GAMMA. G4FA. WAGON. WAGON | 2007.05-2008.05 | 1.4L Patrol G4FA (109 hp / 80 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. WAGON | 2007.05-2008.05 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. WAGON | 2007.05-2008.05 | 2.0L Patrol G4GC (143 hp / 105 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA.. WAGON | 2007.05-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. WAGON. WAGON | 2007.05-2010.11 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. WAGON. WAGON | 2007.05-2010.11 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. WAGON | 2007.05-2010.12 | 2.0L Patrol G4GC (143 hp / 105 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. WAGON | 2007.05-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. WAGON. WAGON | 2007.05-2012.03 | 1.4L Patrol G4FA (109 hp / 80 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA.. WAGON | 2008.05-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. WAGON | 2008.05-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. WAGON. WAGON | 2008.05-2012.03 | 1.4L Patrol G4FA (109 hp / 80 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA. CZECH. WAGON | 2008.10-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 2.0L D. D4EA. CZECH. WAGON | 2008.10-2008.12 | 2.0L Diesel D4EA CRDI (140 hp / 102 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. WAGON. CZECH. WAGON | 2008.10-2009.06 | 1.6L Diesel D4FB CRDI (90 hp / 65 kW) Rear - wheel drive. LHD |
| 1.6L U. D4FB. WAGON. CZECH. WAGON | 2008.10-2009.06 | 1.6L Diesel D4FB CRDI (90 hp / 65 kW) Rear - wheel drive. LHD |
| 2.0L BETA. G4GC. CZECH. WAGON | 2008.10-2010.12 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 2.0L BETA. G4GC. CZECH. WAGON | 2008.10-2010.12 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 1.6L GAMMA. G4FC. WAGON. CZECH. WAGON | 2008.10-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.6L GAMMA. G4FC. WAGON. CZECH. WAGON | 2008.10-2012.02 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. WAGON. CZECH. WAGON | 2008.10-2012.03 | 1.4L Patrol G4FA (109 hp / 80 kW) Rear - wheel drive. LHD |
| 1.4L GAMMA. G4FA. WAGON. CZECH. WAGON | 2008.10-2012.03 | 1.4L Patrol G4FA (109 hp / 80 kW) Rear - wheel drive. LHD |
| 1.6L U2. D4FB. WAGON. CZECH. WAGON | 2011.03-2012.02 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
| 1.6L U2. D4FB. WAGON. WAGON | 2011.03-2012.02 | 1.6L Diesel D4FB CRDI (116 hp / 85 kW) Rear - wheel drive. LHD |
KIA
CEED I
| Chassis No. | Year | Configuration |
|---|---|---|
| 1.4L GAMMA. G4FA. HATCH 5D. HATCHBACK | 2006.10-2009.07 | 1.4L Patrol G4FA (105 hp / 77 kW) Front - wheel drive (2WD). LHD |
| 1.6L GAMMA MPI. G4FC. HATCHBACK | 2006.10-2009.07 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Front - wheel drive (2WD). LHD |
| 1.6L U. D4FB. HATCH 5D. HATCHBACK | 2006.10-2009.07 | 1.6L Diesel D4FB-L CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 2.0L BETA. G4GC. HATCH 5D. HATCHBACK | 2006.10-2009.07 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 1.6L U. D4FB. WAGON. WAGON | 2007.05-2009.07 | 1.6L Diesel D4FB-L CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 1.4L GAMMA. G4FA. WAGON. WAGON | 2007.06-2009.07 | 1.4L Patrol G4FA (105 hp / 77 kW) Front - wheel drive (2WD). LHD |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2007.06-2009.07 | 1.6L Patrol G4FG MPI (122 hp / 90 kW) Front - wheel drive (2WD). LHD |
| 2.0L BETA. G4GC. WAGON | 2007.06-2009.07 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 2.0L D. D4EA. HATCHBACK | 2007.06-2009.07 | 2.0L Diesel D4EA-F CRDI (140 hp / 103 kW) Front - wheel drive (2WD). LHD |
| 2.0L D. D4EA.. WAGON | 2007.06-2009.07 | 2.0L Diesel D4EA-F CRDI (140 hp / 103 kW) Front - wheel drive (2WD). LHD |
| 1.4L GAMMA. G4FA. HATCH 3D. HATCHBACK. 3 Doors | 2007.10-2009.07 | 1.4L Patrol G4FA (109 hp / 80 kW) Front - wheel drive (2WD). LHD |
| 1.6L GAMMA MPI. G4FC. HATCHBACK. 3 Doors | 2007.10-2009.07 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Front - wheel drive (2WD). LHD |
| 1.6L U. D4FB-L. HATCH 3D. HATCHBACK. 3 Doors | 2007.10-2009.07 | 1.6L Diesel D4FB-L CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 2.0L BETA. G4GC. HATCHBACK. 3 Doors | 2007.10-2009.07 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 2.0L D. D4EA-F. HATCH 3D. HATCHBACK. 3 Doors | 2007.10-2009.07 | 2.0L Diesel D4EA-F CRDI (140 hp / 103 kW) Front - wheel drive (2WD). LHD |
| 1.6L U2. D4FB. HATCH 3D. HATCHBACK. 3 Doors | 2009.02-2009.07 | 1.6L Diesel D4FB-L CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 1.6L U2. D4FB. HATCH 5D. HATCHBACK | 2009.02-2009.07 | 1.6L Diesel D4FB-L CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 1.6L U2. D4FB. WAGON. WAGON | 2009.02-2009.07 | 1.6L Diesel D4FB-L CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 1.4L GAMMA. G4FA. HATCH 5D. HATCHBACK | 2009.07-2012.03 | 1.4L Patrol G4FA (105 hp / 77 kW) Front - wheel drive (2WD). LHD |
| 1.6L GAMMA MPI. G4FC. HATCHBACK | 2009.07-2012.03 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Front - wheel drive (2WD). LHD |
| 1.6L U2. D4FB. HATCH 5D. HATCHBACK | 2009.07-2012.03 | 1.6L Diesel D4FB CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 2.0L BETA. G4GC. HATCH 5D. HATCHBACK | 2009.07-2012.03 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 2.0L D. D4EA. HATCHBACK | 2009.07-2012.03 | 2.0L Diesel D4EA-F CRDI (140 hp / 103 kW) Front - wheel drive (2WD). LHD |
| 1.4L GAMMA. G4FA. WAGON. WAGON | 2009.07-2012.07 | 1.4L Patrol G4FA (105 hp / 77 kW) Front - wheel drive (2WD). LHD |
| 1.6L GAMMA MPI. G4FG. WAGON. WAGON | 2009.07-2012.07 | 1.6L Patrol G4FG MPI (122 hp / 90 kW) Front - wheel drive (2WD). LHD |
| 1.6L U2. D4FB. WAGON. WAGON | 2009.07-2012.07 | 1.6L Diesel D4FB CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 2.0L BETA. G4GC. WAGON | 2009.07-2012.07 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 2.0L D. D4EA.. WAGON | 2009.07-2012.07 | 2.0L Diesel D4EA CRDI (140 hp / 103 kW) Front - wheel drive (2WD). LHD |
| 1.4L GAMMA. G4FA. HATCH 3D. HATCHBACK. 3 Doors | 2009.07-2012.08 | 1.4L Patrol G4FA (105 hp / 77 kW) Front - wheel drive (2WD). LHD |
| 1.6L GAMMA MPI. G4FC. HATCHBACK. 3 Doors | 2009.07-2012.08 | 1.6L Patrol G4FC MPI (122 hp / 90 kW) Front - wheel drive (2WD). LHD |
| 1.6L U2. D4FB. HATCH 3D. HATCHBACK. 3 Doors | 2009.07-2012.08 | 1.6L Diesel D4FB CRDI (115 hp / 85 kW) Front - wheel drive (2WD). LHD |
| 2.0L BETA. G4GC. HATCHBACK. 3 Doors | 2009.07-2012.08 | 2.0L Patrol G4GC (143 hp / 105 kW) Front - wheel drive (2WD). LHD |
| 2.0L D. D4EA-F. HATCH 3D. HATCHBACK. 3 Doors | 2009.07-2012.08 | 2.0L Diesel D4EA-F CRDI (140 hp / 103 kW) Front - wheel drive (2WD). LHD |
