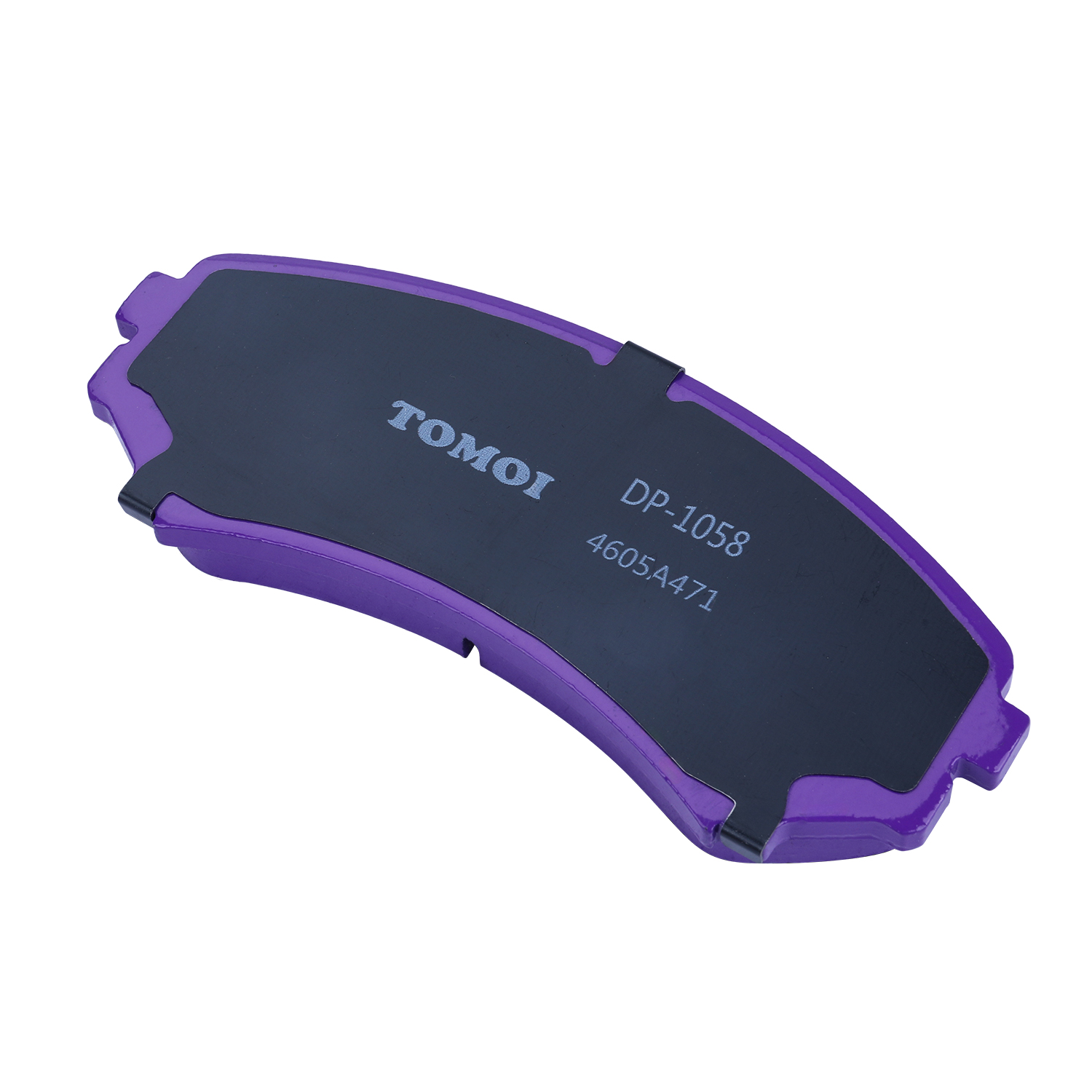

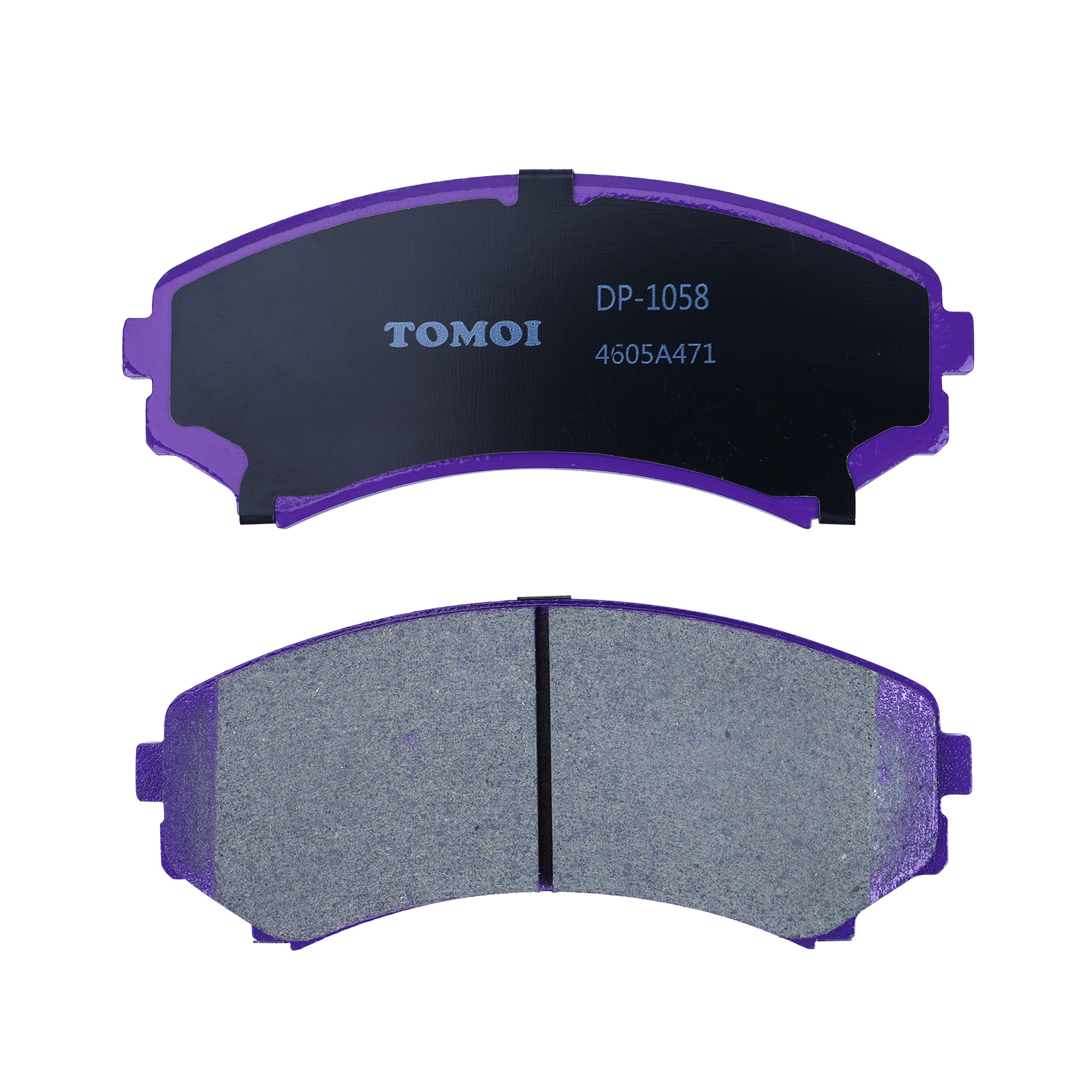

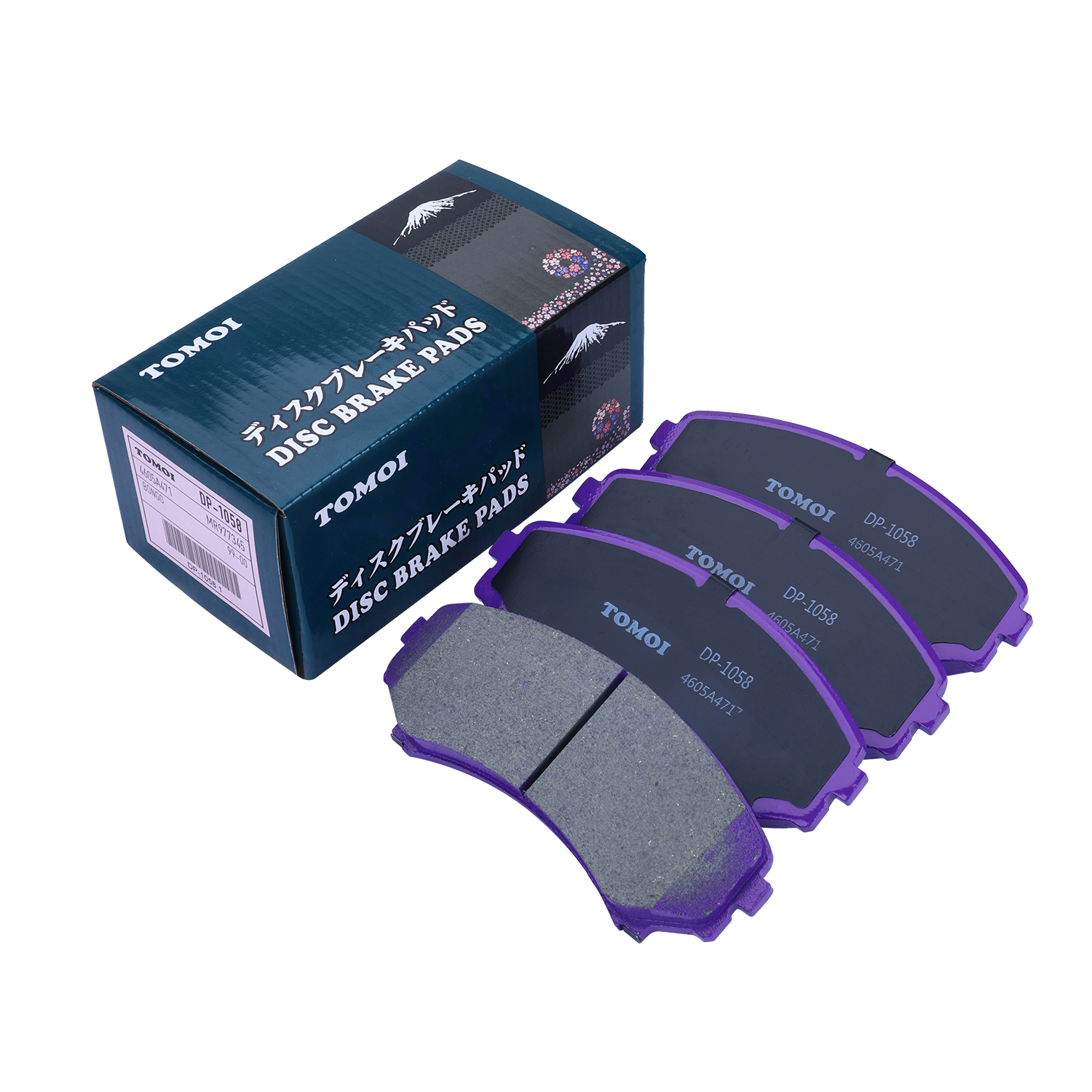

BRAKE PADS DP-1058

MASUMA No.
MS-3414
FMSI No.
D550-7429
NIBK No.
PN3414
TEXTAR No.
2348801
TOMOI No.
DP-1058
NIBK No.
PN3414
TEXTAR No.
2348801
TOMOI No.
DP-1058
NIBK No.
PN3414

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • S4YR-33-28Z
  • S4YR-33-28ZA
  • 4605A041
  • 4605A471
  • MN116445
  • MR407422
  • MR510539
  • MR510619
  • MR527868
  • MR977345
  • MZ690140
  • MZ690177
  • MZ690178
  • MZ690340
  • MZ690347
  • AY040-MT013

The friction material of TOMOI disc pads is the result of 10 years of research into different compositions and component ratios. As a result, the company managed to achieve optimal efficiency, thermal stability in different operating modes, low noise levels and moderate dust formation.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

MAZDA
BONGO BRAWNY
Chassis No.YearConfiguration
SKE4T1999.06-2000.102.0L Patrol FE-E EGI (100 hp / 74 kW) Rear - wheel drive. RHD Double tire. 1350kg
SK54T1999.06-2000.102.5L Diesel WL (114 hp / 84 kW) Rear - wheel drive. RHD Single tire/ Double tire. 1350kg
TITAN DASH
Chassis No.YearConfiguration
SYE4T2000.09-2000.112.0L Patrol FE-E EGI (105 hp / 77 kW) Rear - wheel drive. RHD Single tire/ double tire. 1.35t.
SY54T2000.09-2000.112.5L Diesel WL (83 hp / 61 kW) Rear - wheel drive. RHD Single tire/ double tire. 1.35t
SY54T2000.11-2004.082.5L Diesel WL (83 hp / 61 kW) Rear - wheel drive. RHD Single tire/ double tire. 1.35t
SYE4T2000.11-2010.082.0L Patrol FE-E EGI (105 hp / 77 kW) Rear - wheel drive. RHD Single tire/ double tire. 1.35t.
SYF4T2004.08-2010.082.0L Diesel RF (86 hp / 63 kW) Rear - wheel drive. RHD Single tire/ double tire. 1.35t
MITSUBISHI
DIGNITY
Chassis No.YearConfiguration
S43A1999.09-2001.064.5L Patrol 8A80 GDI (280 hp / 206 kW) Front - wheel drive (2WD). RHD
GRANDIS
Chassis No.YearConfiguration
NA4W2004.01-2010.122.4L Patrol 4G69 MPI (177 hp / 130 kW) Front - wheel drive (2WD). LHD
NA8W2005.06-2010.042.0L Diesel BSY (136 hp / 100 kW) Front - wheel drive (2WD). LHD
NA8W2007.06-2010.042.0L Diesel BWC (140 hp / 103 kW) Front - wheel drive (2WD). LHD
MONTERO
Chassis No.YearConfiguration
V64W2000.02-2003.012.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V74W2000.02-2003.012.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V78W2000.02-2003.013.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V68W2000.02-2003.013.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V65W2000.02-2003.013.5L Patrol 6G74 GDI (190 hp / 140 kW) Four - wheel drive (4WD). LHD
V75W2000.02-2003.013.5L Patrol 6G74 GDI (203 hp / 149 kW) Four - wheel drive (4WD). LHD
V64W2003.01-2006.092.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V74W2003.01-2006.092.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V78W2003.01-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V68W2003.01-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V65W2003.01-2006.093.5L Patrol 6G74 GDI (190 hp / 140 kW) Four - wheel drive (4WD). LHD
V75W2003.01-2006.093.5L Patrol 6G74 GDI (203 hp / 149 kW) Four - wheel drive (4WD). LHD
V88W2006.09-...3.2L Diesel 4M41T (170 hp / 125 kW) Four - wheel drive (4WD). LHD
V87W2006.09-2011.063.8L Patrol 6G75 MPI (218 hp / 160 kW) Four - wheel drive (4WD). LHD
PAJERO
Chassis No.YearConfiguration
V55W1997.08-1997.123.5L Patrol 6G74 MPI (245 hp / 180 kW) Four - wheel drive (4WD). RHD
V68W1999.06-2004.123.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). RHD
V78W1999.06-2004.123.2L Diesel 4M41T (190 hp / 140 kW) Four - wheel drive (4WD). RHD
V65W1999.06-2005.103.5L Patrol 6G74 GDI (220 hp / 162 kW) Four - wheel drive (4WD). RHD
V75W1999.06-2005.103.5L Patrol 6G74 GDI (220 hp / 162 kW) Four - wheel drive (4WD). RHD
V74W2000.02-2003.012.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V64W2000.02-2003.012.5L Diesel 4D56T (99 hp / 73 kW) Four - wheel drive (4WD). LHD
V78W2000.02-2003.013.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V68W2000.02-2003.013.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V75W2000.02-2003.013.5L Patrol 6G74 GDI (203 hp / 149 kW) Four - wheel drive (4WD). LHD
V65W2000.02-2003.013.5L Patrol 6G74 GDI (216 hp / 159 kW) Four - wheel drive (4WD). LHD
V63W2000.06-2006.083.0L Patrol 6G72 MPI (180 hp / 132 kW) Four - wheel drive (4WD). RHD
V73W2000.06-2006.083.0L Patrol 6G72 MPI (180 hp / 132 kW) Four - wheel drive (4WD). RHD
V74W2003.01-2006.092.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V64W2003.01-2006.092.5L Diesel 4D56T (99 hp / 73 kW) Four - wheel drive (4WD). LHD
V68W2003.01-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V78W2003.01-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V75W2003.01-2006.093.5L Patrol 6G74 GDI (203 hp / 149 kW) Four - wheel drive (4WD). LHD
V65W2003.01-2006.093.5L Patrol 6G74 GDI (216 hp / 159 kW) Four - wheel drive (4WD). LHD
V77W2005.10-2006.083.8L Patrol 6G75 MPI (219 hp / 161 kW) Four - wheel drive (4WD). RHD
V73W2006.07-2007.013.0L Patrol 6G72 MPI (177 hp / 130 kW) Four - wheel drive (4WD). LHD
V87W2006.08-2011.103.8L Patrol 6G75 MPI (219 hp / 161 kW) Four - wheel drive (4WD). RHD
V83W2006.08-2018.033.0L Patrol 6G72 MPI (178 hp / 131 kW) Four - wheel drive (4WD). RHD
V93W2006.08-2019.083.0L Patrol 6G72 MPI (178 hp / 131 kW) Four - wheel drive (4WD). RHD
V88W. EUR2006.09-...3.2L Diesel 4M41T (160 hp / 118 kW) Four - wheel drive (4WD). LHD
V87W. EUR2006.09-2011.063.8L Patrol 6G75 MPI (250 hp / 184 kW) Four - wheel drive (4WD). LHD
V88W. RUS2007.01-...3.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V93W. EUR2007.01-2010.103.0L Patrol 6G72 MPI (177 hp / 130 kW) Four - wheel drive (4WD). LHD
V87W. RUS2009.03-2011.063.8L Patrol 6G75 MPI (248 hp / 182 kW) Four - wheel drive (4WD). LHD
V88W2009.03-2018.033.2L Diesel 4M41T (170 hp / 125 kW) Four - wheel drive (4WD). RHD
V93W. RUS2010.07-...3.0L Patrol 6G72 MPI (177 hp / 130 kW) Four - wheel drive (4WD). LHD
PROUDIA
Chassis No.YearConfiguration
S32A1999.09-2001.063.5L Patrol 6G74 GDI (240 hp / 177 kW) Front - wheel drive (2WD). RHD
S33A1999.09-2001.064.5L Patrol 8A80 GDI (280 hp / 206 kW) Front - wheel drive (2WD). RHD
