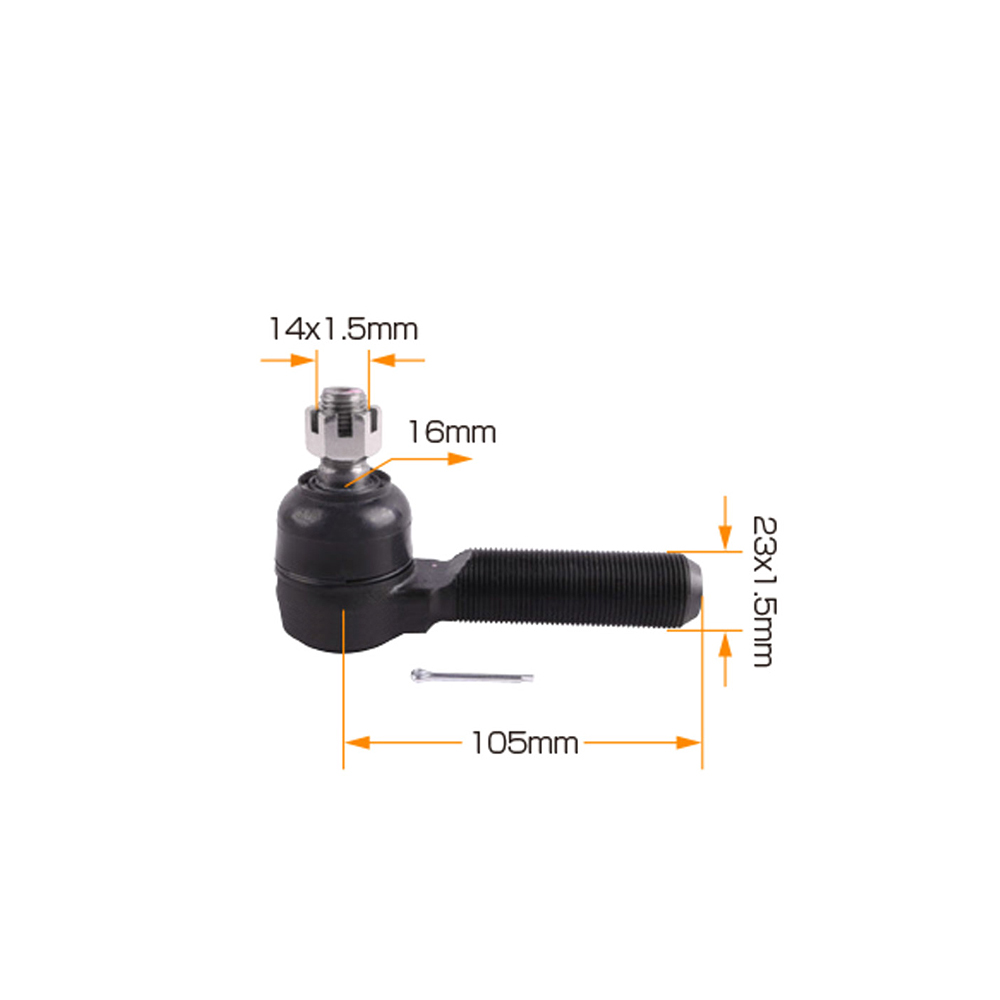

TIE ROD END TE-50056R

MASUMA No.
ME-2951R
TOMOI No.
TE-50056R
TRW No.
JTE902
555 No.
SE-2951R
CTR No.
CE0-684

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 45046-69125
  • 45046-69126
  • 45046-69135
  • 45047-69067

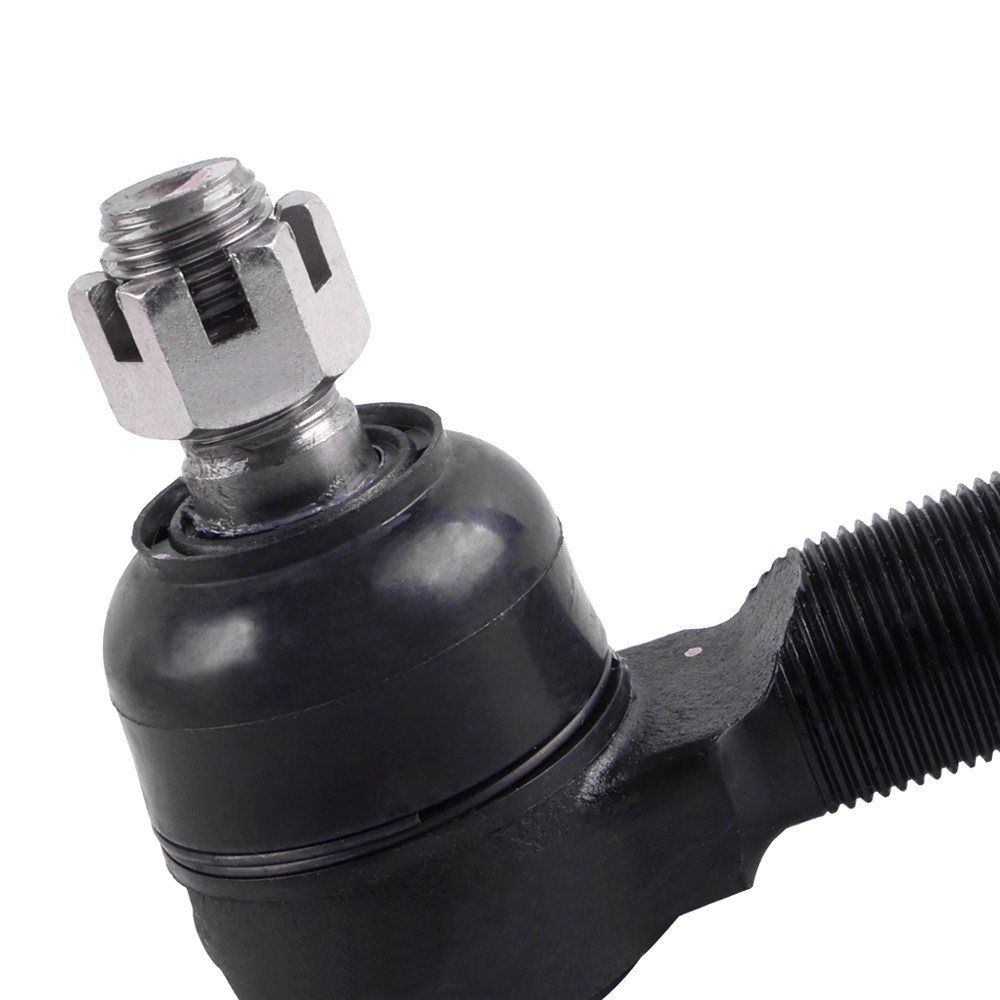

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

LEXUS
LX450
Chassis No.YearConfiguration
FZJ80L1995.11-1998.014.5L Patrol 1FZFE EFI (205 hp / 151 kW) Four - wheel drive (4WD). LHD
TOYOTA
LAND CRUISER
Chassis No.YearConfiguration
RJ70LV1990.01-1993.052.4L Patrol 22R Карбюратор (108 hp / 79 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
LJ70L1990.01-1993.052.4L Diesel 2LT (96 hp / 71 kW) Four - wheel drive (4WD). LHD SOT [SOFTTOP]
LJ73LV1990.01-1994.082.4L Diesel 2LT (96 hp / 71 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
LJ70LV1990.01-1995.012.4L Diesel 2LT (96 hp / 71 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
HDJ81V1990.01-1995.014.2L Diesel 1HDT (165 hp / 121 kW) Four - wheel drive (4WD). RHD
HDJ80L1990.01-1995.014.2L Diesel 1HDT (167 hp / 123 kW) Four - wheel drive (4WD). LHD
RJ73LV1990.01-1996.042.4L Patrol 22RE EFI (109 hp / 80 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
RJ70LV1990.01-1996.042.4L Patrol 22RE EFI (109 hp / 80 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
HZJ80L1990.01-1998.014.2L Diesel 1HZ (135 hp / 99 kW) Four - wheel drive (4WD). LHD
HZJ81V1990.01-1998.014.2L Diesel 1HZ (135 hp / 99 kW) Four - wheel drive (4WD). RHD
LJ77LV1990.04-1993.052.4L Diesel 2LT (96 hp / 71 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
FZJ80L1992.08-1998.014.5L Patrol 1FZFE EFI (205 hp / 151 kW) Four - wheel drive (4WD). LHD
FZJ80G1992.08-1998.014.5L Patrol 1FZFE EFI (215 hp / 158 kW) Four - wheel drive (4WD). RHD
KZJ70LV1993.05-1996.043.0L Diesel 1KZT (125 hp / 92 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
KZJ73LV1993.05-1996.043.0L Diesel 1KZT (125 hp / 92 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
KZJ77LV1993.05-1996.043.0L Diesel 1KZT (125 hp / 92 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
KZJ70L1993.05-1996.043.0L Diesel 1KZT (125 hp / 92 kW) Four - wheel drive (4WD). LHD SOT [SOFTTOP]
HDJ80L1995.01-1998.014.2L Diesel 1HDFT (170 hp / 125 kW) Four - wheel drive (4WD). LHD
HDJ81V1995.01-1998.014.2L Diesel 1HDFT (170 hp / 125 kW) Four - wheel drive (4WD). RHD
HZJ78L1999.08-2001.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
HZJ74L1999.08-2001.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
HZJ71L1999.08-2001.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD HT [HARDTOP]
HZJ79L1999.08-2001.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD PIC [PICKUP]
HZJ74K1999.08-2004.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
HZJ76K1999.08-2004.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
HZJ76V1999.08-2004.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
HZJ74V1999.08-2004.084.2L Diesel 1HZ (130 hp / 99 kW) Four - wheel drive (4WD). RHD
HZJ711999.08-2004.084.2L Diesel 1HZ (135 hp / 99 kW) Four - wheel drive (4WD). RHD
HZJ71V1999.08-2004.084.2L Diesel 1HZ (135 hp / 99 kW) Four - wheel drive (4WD). RHD
FZJ78R1999.08-2006.054.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). RHD
FZJ79R1999.08-2006.054.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). RHD
HZJ71L1999.08-2007.014.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD
HZJ78L1999.08-2007.014.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD
HZJ79L1999.08-2007.014.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD
HZJ71R1999.08-2007.014.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
HZJ78R1999.08-2007.014.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
HZJ79R1999.08-2007.014.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
HZJ79L1999.08-2007.014.2L Diesel 1HZ (135 hp / 99 kW) Four - wheel drive (4WD). LHD
FZJ71L1999.08-2007.014.5L Patrol 1FZFE EFI (205 hp / 151 kW) Four - wheel drive (4WD). LHD
FZJ74L1999.08-2007.014.5L Patrol 1FZFE EFI (205 hp / 151 kW) Four - wheel drive (4WD). LHD Soft Top
FZJ71L1999.08-2007.014.5L Patrol 1FZFE EFI (211 hp / 155 kW) Four - wheel drive (4WD). LHD
FZJ71R1999.08-2007.014.5L Patrol 1FZFE EFI (211 hp / 155 kW) Four - wheel drive (4WD). RHD
FZJ79L1999.08-2007.014.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). LHD
FZJ78L1999.08-2007.014.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). LHD
FZJ74L1999.08-2007.014.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). LHD Soft Top
FZJ78R1999.08-2007.014.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). RHD
FZJ79R1999.08-2007.014.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). RHD
FZJ78L1999.08-2007.014.5L Patrol 1FZFE EFI (212 hp / 159 kW) Four - wheel drive (4WD). LHD
FZJ79L1999.08-2008.084.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). LHD
HZJ791999.11-2004.084.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
HDJ78R2001.08-2007.014.2L Diesel 1HDFTE EFI (205 hp / 151 kW) Four - wheel drive (4WD). RHD
HDJ79R2001.08-2007.074.2L Diesel 1HDFTE EFI (205 hp / 151 kW) Four - wheel drive (4WD). RHD
HZJ76L2007.01-...4.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). LHD
HZJ76R2007.01-...4.2L Diesel 1HZ (130 hp / 96 kW) Four - wheel drive (4WD). RHD
VDJ79R2007.01-...4.5L Diesel 1VDFTV EFI (217 hp / 160 kW) Four - wheel drive (4WD). RHD
VDJ78R2007.01-...4.5L Diesel 1VDFTV EFI (217 hp / 160 kW) Four - wheel drive (4WD). RHD
VDJ76R2007.01-...4.5L Diesel 1VDFTV EFI (217 hp / 160 kW) Four - wheel drive (4WD). RHD
FZJ76L2007.01-2009.074.5L Patrol 1FZFE EFI (212 hp / 156 kW) Four - wheel drive (4WD). LHD
FZJ76L2007.01-2009.074.5L Patrol 1FZFE EFI (212 hp / 159 kW) Four - wheel drive (4WD). LHD
HZJ76L2007.01-2016.124.2L Diesel 1HZ (131 hp / 96 kW) Four - wheel drive (4WD). LHD
HZJ78L2007.01-2016.124.2L Diesel 1HZ (135 hp / 99 kW) Four - wheel drive (4WD). LHD
GRJ71L2009.07-...4.0L Patrol 1GRFE EFI (228 hp / 168 kW) Four - wheel drive (4WD). LHD
GRJ78L2009.07-...4.0L Patrol 1GRFE EFI (228 hp / 168 kW) Four - wheel drive (4WD). LHD
GRJ79L2009.07-...4.0L Patrol 1GRFE EFI (228 hp / 168 kW) Four - wheel drive (4WD). LHD
GRJ79R2009.07-...4.0L Patrol 1GRFE EFI (231 hp / 170 kW) Four - wheel drive (4WD). RHD
GRJ71R2009.07-2012.084.0L Patrol 1GRFE EFI (228 hp / 168 kW) Four - wheel drive (4WD). RHD
GRJ78R2009.07-2012.084.0L Patrol 1GRFE EFI (228 hp / 168 kW) Four - wheel drive (4WD). RHD
LAND CRUISER PRADO
Chassis No.YearConfiguration
LJ71G1990.04-1993.052.4L Diesel 2LTE EFI (97 hp / 71 kW) Four - wheel drive (4WD). RHD
LJ78G1990.04-1993.052.4L Diesel 2LTE EFI (97 hp / 71 kW) Four - wheel drive (4WD). RHD
LJ78W1991.08-1993.052.4L Diesel 2LTE EFI (97 hp / 71 kW) Four - wheel drive (4WD). RHD
KZJ71G1993.05-1996.043.0L Diesel 1KZTE (130 hp / 96 kW) Four - wheel drive (4WD). RHD
KZJ78G1993.05-1996.043.0L Diesel 1KZTE (130 hp / 96 kW) Four - wheel drive (4WD). RHD
KZJ71W1993.05-1996.043.0L Diesel 1KZTE (130 hp / 96 kW) Four - wheel drive (4WD). RHD
KZJ78W1993.05-1996.043.0L Diesel 1KZTE (130 hp / 96 kW) Four - wheel drive (4WD). RHD
