OEM List
- 45046-29275
- 45046-29335

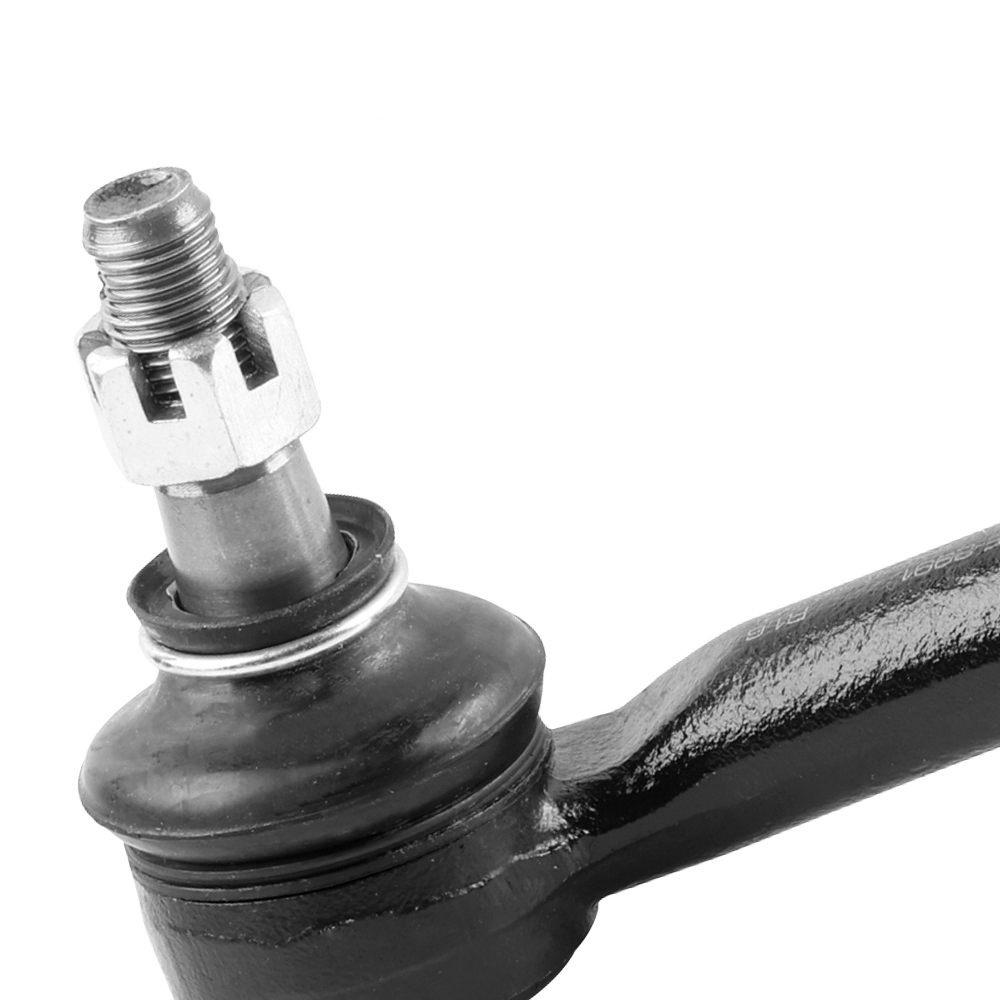

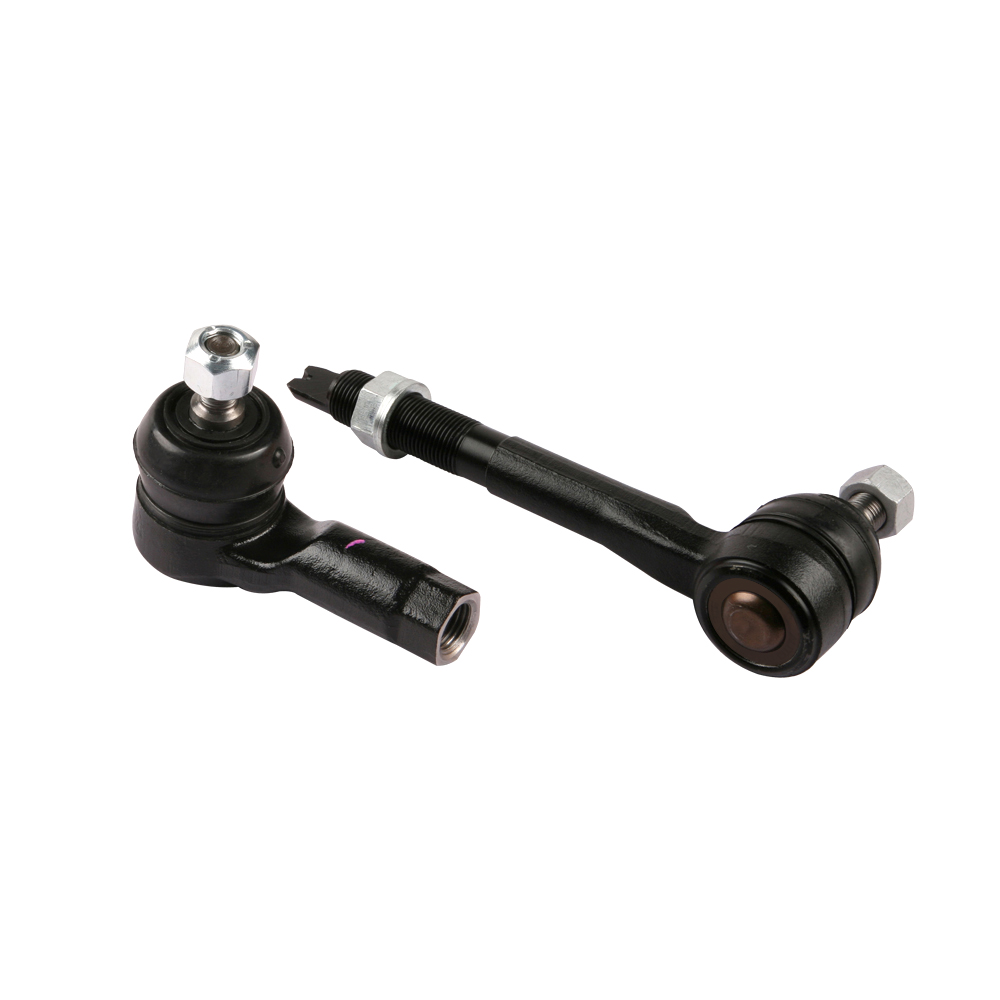

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
TOYOTA
CALDINA
| Chassis No. | Year | Configuration |
|---|---|---|
| ST190G | 1992.11-1996.01 | 1.8L Patrol 4SFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). RHD |
| ST191G | 1992.11-1996.01 | 2.0L Patrol 3SFE EFI (140 hp / 103 kW) Front - wheel drive (2WD). RHD |
| CT190G | 1992.11-1996.01 | 2.0L Diesel 2C (73 hp / 54 kW) Front - wheel drive (2WD). RHD |
| CT196V | 1992.11-1998.05 | 2.0L Diesel 2C (73 hp / 54 kW) Front - wheel drive (2WD). RHD |
| ET196V | 1992.11-2002.06 | 1.5L Patrol 5EFE EFI (100 hp / 74 kW) Front - wheel drive (2WD). RHD |
| AT191G | 1996.01-1997.08 | 1.8L Patrol 7AFE EFI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
| CT190G | 1996.01-1997.08 | 2.0L Diesel 2CT (88 hp / 65 kW) Front - wheel drive (2WD). RHD |
| AT211G | 1997.08-2002.09 | 1.8L Patrol 7AFE EFI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
| ST210G | 1997.08-2002.09 | 2.0L Patrol 3SFE EFI (140 hp / 103 kW) Front - wheel drive (2WD). RHD |
| CT197V | 1998.05-2002.06 | 2.2L Diesel 3CE EFI (79 hp / 58 kW) Front - wheel drive (2WD). RHD |
| ST210G | 1999.12-2002.09 | 2.0L Patrol 3SGE EFI (190 hp / 140 kW) Front - wheel drive (2WD). RHD |
CARINA
| Chassis No. | Year | Configuration |
|---|---|---|
| ST190 | 1992.08-1994.08 | 1.8L Patrol 4SFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). RHD |
| AT192 | 1992.08-1996.08 | 1.5L Patrol 5AFE EFI (105 hp / 77 kW) Front - wheel drive (2WD). RHD |
| AT190 | 1992.08-1996.08 | 1.6L Patrol 4AFE EFI (105 hp / 77 kW) Front - wheel drive (2WD). RHD |
| CT190 | 1992.08-1996.08 | 2.0L Diesel 2C (73 hp / 54 kW) Front - wheel drive (2WD). RHD |
| AT191 | 1994.08-1996.08 | 1.8L Patrol 7AFE EFI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
| CT210 | 1996.08-1998.08 | 2.0L Diesel 2CT (88 hp / 65 kW) Front - wheel drive (2WD). RHD |
| AT212 | 1996.08-2001.12 | 1.5L Patrol 5AFE EFI (100 hp / 74 kW) Front - wheel drive (2WD). RHD |
| AT210 | 1996.08-2001.12 | 1.6L Patrol 4AGE EFI (165 hp / 121 kW) Front - wheel drive (2WD). RHD |
| AT211 | 1996.08-2001.12 | 1.8L Patrol 7AFE EFI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
| CT211 | 1998.08-2001.12 | 2.2L Diesel 3CTE EFI (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
CORONA
| Chassis No. | Year | Configuration |
|---|---|---|
| AT190 | 1992.02-1996.01 | 1.6L Patrol 4AFE EFI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
| ST190 | 1992.02-1996.01 | 1.8L Patrol 4SFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). RHD |
| ST191 | 1992.02-1996.01 | 2.0L Patrol 3SFE EFI (140 hp / 103 kW) Front - wheel drive (2WD). RHD |
| CT190 | 1992.02-1996.01 | 2.0L Diesel 2C (73 hp / 54 kW) Front - wheel drive (2WD). RHD |
| ST190Y | 1992.11-1996.01 | 1.8L Patrol 4SFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). RHD |
| CT190Y | 1992.11-1996.01 | 2.0L Diesel 2C (73 hp / 54 kW) Front - wheel drive (2WD). RHD |
CORONA PREMIO
| Chassis No. | Year | Configuration |
|---|---|---|
| ST210 | 1996.01-1997.12 | 2.0L Patrol 3SFE EFI (140 hp / 103 kW) Front - wheel drive (2WD). RHD |
| CT210 | 1996.01-1997.12 | 2.0L Diesel 2CT (88 hp / 65 kW) Front - wheel drive (2WD). RHD |
| AT210 | 1996.01-2001.12 | 1.6L Patrol 4AFE EFI (105 hp / 77 kW) Front - wheel drive (2WD). RHD |
| AT211 | 1996.01-2001.12 | 1.8L Patrol 7AFE EFI (115 hp / 85 kW) Front - wheel drive (2WD). RHD |
| ST210 | 1996.12-2001.12 | 2.0L Patrol 3SFSE D-4 (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
| CT211 | 1997.12-2001.12 | 2.2L Diesel 3CTE EFI (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
GAIA
| Chassis No. | Year | Configuration |
|---|---|---|
| SXM10G | 1998.05-2001.04 | 2.0L Patrol 3SFE EFI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
| CXM10G | 1998.05-2004.09 | 2.2L Diesel 3CTE EFI (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
| ACM10G | 2001.04-2004.09 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
IPSUM
| Chassis No. | Year | Configuration |
|---|---|---|
| SXM10G | 1996.05-2001.05 | 2.0L Patrol 3SFE EFI (135 hp / 99 kW) Front - wheel drive (2WD). RHD |
| CXM10G | 1997.09-2001.05 | 2.2L Diesel 3CTE EFI (94 hp / 69 kW) Front - wheel drive (2WD). RHD |
NADIA
| Chassis No. | Year | Configuration |
|---|---|---|
| SXN10 | 1998.07-2001.04 | 2.0L Patrol 3SFE EFI (135 hp / 99 kW) Front - wheel drive (2WD). RHD Standart type |
| SXN10 | 1998.07-2001.04 | 2.0L Patrol 3SFSE D-4 (145 hp / 107 kW) Front - wheel drive (2WD). RHD Standart type |
| ACN10 | 2001.04-2003.07 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD Standart type |
| ACN10H | 2001.04-2003.07 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD Type SU |
PICNIC
| Chassis No. | Year | Configuration |
|---|---|---|
| SXM10L | 1996.09-2001.05 | 2.0L Patrol 3SFE EFI (136 hp / 100 kW) Front - wheel drive (2WD). LHD |
| CXM10L | 1997.09-2001.05 | 2.2L Diesel 3CTE EFI (90 hp / 66 kW) Front - wheel drive (2WD). LHD |
