OEM List- 45460-09010
- 45460-29425
- 45460-39615

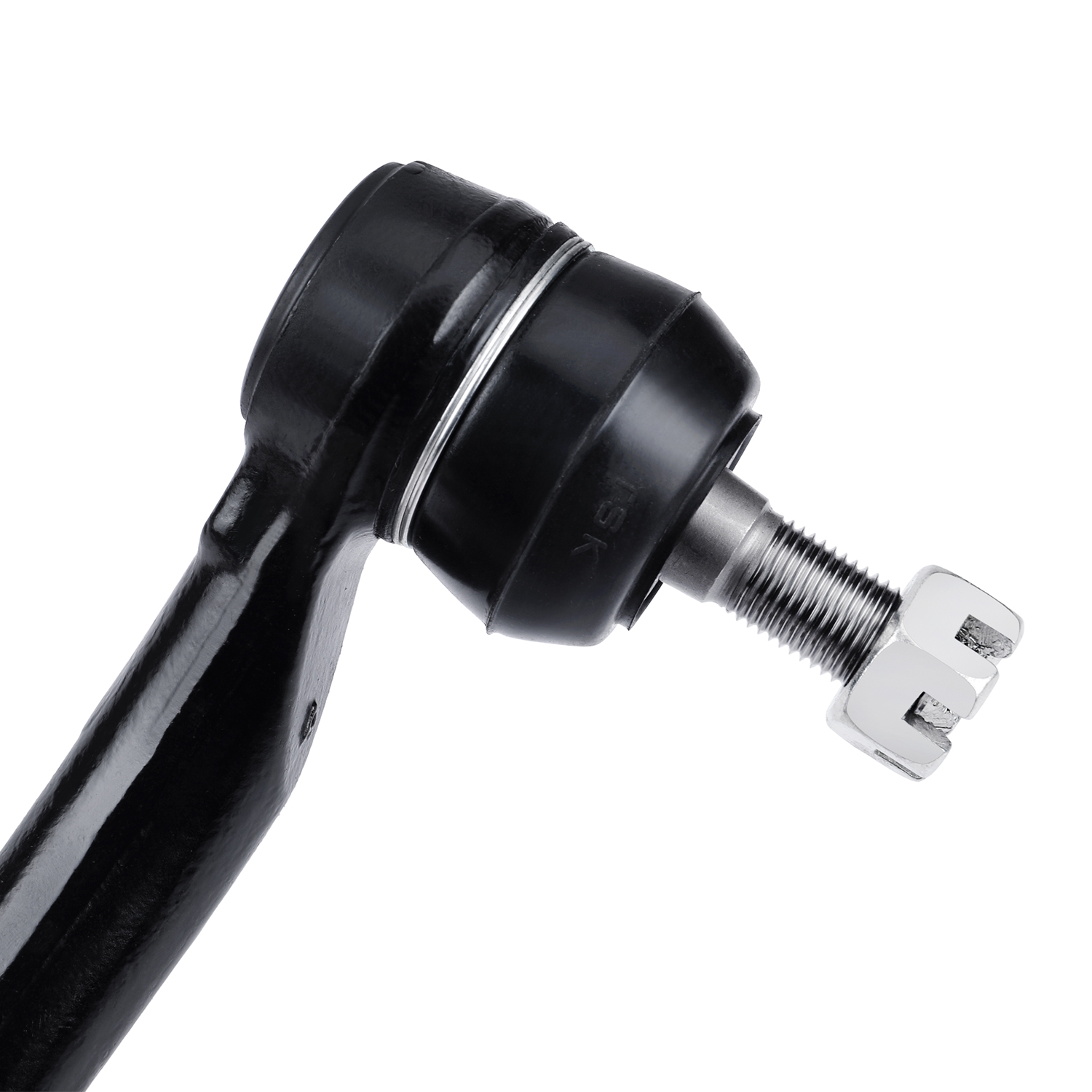

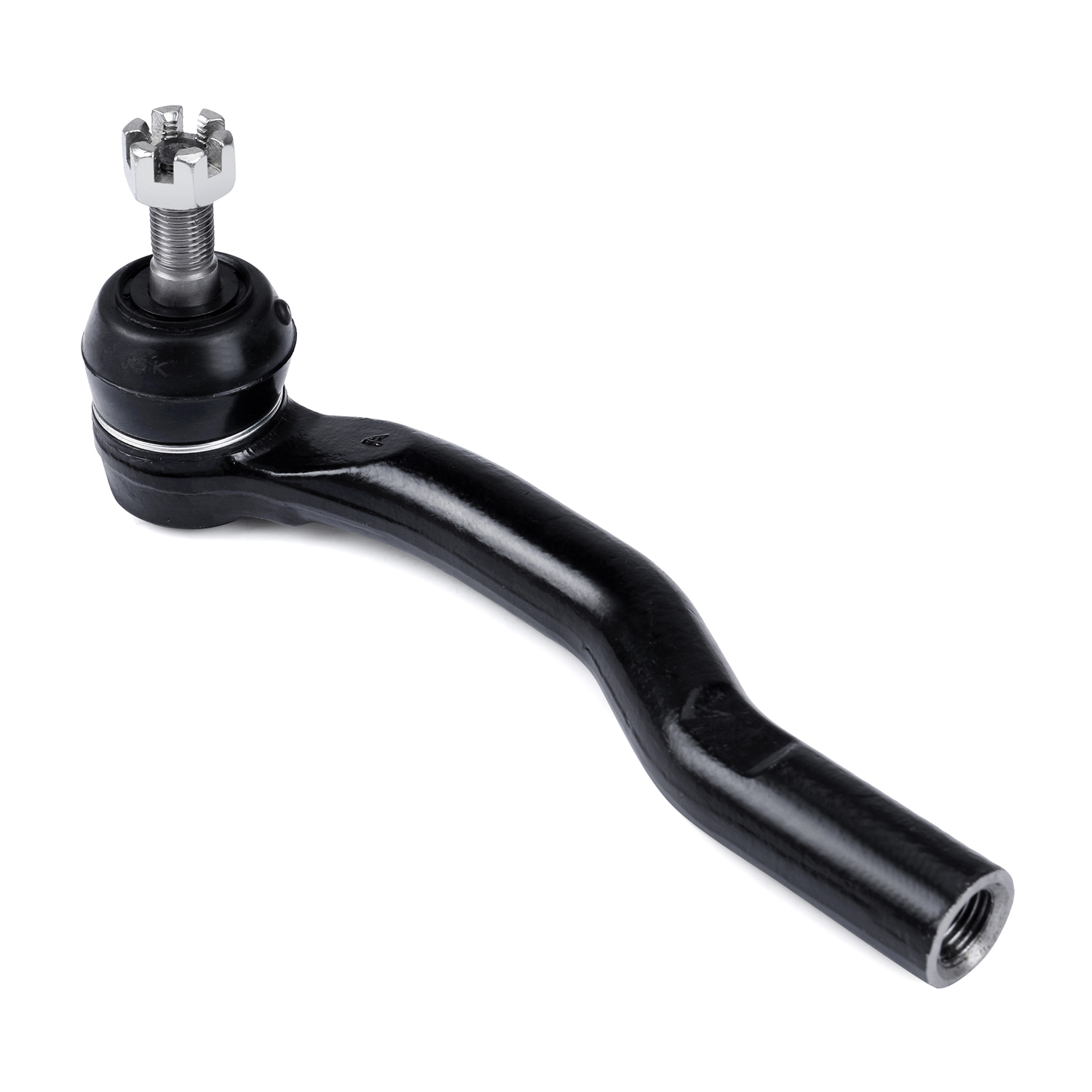

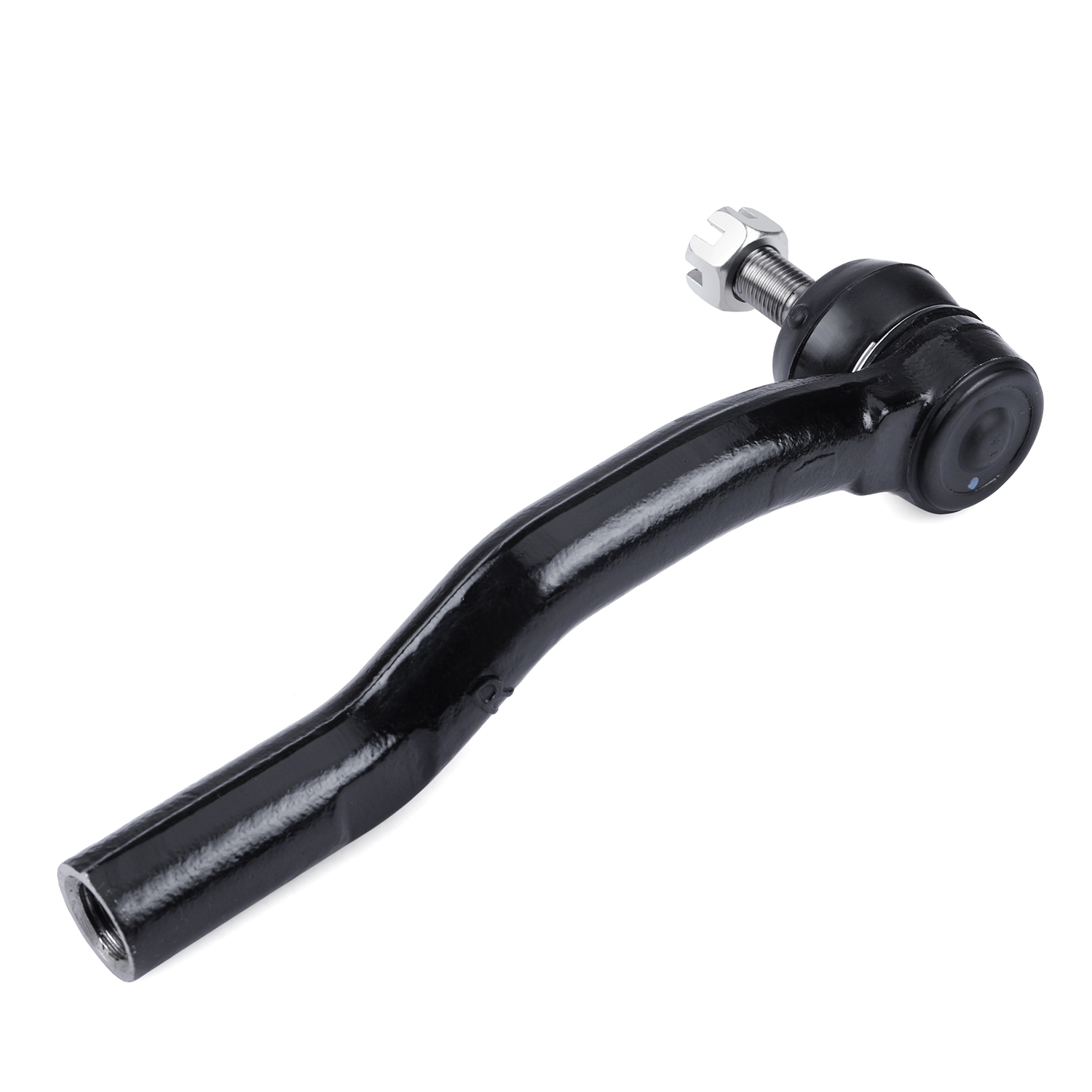

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
LEXUS
ES300
| Chassis No. | Year | Configuration |
|---|
| MCV30L | 2001.07-2003.07 | 3.0L Patrol 1MZFE EFI (215 hp / 158 kW) Rear - wheel drive. LHD |
TOYOTA
CAMRY
| Chassis No. | Year | Configuration |
|---|
| ACV30L | 2001.07-2006.02 | 2.4L Patrol 2AZFE EFI (157 hp / 115 kW) Front - wheel drive (2WD). LHD |
| MCV30L | 2001.07-2006.02 | 3.0L Patrol 1MZFE EFI (210 hp / 154 kW) Front - wheel drive (2WD). LHD |
| ACV31L | 2001.08-2003.07 | 2.0L Patrol 1AZFE EFI (148 hp / 109 kW) Front - wheel drive (2WD). LHD |
| ACV30L | 2001.08-2003.07 | 2.4L Patrol 2AZFE EFI (152 hp / 112 kW) Front - wheel drive (2WD). LHD |
| MCV30L | 2001.08-2003.07 | 3.0L Patrol 1MZFE EFI (186 hp / 137 kW) Front - wheel drive (2WD). LHD |
| ACV30 | 2001.09-2003.07 | 2.4L Patrol 2AZFE EFI (159 hp / 117 kW) Front - wheel drive (2WD). RHD |
| ACV35 | 2001.09-2003.07 | 2.4L Patrol 2AZFE EFI (159 hp / 117 kW) Four - wheel drive (4WD). RHD |
ESTIMA
| Chassis No. | Year | Configuration |
|---|
| MCR30W | 1999.12-2003.04 | 3.0L Patrol 1MZFE EFI (220 hp / 162 kW) Front - wheel drive (2WD). RHD |
| MCR40W | 1999.12-2003.04 | 3.0L Patrol 1MZFE EFI (220 hp / 162 kW) Four - wheel drive (4WD). RHD |
| ACR30W | 2000.02-2003.04 | 2.4L Patrol 2AZFE EFI (170 hp / 125 kW) Front - wheel drive (2WD). RHD |
| ACR40W | 2000.02-2003.04 | 2.4L Patrol 2AZFE EFI (170 hp / 125 kW) Four - wheel drive (4WD). RHD |
ESTIMA HYBRID
| Chassis No. | Year | Configuration |
|---|
| AHR10W | 2001.05-2003.08 | 2.4L Patrol 2AZFXE EFI (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
HIGHLANDER
| Chassis No. | Year | Configuration |
|---|
| MCU20L | 2000.11-2003.08 | 3.0L Patrol 1MZFE EFI (220 hp / 162 kW) Front - wheel drive (2WD). LHD |
| MCU25L | 2000.11-2003.08 | 3.0L Patrol 1MZFE EFI (220 hp / 162 kW) Four - wheel drive (4WD). LHD |
| ACU20L | 2000.11-2007.05 | 2.4L Patrol 2AZFE EFI (155 hp / 114 kW) Front - wheel drive (2WD). LHD |
| ACU25L | 2000.11-2007.05 | 2.4L Patrol 2AZFE EFI (155 hp / 114 kW) Four - wheel drive (4WD). LHD |
KLUGER
| Chassis No. | Year | Configuration |
|---|
| ACU20W | 2000.11-2003.08 | 2.4L Patrol 2AZFE EFI (160 hp / 118 kW) Front - wheel drive (2WD). RHD |
| MCU20W | 2000.11-2003.08 | 3.0L Patrol 1MZFE EFI (220 hp / 162 kW) Front - wheel drive (2WD). RHD |
| MCU25W | 2000.11-2003.08 | 3.0L Patrol 1MZFE EFI (220 hp / 162 kW) Four - wheel drive (4WD). RHD |
PREVIA
| Chassis No. | Year | Configuration |
|---|
| ACR30L | 2000.02-2006.01 | 2.4L Patrol 2AZFE EFI (170 hp / 125 kW) Front - wheel drive (2WD). LHD EUR |
| ACR30L | 2000.02-2006.01 | 2.4L Patrol 2AZFE EFI (170 hp / 125 kW) Front - wheel drive (2WD). LHD GEN |
| CLR30L | 2001.02-2006.01 | 2.0L Diesel 1CDFTV (116 hp / 85 kW) Front - wheel drive (2WD). LHD EUR |
WINDOM
| Chassis No. | Year | Configuration |
|---|
| MCV30 | 2001.07-2003.07 | 3.0L Patrol 1MZFE EFI (215 hp / 158 kW) Front - wheel drive (2WD). RHD |
