OEM List
- 45047-49025

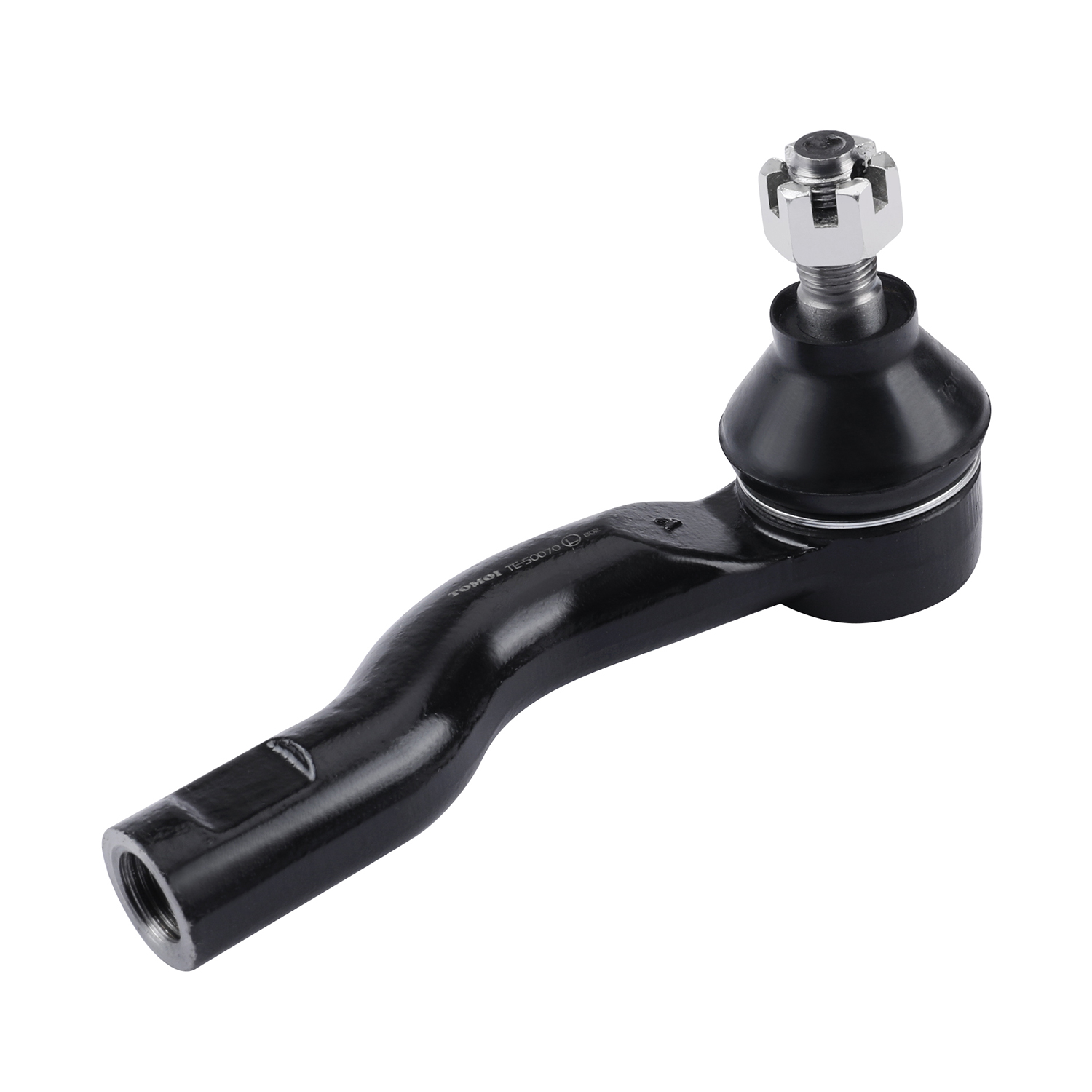

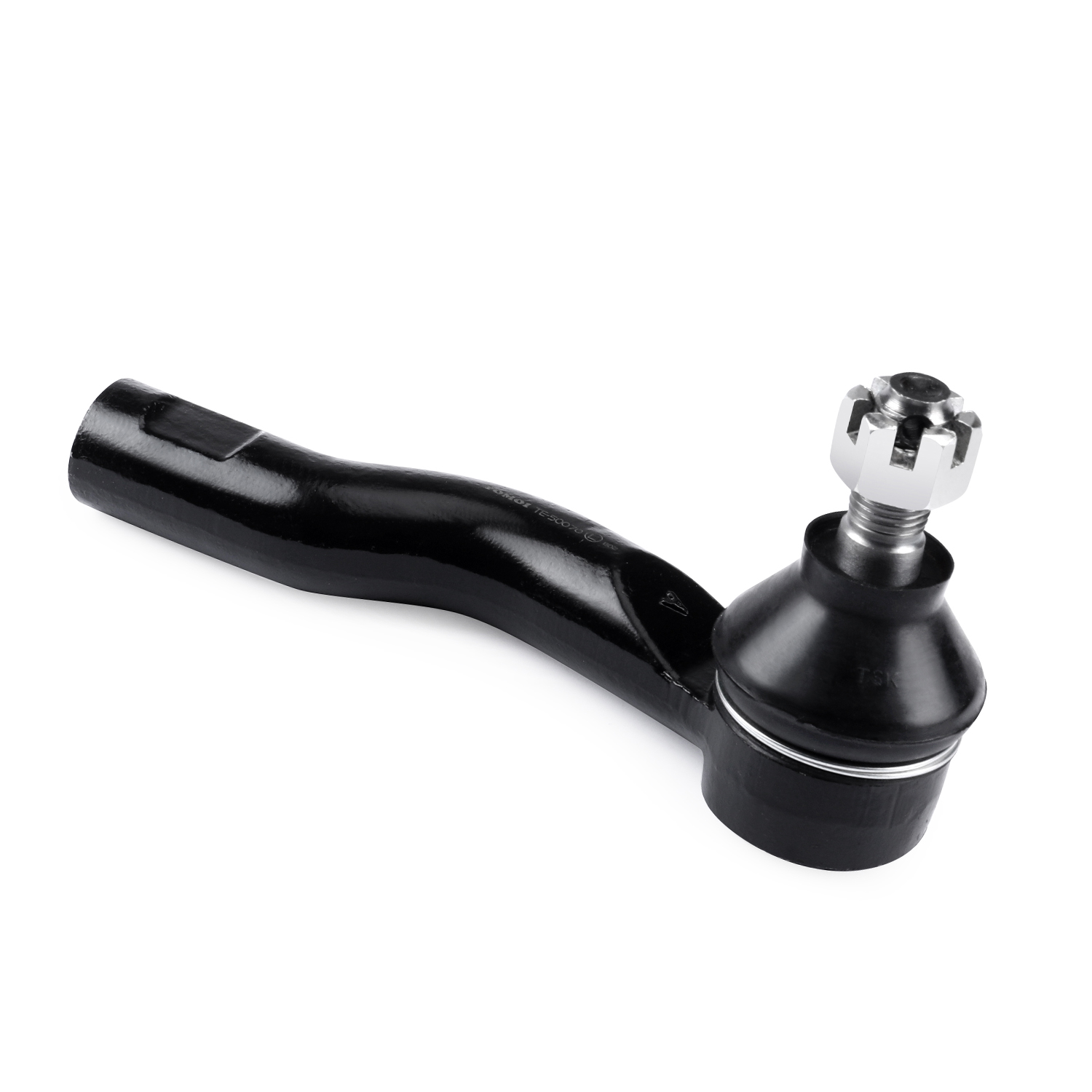

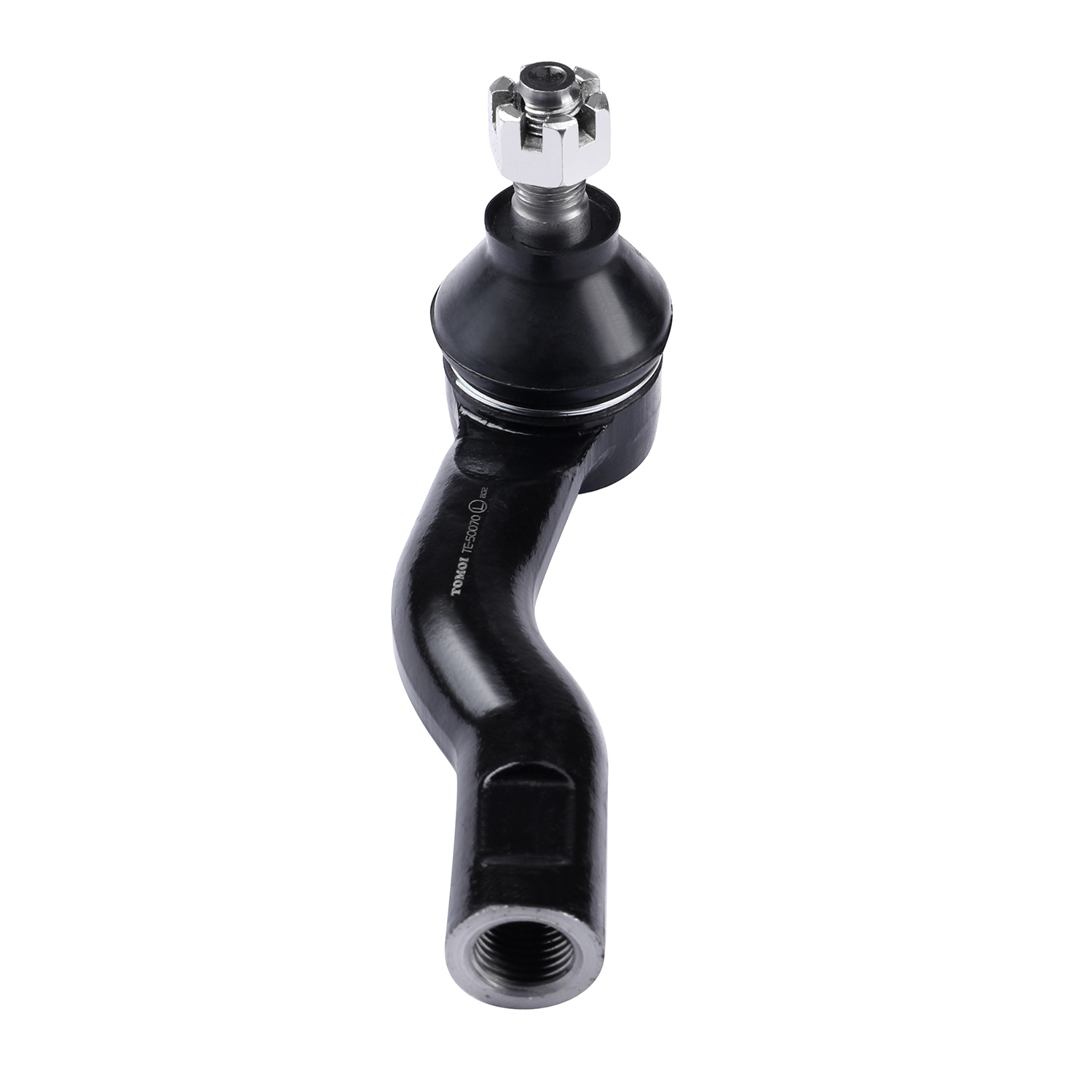

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
TOYOTA
CALDINA
| Chassis No. | Year | Configuration |
|---|---|---|
| ZZT241W | 2002.09-2007.06 | 1.8L Patrol 1ZZFE EFI (132 hp / 97 kW) Front - wheel drive (2WD). RHD |
| AZT241W | 2002.09-2007.06 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
ESQUIRE
| Chassis No. | Year | Configuration |
|---|---|---|
| ZWR80G | 2014.10-2021.12 | 1.8L Patrol 2ZRFXE EFI (99 hp / 79 kW) Front - wheel drive (2WD). RHD |
| ZRR80G | 2014.10-2021.12 | 2.0L Patrol 3ZRFAE EFI (151 hp / 111 kW) Front - wheel drive (2WD). RHD |
| ZRR85G | 2014.10-2021.12 | 2.0L Patrol 3ZRFAE EFI (151 hp / 111 kW) Four - wheel drive (4WD). RHD |
ISIS
| Chassis No. | Year | Configuration |
|---|---|---|
| ANM10W | 2004.09-2009.09 | 2.0L Patrol 1AZFSE D-4 (155 hp / 114 kW) Front - wheel drive (2WD). RHD |
NOAH
| Chassis No. | Year | Configuration |
|---|---|---|
| AZR60G | 2001.11-2004.08 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
| AZR65G | 2001.11-2004.08 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Four - wheel drive (4WD). RHD |
| AZR60G | 2004.08-2007.06 | 2.0L Patrol 1AZFSE D-4 (155 hp / 114 kW) Front - wheel drive (2WD). RHD |
| AZR65G | 2004.08-2007.06 | 2.0L Patrol 1AZFSE D-4 (155 hp / 114 kW) Four - wheel drive (4WD). RHD |
| ZRR75G | 2007.06-2010.04 | 2.0L Patrol 3ZRFE EFI (140 hp / 103 kW) Four - wheel drive (4WD). RHD |
| ZRR70G | 2007.06-2010.04 | 2.0L Patrol 3ZRFE EFI (143 hp / 105 kW) Front - wheel drive (2WD). RHD |
| ZWR80W | 2014.01-2021.12 | 1.8L Patrol 2ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD |
| ZRR80W | 2014.01-2021.12 | 2.0L Patrol 3ZRFAE EFI (151 hp / 111 kW) Front - wheel drive (2WD). RHD |
| ZRR85W | 2014.01-2021.12 | 2.0L Patrol 3ZRFAE EFI (151 hp / 111 kW) Four - wheel drive (4WD). RHD |
RAV4
| Chassis No. | Year | Configuration |
|---|---|---|
| ZCA25W | 2000.05-2005.11 | 1.8L Patrol 1ZZFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). RHD |
| ZCA26W | 2000.05-2005.11 | 1.8L Patrol 1ZZFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). RHD |
| ACA20L | 2000.05-2005.11 | 2.0L Patrol 1AZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). LHD EUR |
| ACA21L | 2000.05-2005.11 | 2.0L Patrol 1AZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). LHD EUR |
| ACA20W | 2000.05-2005.11 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Four - wheel drive (4WD). RHD |
| ACA21W | 2000.05-2005.11 | 2.0L Patrol 1AZFSE D-4 (155 hp / 114 kW) Four - wheel drive (4WD). RHD |
| ACA21L | 2000.08-2003.07 | 2.0L Patrol 1AZFE EFI (147 hp / 108 kW) Four - wheel drive (4WD). LHD CND |
| ACA21L | 2000.08-2003.07 | 2.0L Patrol 1AZFE EFI (147 hp / 108 kW) Four - wheel drive (4WD). LHD USA |
| ACA26L | 2000.08-2003.07 | 2.0L Patrol 1AZFE EFI (148 hp / 109 kW) Front - wheel drive (2WD). LHD USA |
| ACA20L | 2000.08-2003.07 | 2.0L Patrol 1AZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). LHD GEN |
| ZCA25L | 2000.08-2005.11 | 1.8L Patrol 1ZZFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). LHD EUR |
| ZCA26L | 2000.08-2005.11 | 1.8L Patrol 1ZZFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). LHD EUR |
| ACA21L | 2000.08-2005.11 | 2.0L Patrol 1AZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). LHD GCC |
| ACA20L | 2000.08-2005.11 | 2.0L Patrol 1AZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). LHD GCC |
| ACA21L | 2000.08-2005.11 | 2.0L Patrol 1AZFE EFI (150 hp / 110 kW) Four - wheel drive (4WD). LHD GEN |
| CLA21L | 2001.05-2005.11 | 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four - wheel drive (4WD). LHD EUR |
| CLA20L | 2001.05-2005.11 | 2.0L Diesel 1CDFTV (116 hp / 85 kW) Four - wheel drive (4WD). LHD EUR |
| ACA28L | 2003.07-2005.11 | 2.4L Patrol 2AZFE EFI (161 hp / 118 kW) Front - wheel drive (2WD). LHD USA |
| ACA23L | 2003.07-2005.11 | 2.4L Patrol 2AZFE EFI (161 hp / 118 kW) Four - wheel drive (4WD). LHD CND |
| ACA23L | 2003.07-2005.11 | 2.4L Patrol 2AZFE EFI (161 hp / 118 kW) Four - wheel drive (4WD). LHD USA |
VOXY
| Chassis No. | Year | Configuration |
|---|---|---|
| AZR60G | 2001.11-2004.08 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
| AZR65G | 2001.11-2004.08 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Four - wheel drive (4WD). RHD |
| AZR60G | 2004.08-2007.06 | 2.0L Patrol 1AZFSE D-4 (155 hp / 114 kW) Front - wheel drive (2WD). RHD |
| AZR65G | 2004.08-2007.06 | 2.0L Patrol 1AZFSE D-4 (155 hp / 114 kW) Four - wheel drive (4WD). RHD |
| ZRR75G | 2007.06-2010.04 | 2.0L Patrol 3ZRFE EFI (140 hp / 103 kW) Four - wheel drive (4WD). RHD |
| ZRR70G | 2007.06-2010.04 | 2.0L Patrol 3ZRFE EFI (143 hp / 105 kW) Front - wheel drive (2WD). RHD |
| ZWR80W | 2014.01-2021.12 | 1.8L Patrol 2ZRFXE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD |
| ZRR80W | 2014.01-2021.12 | 2.0L Patrol 3ZRFAE EFI (151 hp / 111 kW) Front - wheel drive (2WD). RHD |
| ZRR85W | 2014.01-2021.12 | 2.0L Patrol 3ZRFAE EFI (151 hp / 111 kW) Four - wheel drive (4WD). RHD |
WISH
| Chassis No. | Year | Configuration |
|---|---|---|
| ANE11W | 2003.04-2009.03 | 2.0L Patrol 1AZFSE D-4 (155 hp / 114 kW) Front - wheel drive (2WD). RHD |
| ZGE20W | 2009.03-2017.10 | 1.8L Patrol 2ZRFAE EFI (143 hp / 105 kW) Front - wheel drive (2WD). RHD |
| ZGE22W | 2009.03-2017.10 | 2.0L Patrol 3ZRFAE EFI (158 hp / 116 kW) Front - wheel drive (2WD). RHD |
