- 48520-31G25

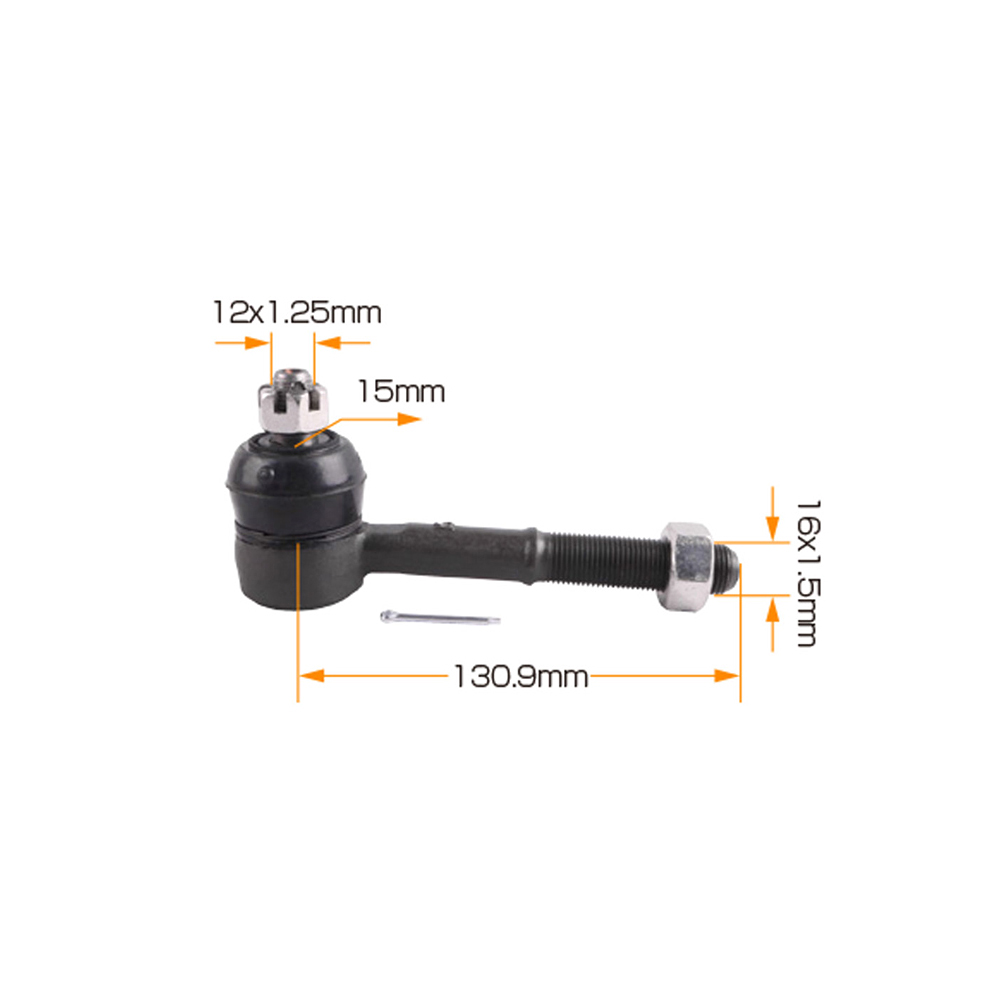

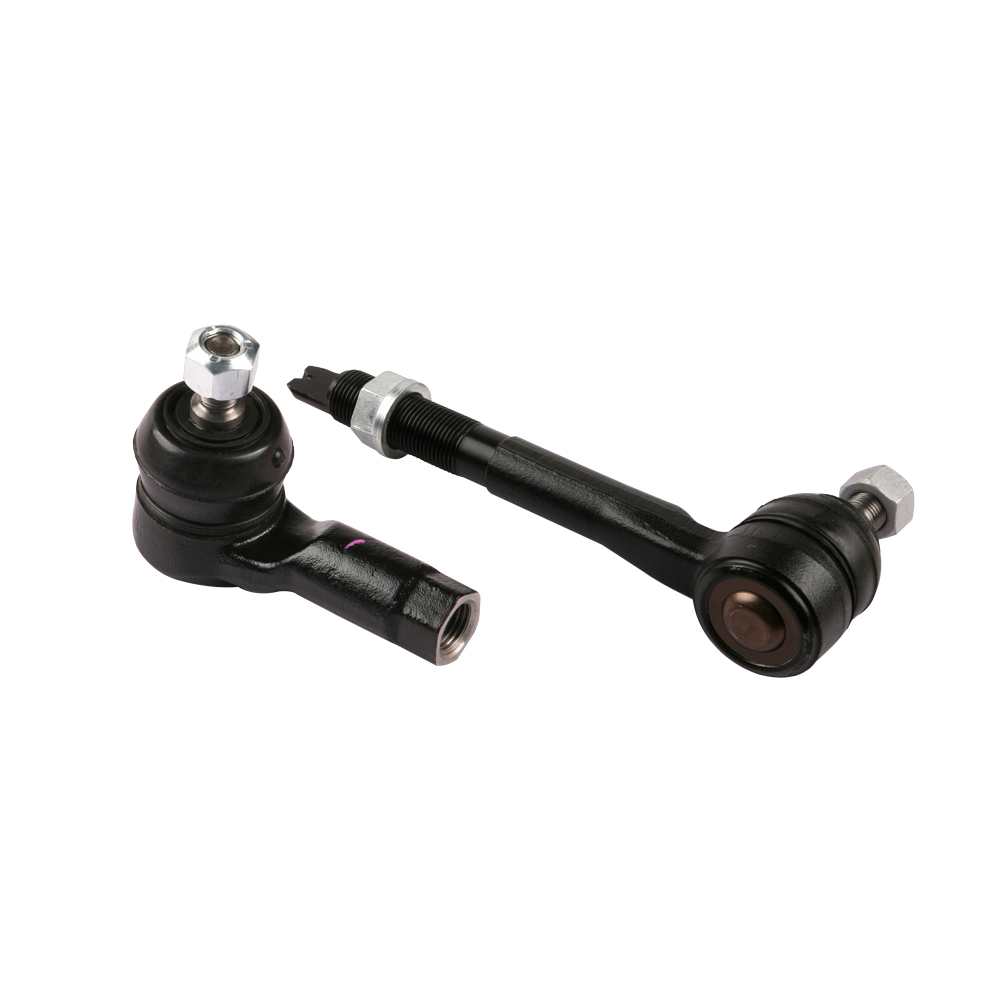

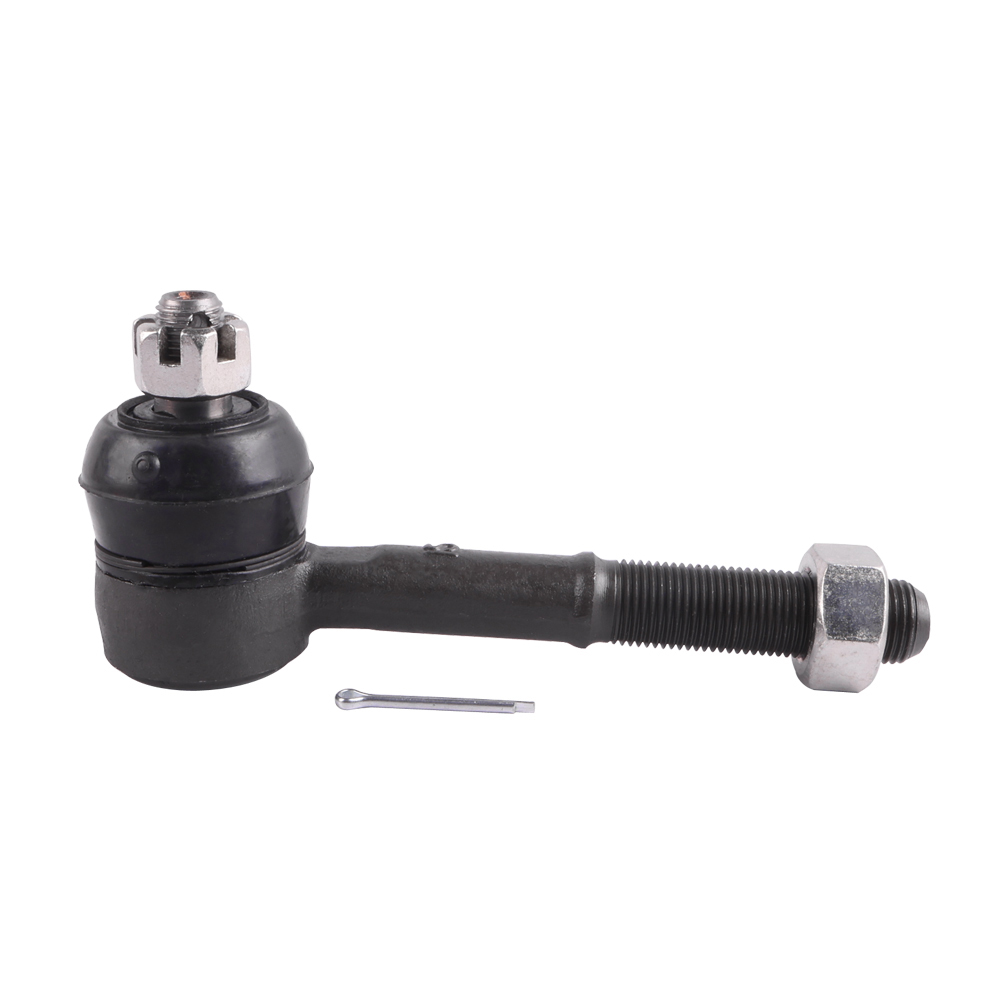

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
Chassis No. | Year | Configuration |
---|---|---|
BMD21 | 1988.11-1992.08 | 2.7L Diesel TD27 (99 hp / 73 kW) Four - wheel drive (4WD). RHD |
BMD21 | 1988.11-1992.08 | 2.7L Diesel TD27 (99 hp / 73 kW) Four - wheel drive (4WD). RHD |
QMD21 | 1989.09-1992.08 | 2.0L Patrol NA20S Карбюратор (91 hp / 67 kW) Four - wheel drive (4WD). RHD |
QYD21 | 1989.09-1992.08 | 2.0L Patrol NA20S Карбюратор (91 hp / 67 kW) Four - wheel drive (4WD). RHD |
QMD21 | 1989.09-1992.08 | 2.0L Patrol NA20S Карбюратор (91 hp / 67 kW) Four - wheel drive (4WD). RHD |
QYD21 | 1989.09-1992.08 | 2.0L Patrol NA20S Карбюратор (91 hp / 67 kW) Four - wheel drive (4WD). RHD |
BMD21 | 1989.09-1992.08 | 2.7L Diesel TD27 (99 hp / 73 kW) Four - wheel drive (4WD). RHD |
BMD21 | 1989.09-1992.08 | 2.7L Diesel TD27 (99 hp / 73 kW) Four - wheel drive (4WD). RHD |
BMD21 | 1992.08-1992.08 | 2.7L Diesel TD27T (115 hp / 85 kW) Four - wheel drive (4WD). RHD |
BMD21 | 1992.08-1992.08 | 2.7L Diesel TD27T (115 hp / 85 kW) Four - wheel drive (4WD). RHD |
Chassis No. | Year | Configuration |
---|---|---|
VBYD21 | 1986.08-1993.01 | 2.7L Diesel TD27 (79 hp / 58 kW) Four - wheel drive (4WD). RHD |
VBYD21 | 1986.08-1993.01 | 2.7L Diesel TD27 (79 hp / 58 kW) Four - wheel drive (4WD). RHD |
WD21. 2400cc. 3D. Z24I. 4WD. | 1987.08-1992.07 | 2.4L Patrol Z24I SPI (101 hp / 74 kW) Four - wheel drive (4WD). LHD |
WD21. 2400cc. 3D. Z24I. 4WD. | 1987.08-1992.07 | 2.4L Patrol Z24I SPI (101 hp / 74 kW) Four - wheel drive (4WD). LHD |
WBYD21 | 1988.11-1993.01 | 2.7L Diesel TD27T (100 hp / 74 kW) Four - wheel drive (4WD). RHD |
WBYD21 | 1988.11-1993.01 | 2.7L Diesel TD27T (100 hp / 74 kW) Four - wheel drive (4WD). RHD |
WD21. 2700cc. TD27T. Turbo. Диз. 4WD. | 1989.02-1992.07 | 2.7L Diesel TD27T (99 hp / 73 kW) Four - wheel drive (4WD). LHD |
WD21. 2700cc. 3D. TD27T. Turbo. Диз. 4WD. | 1989.02-1992.07 | 2.7L Diesel TD27T (99 hp / 73 kW) Four - wheel drive (4WD). LHD |
WD21. 2700cc. TD27T. Turbo. Диз. 4WD. | 1989.02-1992.07 | 2.7L Diesel TD27T (99 hp / 73 kW) Four - wheel drive (4WD). LHD |
WD21. 2700cc. 3D. TD27T. Turbo. Диз. 4WD. | 1989.02-1992.07 | 2.7L Diesel TD27T (99 hp / 73 kW) Four - wheel drive (4WD). LHD |
WBYD21 | 1989.10-1989.10 | 2.7L Diesel TD27 (79 hp / 58 kW) Four - wheel drive (4WD). RHD |
WBYD21 | 1989.10-1989.10 | 2.7L Diesel TD27 (79 hp / 58 kW) Four - wheel drive (4WD). RHD |
WHYD21 | 1989.10-1989.10 | 3.0L Patrol VG30I Карбюратор (146 hp / 107 kW) Four - wheel drive (4WD). RHD |
WHYD21 | 1989.10-1989.10 | 3.0L Patrol VG30I Карбюратор (146 hp / 107 kW) Four - wheel drive (4WD). RHD |
WBYD21 | 1989.10-1993.01 | 2.7L Diesel TD27T (100 hp / 74 kW) Four - wheel drive (4WD). RHD |
WBYD21 | 1989.10-1993.01 | 2.7L Diesel TD27T (100 hp / 74 kW) Four - wheel drive (4WD). RHD |
WHYD21 | 1989.10-1993.01 | 3.0L Patrol VG30E EGI (155 hp / 114 kW) Four - wheel drive (4WD). RHD |
WHYD21 | 1989.10-1993.01 | 3.0L Patrol VG30E EGI (155 hp / 114 kW) Four - wheel drive (4WD). RHD |
WHYD21 | 1989.10-1993.01 | 3.0L Patrol VG30E EGI (155 hp / 114 kW) Four - wheel drive (4WD). RHD |
WHYD21 | 1989.10-1993.01 | 3.0L Patrol VG30E EGI (155 hp / 114 kW) Four - wheel drive (4WD). RHD |
WD21. 3000cc. VG30E. 4WD. | 1990.01-1992.07 | 3.0L Patrol VG30E EGI (148 hp / 109 kW) Four - wheel drive (4WD). LHD |
WD21. 3000cc. 3D. VG30E. 4WD. | 1990.01-1992.07 | 3.0L Patrol VG30E EGI (148 hp / 109 kW) Four - wheel drive (4WD). LHD |
WD21. 3000cc. VG30E. 4WD. | 1990.01-1992.07 | 3.0L Patrol VG30E EGI (148 hp / 109 kW) Four - wheel drive (4WD). LHD |
WD21. 3000cc. 3D. VG30E. 4WD. | 1990.01-1992.07 | 3.0L Patrol VG30E EGI (148 hp / 109 kW) Four - wheel drive (4WD). LHD |
