OEM List- 53560-SM4-003
- 53560-SM4-004

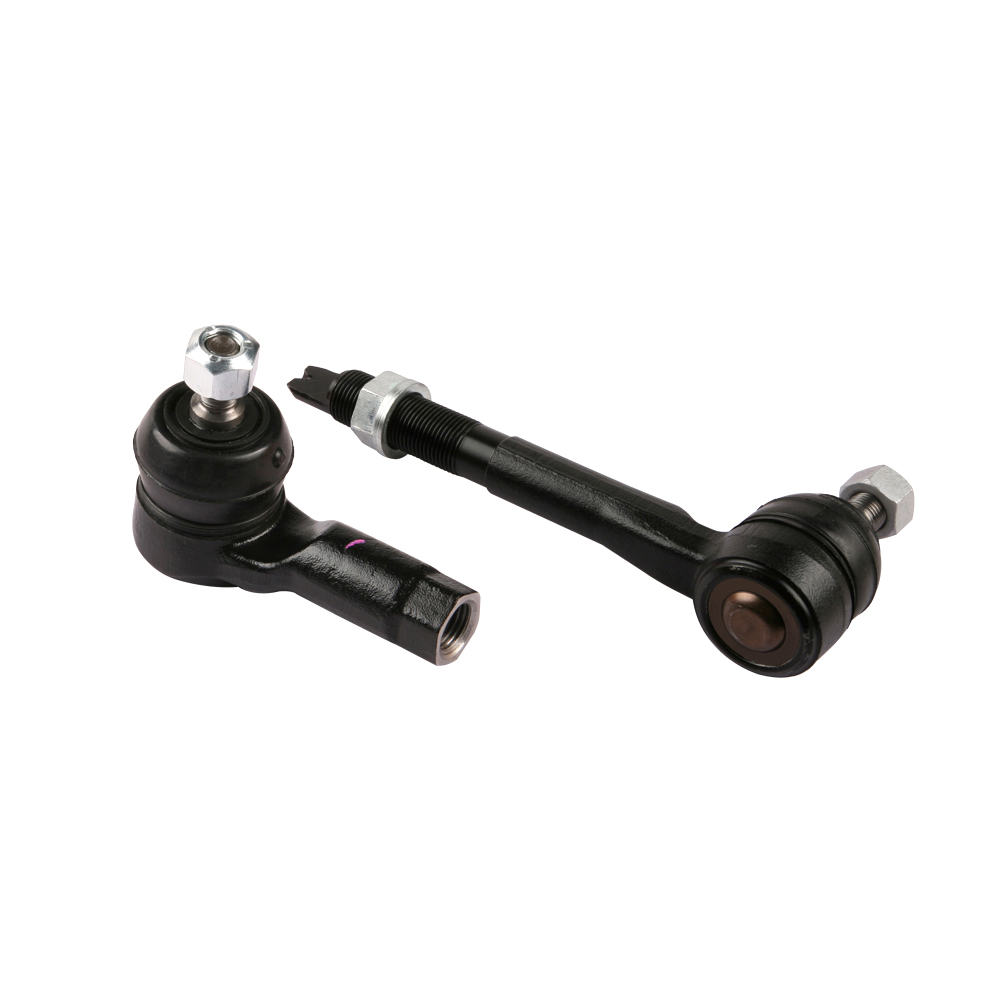

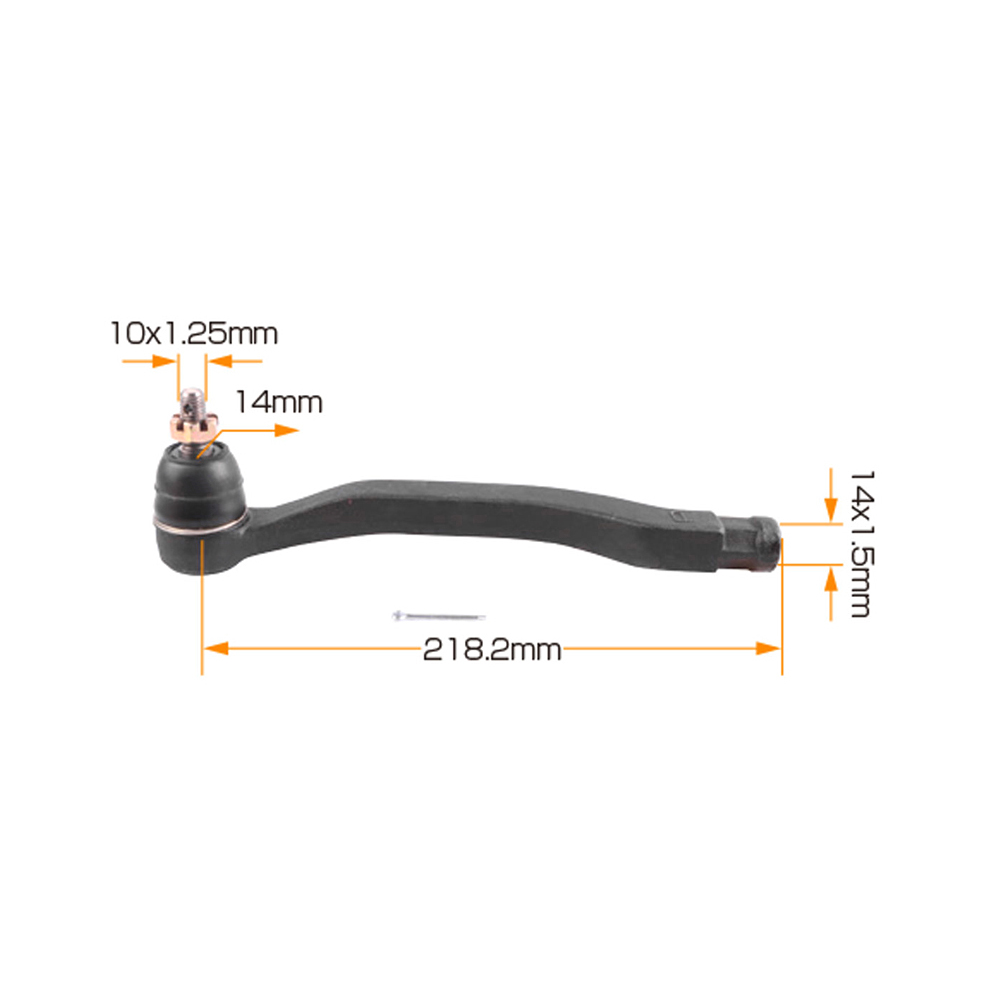

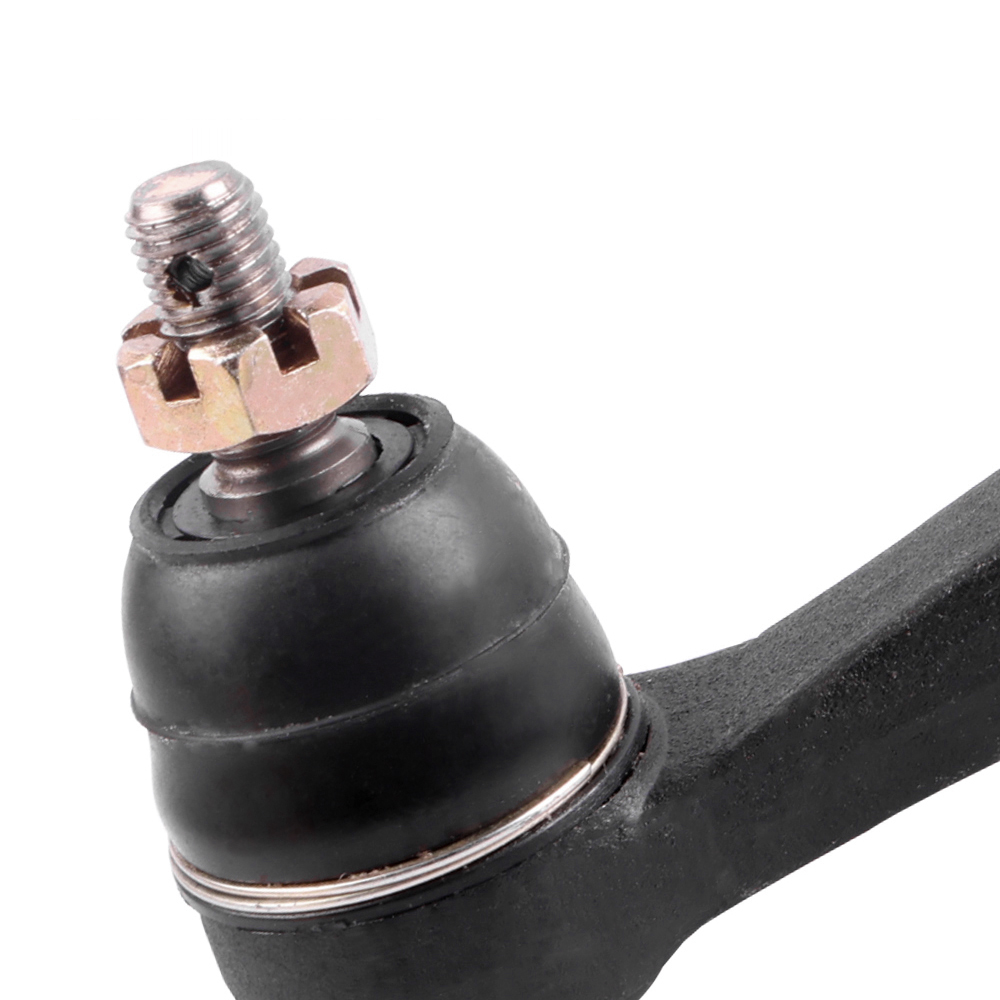

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
HONDA
ACCORD
| Chassis No. | Year | Configuration |
|---|
| CB1 | 1989.09-1993.09 | E-CB1 1.8L Patrol F18A Карбюратор (105 hp / 77 kW) Front - wheel drive (2WD). RHD |
| CB1 | 1989.09-1993.09 | E-CB1 1.8L Patrol F18A Карбюратор (105 hp / 77 kW) Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.09 | E-CB3 2.0L Patrol F20A PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.09 | E-CB3 2.0L Patrol F20A PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.09 | E-CB3 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.09 | E-CB3 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.09 | E-CB3 2.0L Patrol F20A Карбюратор Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.09 | E-CB3 2.0L Patrol F20A Карбюратор Front - wheel drive (2WD). RHD |
ACCORD COUPE
| Chassis No. | Year | Configuration |
|---|
| CB6 | 1990.04-1992.10 | E-CB6 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). LHD |
| CB6 | 1990.04-1994.02 | E-CB6 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
| CB6 | 1990.04-1994.02 | E-CB6 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
| CB7 | 1992.01-1994.02 | E-CB7 2.2L Patrol F22A PGM-FI Front - wheel drive (2WD). RHD |
| CB7 | 1992.01-1994.02 | E-CB7 2.2L Patrol F22A PGM-FI Front - wheel drive (2WD). RHD |
ACCORD WAGON
| Chassis No. | Year | Configuration |
|---|
| CB9 | 1991.04-1994.03 | E-CB9 2.2L Patrol F22A PGM-FI Front - wheel drive (2WD). RHD |
| CB9 | 1991.04-1994.03 | E-CB9 2.2L Patrol F22A PGM-FI Front - wheel drive (2WD). RHD |
ASCOT
| Chassis No. | Year | Configuration |
|---|
| CB1 | 1989.09-1993.10 | E-CB1 1.8L Patrol F18A Карбюратор Front - wheel drive (2WD). RHD |
| CB1 | 1989.09-1993.10 | E-CB1 1.8L Patrol F18A Карбюратор Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.10 | E-CB3 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
| CB3 | 1989.09-1993.10 | E-CB3 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
ASCOT INNOVA
| Chassis No. | Year | Configuration |
|---|
| CB3 | 1992.03-1997.07 | E-CB3 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
| CB3 | 1992.03-1997.07 | E-CB3 2.0L Patrol F20A PGM-FI Front - wheel drive (2WD). RHD |
| CC4 | 1992.03-1997.09 | E-CC4 2.3L Patrol H23A PGM-FI Front - wheel drive (2WD). RHD |
| CC4 | 1992.03-1997.09 | E-CC4 2.3L Patrol H23A PGM-FI Front - wheel drive (2WD). RHD |
