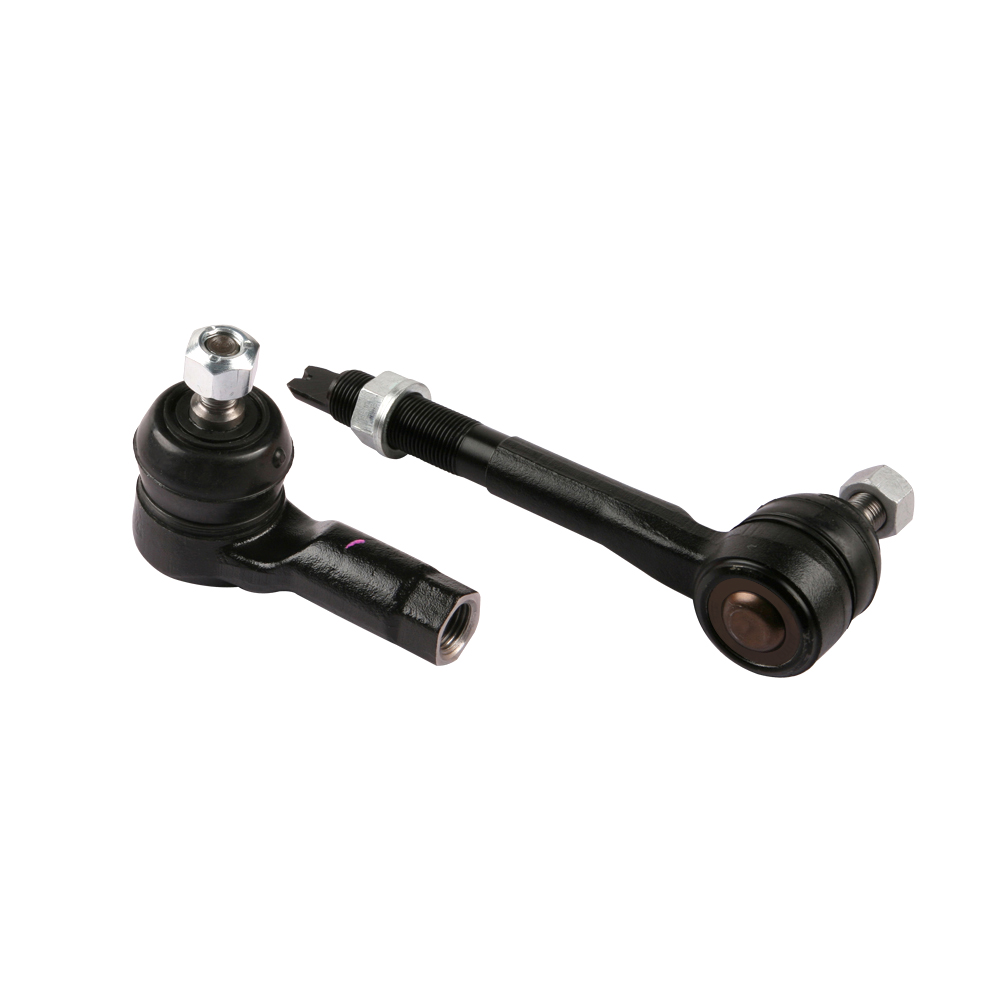

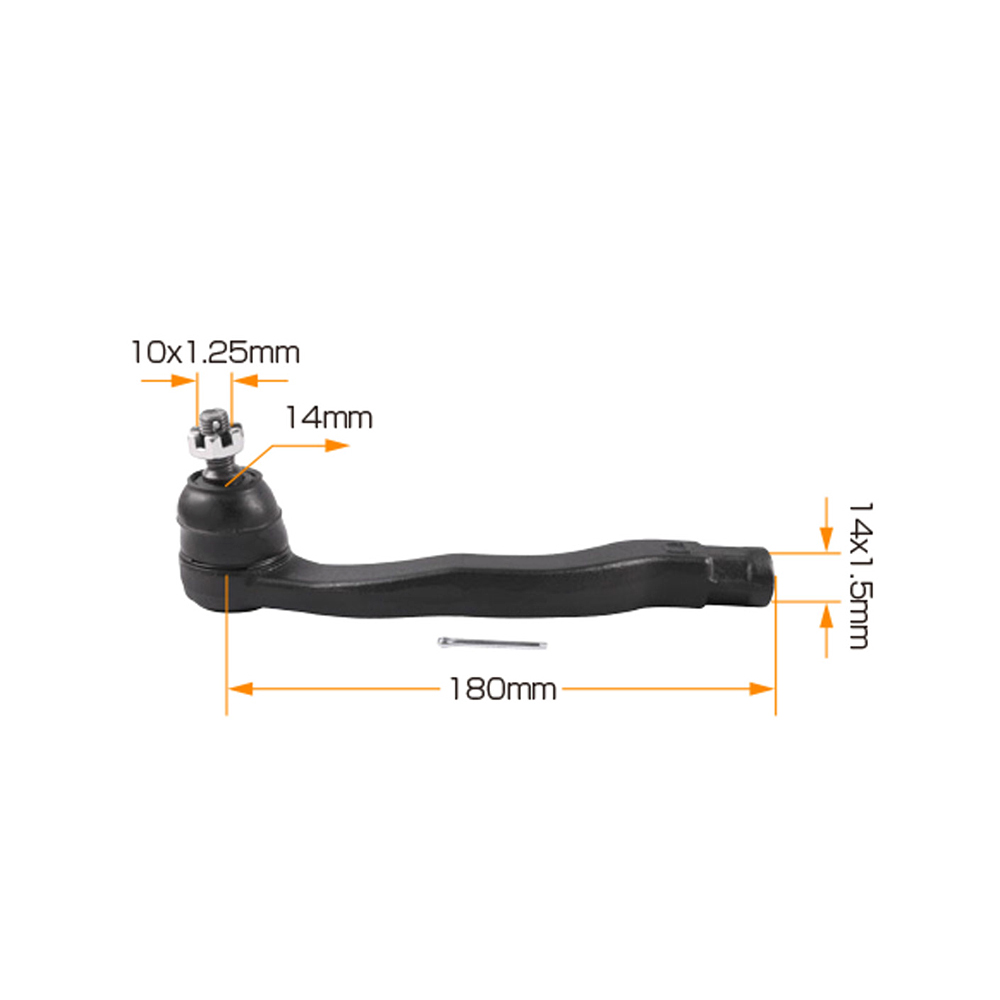

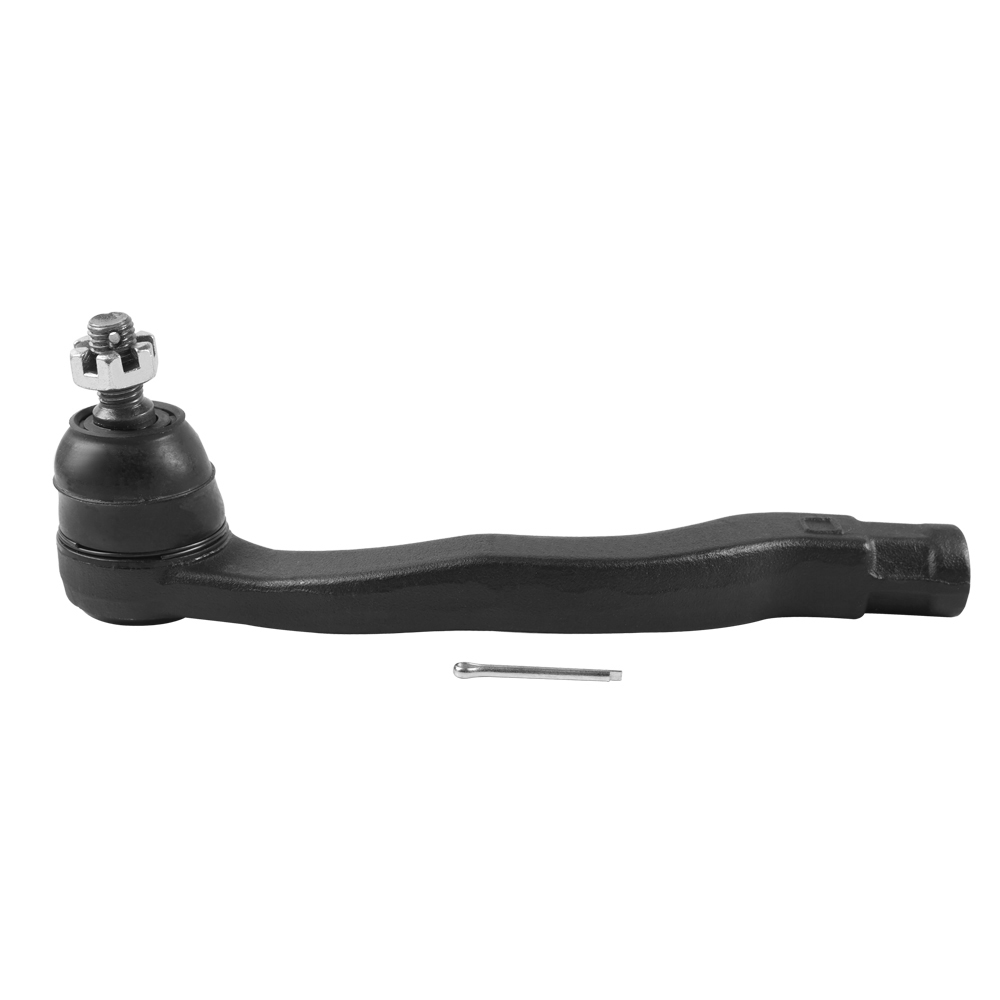

TIE ROD END TE-30005L

MASUMA No.
ME-6191L
TOMOI No.
TE-30005L
TRW No.
JTE228
555 No.
SE-6191L
CTR No.
CE0-193L

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 53560-S04-003
  • 53560-S04-013
  • 53560-SR0-A01
  • 53560-SR3-003
  • 53560-ST7-003

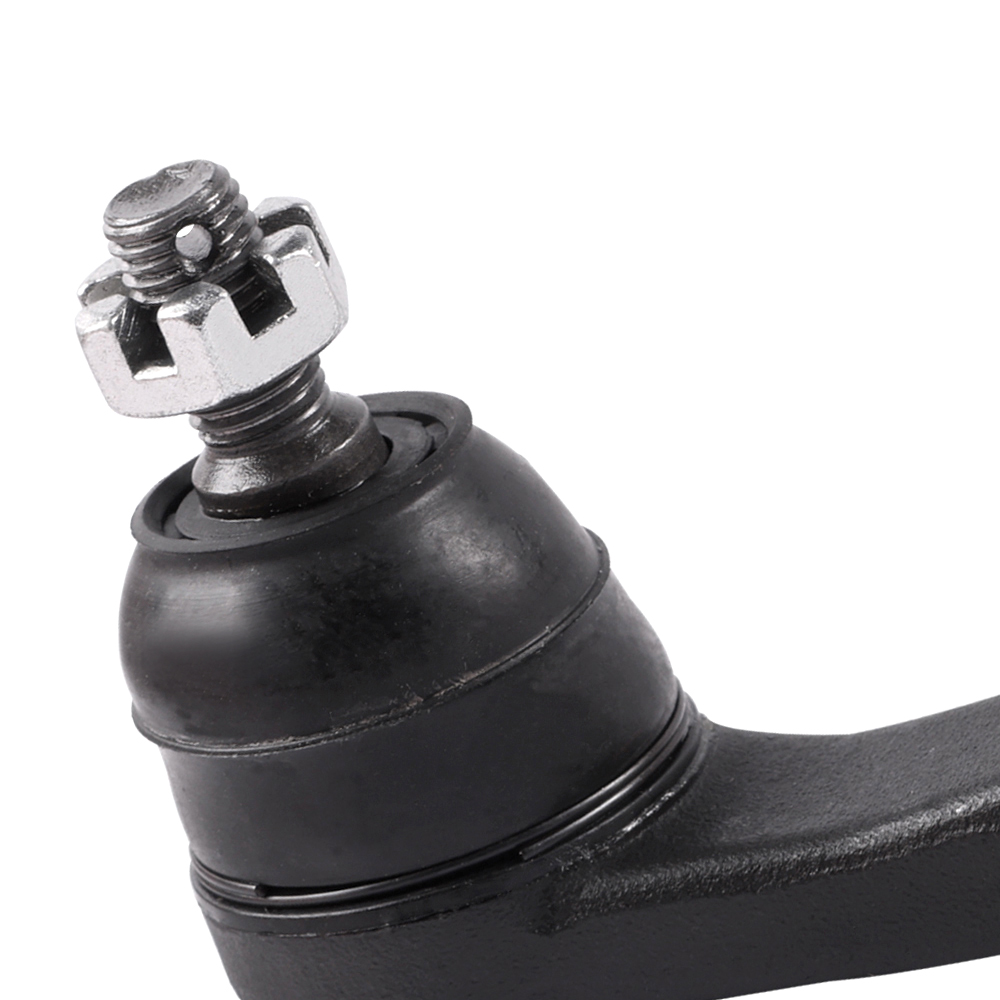

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

HONDA
CIVIC
Chassis No.YearConfiguration
EG31991.08-1995.09E-EG3 1.3L Patrol D13B Карбюратор Front - wheel drive (2WD). RHD
EG41991.08-1995.09E-EG4 1.5L Patrol D15B PGM-FI Front - wheel drive (2WD). RHD
EG41991.08-1995.09E-EG4 1.5L Patrol D15B Карбюратор Front - wheel drive (2WD). RHD
EG61991.08-1995.09E-EG6 1.6L Patrol B16A PGM-FI Front - wheel drive (2WD). RHD
EG51992.05-1995.09E-EG5 1.6L Patrol ZC PGM-FI Front - wheel drive (2WD). RHD
EK91997.07-1998.07E-EK9 1.6L Patrol B16B PGM-FI Front - wheel drive (2WD). RHD
EK91998.07-2000.09GF-EK9 1.6L Patrol B16B PGM-FI Front - wheel drive (2WD). RHD
CIVIC COUPE
Chassis No.YearConfiguration
EJ11993.02-1996.01E-EJ1 1.6L Patrol D16A PGM-FI Front - wheel drive (2WD). RHD
CIVIC FERIO
Chassis No.YearConfiguration
EG71991.08-1995.09E-EG7 1.3L Patrol D13B Карбюратор Front - wheel drive (2WD). RHD
EG81991.08-1995.09E-EG8 1.5L Patrol D15B PGM-FI Front - wheel drive (2WD). RHD
EG81991.08-1995.09E-EG8 1.5L Patrol D15B Карбюратор Front - wheel drive (2WD). RHD
EG91991.08-1995.09E-EG9 1.6L Patrol B16A PGM-FI Front - wheel drive (2WD). RHD
EH11991.08-1995.09E-EH1 1.6L Patrol ZC PGM-FI Four - wheel drive (4WD). RHD
EH11991.08-1995.09E-EH1 1.6L Patrol ZC Карбюратор Four - wheel drive (4WD). RHD
EJ31993.09-1995.09E-EJ3 1.6L Patrol ZC PGM-FI Front - wheel drive (2WD). RHD
CIVIC GX
Chassis No.YearConfiguration
EN11999.02-2001.01NA-EN1 1.6L Газ D16A LPG Front - wheel drive (2WD). RHD
CR-V
Chassis No.YearConfiguration
RD11995.10-1997.09E-RD1 2.0L Patrol B20B PGM-FI Four - wheel drive (4WD). RHD
RD11997.09-1998.12E-RD1 2.0L Patrol B20B PGM-FI Four - wheel drive (4WD). RHD
2000cc. KY. RVi. B20B2. 4WD1998.01-1998.122.0L Patrol B20B2 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi. B20B3. 4WD1998.01-1998.122.0L Patrol B20B3 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KS. BASE. B20B3. 4WD1998.01-1998.122.0L Patrol B20B3 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi. B20B3. 4WD1998.01-1998.122.0L Patrol B20B3 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
RD11998.12-2001.09GF-RD1 2.0L Patrol B20B PGM-FI Four - wheel drive (4WD). RHD
RD21998.12-2001.09GF-RD2 2.0L Patrol B20B PGM-FI Front - wheel drive (2WD). RHD
2000cc. KY. RVi. B20B9. 4WD1999.01-1999.122.0L Patrol B20B9 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KY. RVSi. B20B9. 4WD1999.01-1999.122.0L Patrol B20B9 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi. B20Z1. 4WD1999.01-1999.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi. B20Z1. 4WD1999.01-1999.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KS. BASE. B20Z1. 4WD1999.01-1999.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi-N. B20Z3. 4WD1999.01-1999.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi-N. B20Z3. 4WD1999.01-1999.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KY. RVSi. B20B9. 4WD2000.01-2000.122.0L Patrol B20B9 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KY. RVi. B20B9. 4WD2000.01-2000.122.0L Patrol B20B9 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi. B20Z1. 4WD2000.01-2000.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi. B20Z1. UK4WD2000.01-2000.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi. B20Z1. UK4WD2000.01-2000.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi. B20Z1. 4WD2000.01-2000.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KS. BASE. B20Z1. 4WD2000.01-2000.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi-N. B20Z3. 4WD2000.01-2000.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi-N. B20Z3. UK4WD2000.01-2000.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi-N. B20Z3. UK4WD2000.01-2000.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi-N. B20Z3. 4WD2000.01-2000.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KY. RVi. B20B9. 4WD2001.01-2001.122.0L Patrol B20B9 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KY. RVSi. B20B9. 4WD2001.01-2001.122.0L Patrol B20B9 PGM-FI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi. B20Z1. 4WD2001.01-2001.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi. B20Z1. UK4WD2001.01-2001.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi. B20Z1. 4WD2001.01-2001.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi. B20Z1. UK4WD2001.01-2001.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KS. BASE. B20Z1. 4WD2001.01-2001.122.0L Patrol B20Z1 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi-N. B20Z3. 4WD2001.01-2001.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi-N. B20Z3. 4WD2001.01-2001.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVSi-N. B20Z3. UK4WD2001.01-2001.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
2000cc. KG. RVi-N. B20Z3. UK4WD2001.01-2001.122.0L Patrol B20Z3 PGM-FI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
CR-X DELSOL
Chassis No.YearConfiguration
EG11992.02-1995.10E-EG1 1.5L Patrol D15B PGM-FI Front - wheel drive (2WD). RHD
EG21992.02-1997.07E-EG2 1.6L Patrol B16A PGM-FI Front - wheel drive (2WD). RHD
EJ41995.09-1997.07E-EJ4 1.6L Patrol D16A PGM-FI Front - wheel drive (2WD). RHD
DOMANI
Chassis No.YearConfiguration
MA41992.10-1995.09E-MA4 1.6L Patrol ZC PGM-FI Front - wheel drive (2WD). RHD
MA41992.10-1997.01E-MA4 1.6L Patrol ZC PGM-FI Front - wheel drive (2WD). RHD
MA51992.10-1997.01E-MA5 1.8L Patrol B18B PGM-FI Front - wheel drive (2WD). RHD
MA61992.10-1997.01E-MA6 1.6L Patrol ZC PGM-FI Four - wheel drive (4WD). RHD
MA71994.02-1997.01E-MA7 1.5L Patrol D15B PGM-FI Front - wheel drive (2WD). RHD
MB31997.01-1999.01E-MB3 1.5L Patrol D15B PGM-FI Front - wheel drive (2WD). RHD
MB51997.01-1999.01E-MB5 1.6L Patrol D16A PGM-FI Four - wheel drive (4WD). RHD
MB31999.01-2000.08GF-MB3 1.5L Patrol D15B PGM-FI Front - wheel drive (2WD). RHD
MB51999.01-2000.08GF-MB5 1.6L Patrol D16A PGM-FI Four - wheel drive (4WD). RHD
INTEGRA
Chassis No.YearConfiguration
DC11993.05-1995.09E-DC1 1.6L Patrol ZC Карбюратор (120 hp / 88 kW) Front - wheel drive (2WD). RHD
DC11993.05-1999.07E-DC1 1.6L Patrol ZC PGM-FI (120 hp / 88 kW) Front - wheel drive (2WD). RHD
DC21993.05-1999.07E-DC2 1.8L Patrol B18C PGM-FI (180 hp / 132 kW) Front - wheel drive (2WD). RHD
DB61993.07-1995.09E-DB6 1.6L Patrol ZC Карбюратор (120 hp / 88 kW) Front - wheel drive (2WD). RHD
DB71993.07-1995.09E-DB7 1.8L Patrol B18B PGM-FI (170 hp / 125 kW) Front - wheel drive (2WD). RHD
DB61993.07-1999.07E-DB6 1.6L Patrol ZC PGM-FI (120 hp / 88 kW) Front - wheel drive (2WD). RHD
DB81993.07-1999.07E-DB8 1.8L Patrol B18C PGM-FI (180 hp / 132 kW) Front - wheel drive (2WD). RHD
DB91993.09-1999.07E-DB9 1.6L Patrol ZC PGM-FI (120 hp / 88 kW) Four - wheel drive (4WD). RHD
DB61999.07-2001.07GF-DB6 1.6L Patrol ZC PGM-FI (120 hp / 88 kW) Front - wheel drive (2WD). RHD
DB81999.07-2001.07GF-DB8 1.8L Patrol B18C PGM-FI (200 hp / 147 kW) Front - wheel drive (2WD). RHD
DB91999.07-2001.07GF-DB9 1.6L Patrol ZC PGM-FI (120 hp / 88 kW) Four - wheel drive (4WD). RHD
DC11999.07-2001.07GF-DC1 1.6L Patrol ZC PGM-FI (120 hp / 88 kW) Front - wheel drive (2WD). RHD
DC21999.07-2001.07GF-DC2 1.8L Patrol B18C PGM-FI (200 hp / 147 kW) Front - wheel drive (2WD). RHD
ORTHIA
Chassis No.YearConfiguration
EL21999.06-2002.01GF-EL2 2.0L Patrol B20B PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD
PARTNER
Chassis No.YearConfiguration
EY61996.02-1999.05R-EY6 1.3L Patrol D13B PGM-FI (91 hp / 67 kW) Front - wheel drive (2WD). RHD
EY71996.02-1999.05R-EY7 1.5L Patrol D15B PGM-FI (105 hp / 77 kW) Front - wheel drive (2WD). RHD
EY81996.02-1999.05R-EY8 1.6L Patrol D16A PGM-FI (105 hp / 77 kW) Four - wheel drive (4WD). RHD
EY91997.02-1999.05R-EY9 1.6L Patrol D16A PGM-FI (120 hp / 88 kW) Front - wheel drive (2WD). RHD
EY71999.05-2000.05GJ-EY7 1.5L Patrol D15B PGM-FI (105 hp / 77 kW) Front - wheel drive (2WD). RHD
EY81999.05-2000.05GJ-EY8 1.6L Patrol D16A PGM-FI (105 hp / 77 kW) Four - wheel drive (4WD). RHD
EY61999.05-2006.03GG-EY6 1.3L Patrol D13B PGM-FI (91 hp / 67 kW) Front - wheel drive (2WD). RHD
EY72000.05-2004.02LB-EY7 1.5L Patrol D15B PGM-FI (105 hp / 77 kW) Front - wheel drive (2WD). RHD
EY82000.05-2004.02LB-EY8 1.6L Patrol D16A PGM-FI (105 hp / 77 kW) Four - wheel drive (4WD). RHD
EY72004.02-2006.03ABE-EY7 1.5L Patrol D15B PGM-FI (105 hp / 77 kW) Front - wheel drive (2WD). RHD
EY82004.02-2006.03ABE-EY8 1.6L Patrol D16A PGM-FI (120 hp / 88 kW) Four - wheel drive (4WD). RHD
