TIE ROD END TE-12002R

TOMOI No.
TE-12002R
TRW No.
JTE315
MASUMA No.
ME-6641R
555 No.
SE-6641R
CTR No.
CE0-640R

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 31320GA190
  • 34161AL000

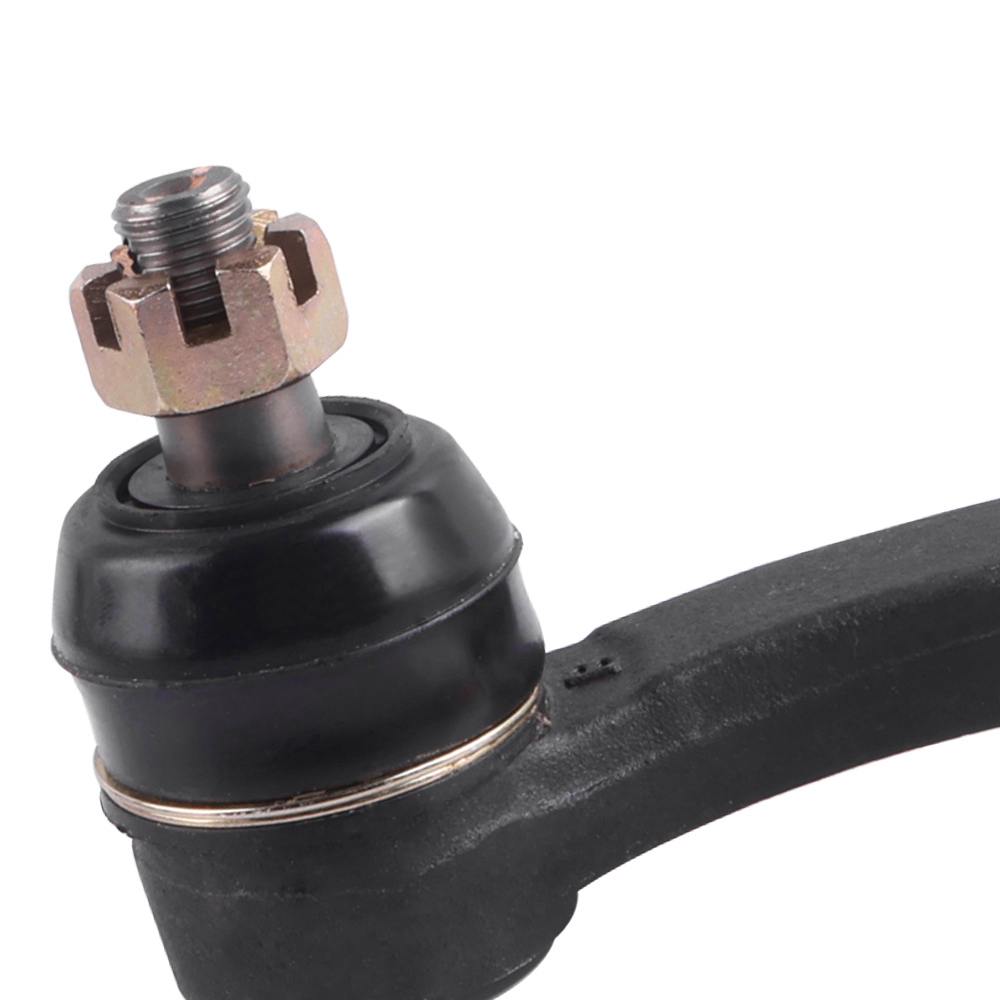

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

SUBARU
EXIGA
Chassis No.YearConfiguration
YA52009.07-2015.032.0L Patrol EJ20 EGI (150 hp / 110 kW) Four - wheel drive (4WD). RHD 204
YA52009.07-2015.032.0L Patrol EJ20 EGI (225 hp / 165 kW) Four - wheel drive (4WD). RHD 205
FORESTER
Chassis No.YearConfiguration
SH92010.07-2011.072.5L Patrol EJ25 EMPI (263 hp / 193 kW) Four - wheel drive (4WD). RHD 255
SJG2014.09-2018.072.0L Patrol FA20 D-4S (280 hp / 206 kW) Four - wheel drive (4WD). RHD 20E
IMPREZA
Chassis No.YearConfiguration
GC41992.05-1996.091.6L Patrol EJ16 (100 hp / 74 kW) Four - wheel drive (4WD). RHD
GC11992.05-2000.081.5L Patrol EJ15 (102 hp / 75 kW) Front - wheel drive (2WD). RHD
GF31992.11-1996.091.6L Patrol EJ16 (100 hp / 74 kW) Front - wheel drive (2WD). RHD
GF41993.10-1996.091.6L Patrol EJ16 (100 hp / 74 kW) Four - wheel drive (4WD). RHD
GC41994.06-1996.091.6L Patrol EJ16 (100 hp / 74 kW) Four - wheel drive (4WD). RHD
GC11994.06-1997.081.5L Patrol EJ15 (97 hp / 71 kW) Front - wheel drive (2WD). RHD
GF11994.07-2000.081.5L Patrol EJ15 (95 hp / 70 kW) Front - wheel drive (2WD). RHD
GF21996.06-2000.081.5L Patrol EJ15 (102 hp / 75 kW) Four - wheel drive (4WD). RHD
GC21996.06-2000.081.5L Patrol EJ15 (95 hp / 70 kW) Four - wheel drive (4WD). RHD
GRB2007.08-2014.042.0L Patrol EJ20 (250 hp / 184 kW) Four - wheel drive (4WD). RHD 207
LEGACY
Chassis No.YearConfiguration
BC21988.07-1992.061.8L Patrol EJ18 EGI (110 hp / 81 kW) Front - wheel drive (2WD). RHD
BC31988.08-1992.061.8L Patrol EJ18 EGI (110 hp / 81 kW) Four - wheel drive (4WD). RHD
BC41988.08-1992.062.0L Patrol EJ20 EGI (150 hp / 110 kW) Front - wheel drive (2WD). RHD
BC51988.08-1992.062.0L Patrol EJ20 EGI (150 hp / 110 kW) Four - wheel drive (4WD). RHD
BF31988.09-1992.061.8L Patrol EJ18 EGI (110 hp / 81 kW) Four - wheel drive (4WD). RHD
BF51988.09-1992.062.0L Patrol EJ20 EGI (150 hp / 110 kW) Four - wheel drive (4WD). RHD
BFA1988.09-1993.102.0L Patrol EJ20 EGI (150 hp / 110 kW) Four - wheel drive (4WD). RHD
BC51988.12-1992.062.0L Patrol EJ20 EGI (220 hp / 162 kW) Four - wheel drive (4WD). RHD
BF51989.10-1992.062.0L Patrol EJ20 EGI (220 hp / 162 kW) Four - wheel drive (4WD). RHD
BCA1990.03-1992.062.0L Patrol EJ20 EGI (150 hp / 110 kW) Four - wheel drive (4WD). RHD
BC41991.06-1992.062.0L Patrol EJ20 EGI (125 hp / 92 kW) Front - wheel drive (2WD). RHD
BFA1991.06-1992.062.0L Patrol EJ20 EGI (125 hp / 92 kW) Four - wheel drive (4WD). RHD
BF51991.06-1992.062.0L Patrol EJ20 EGI (125 hp / 92 kW) Four - wheel drive (4WD). RHD
BC51991.06-1992.062.0L Patrol EJ20 EGI (125 hp / 92 kW) Four - wheel drive (4WD). RHD
BP92008.03-2009.042.5L Patrol EJ25 EMPI (177 hp / 130 kW) Four - wheel drive (4WD). RHD 253
BP92008.03-2009.052.5L Patrol EJ25 EMPI (285 hp / 210 kW) Four - wheel drive (4WD). RHD 255
BR92010.02-2011.052.5L Patrol EJ25 EMPI (285 hp / 210 kW) Four - wheel drive (4WD). RHD 255
BM92010.02-2011.052.5L Patrol EJ25 EMPI (285 hp / 210 kW) Four - wheel drive (4WD). RHD 255
BRM2012.02-2013.042.5L Patrol FB25 EMPI (173 hp / 127 kW) Four - wheel drive (4WD). RHD 25A
B15. 2500cc. FB25. 4WD. SEDAN2014.08-...2.5L Patrol FB25 EMPI (175 hp / 129 kW) Four - wheel drive (4WD). LHD 25B 20Z
LEGACY B4
Chassis No.YearConfiguration
BL52008.06-2009.042.0L Patrol EJ20 EGI (140 hp / 103 kW) Four - wheel drive (4WD). RHD 203
BL52008.06-2009.042.0L Patrol EJ20 EGI (280 hp / 206 kW) Four - wheel drive (4WD). RHD 20Y
BL92008.06-2009.042.5L Patrol EJ25 EMPI (177 hp / 130 kW) Four - wheel drive (4WD). RHD 253
BL92008.06-2009.042.5L Patrol EJ25 EMPI (285 hp / 210 kW) Four - wheel drive (4WD). RHD 255
BM92010.02-2011.052.5L Patrol EJ25 EMPI (285 hp / 210 kW) Four - wheel drive (4WD). RHD 255
BMM2012.02-2013.042.5L Patrol FB25 EMPI (173 hp / 127 kW) Four - wheel drive (4WD). RHD 25A
BN92014.07-2020.082.5L Patrol FB25 EMPI (175 hp / 129 kW) Four - wheel drive (4WD). RHD 25A
OUTBACK
Chassis No.YearConfiguration
BS92014.07-2021.092.5L Patrol FB25 EMPI (175 hp / 129 kW) Four - wheel drive (4WD). RHD 25A
B15. 2500cc. FB25. 4WD. WAGON2014.08-2021.072.5L Patrol FB25 EMPI (175 hp / 129 kW) Four - wheel drive (4WD). LHD 25B
B15. 3600cc. EZ36. 4WD. WAGON2014.08-2021.073.6L Patrol EZ36 EMPI (260 hp / 191 kW) Four - wheel drive (4WD). LHD 36D
