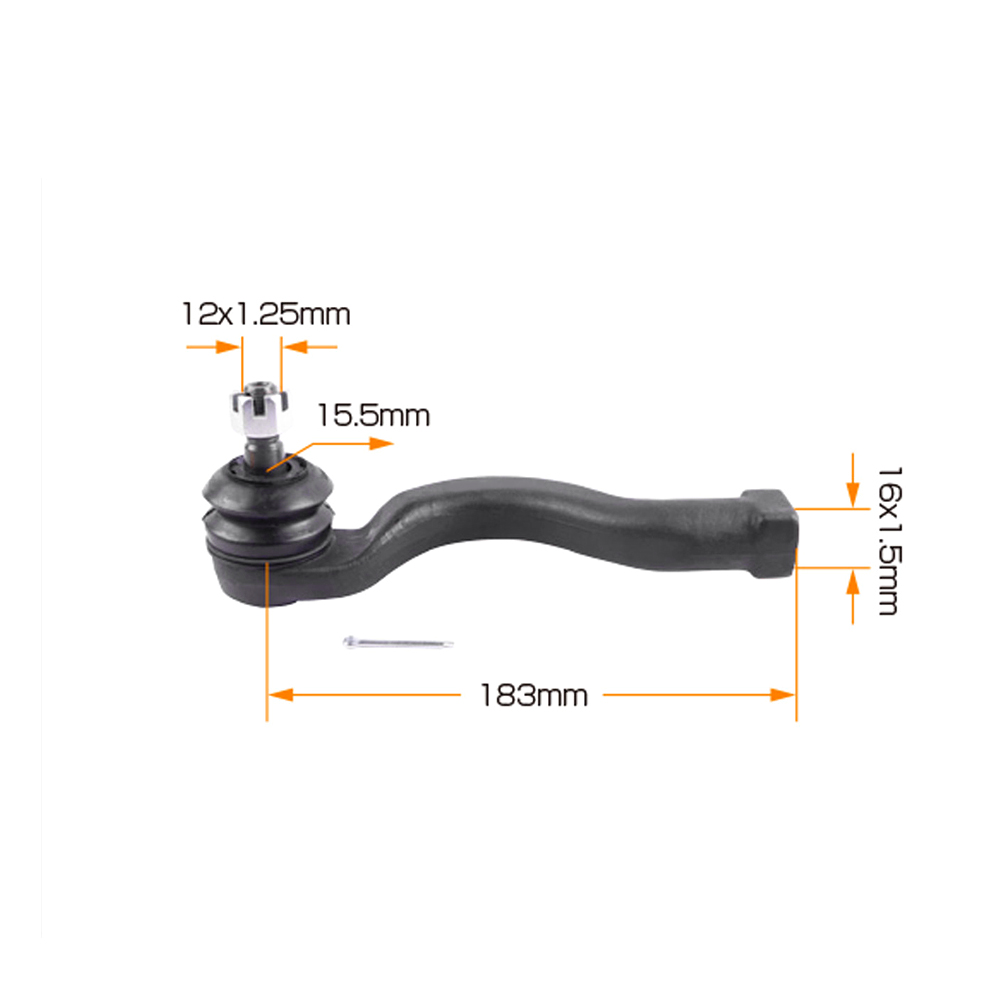

TIE ROD END TE-10017R

MASUMA No.
ME-7841R
TOMOI No.
TE-10017R
TRW No.
JTE7567
555 No.
SE-7841R
CTR No.
CE0-423R

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 4422A010
  • 4422A097
  • MR508136

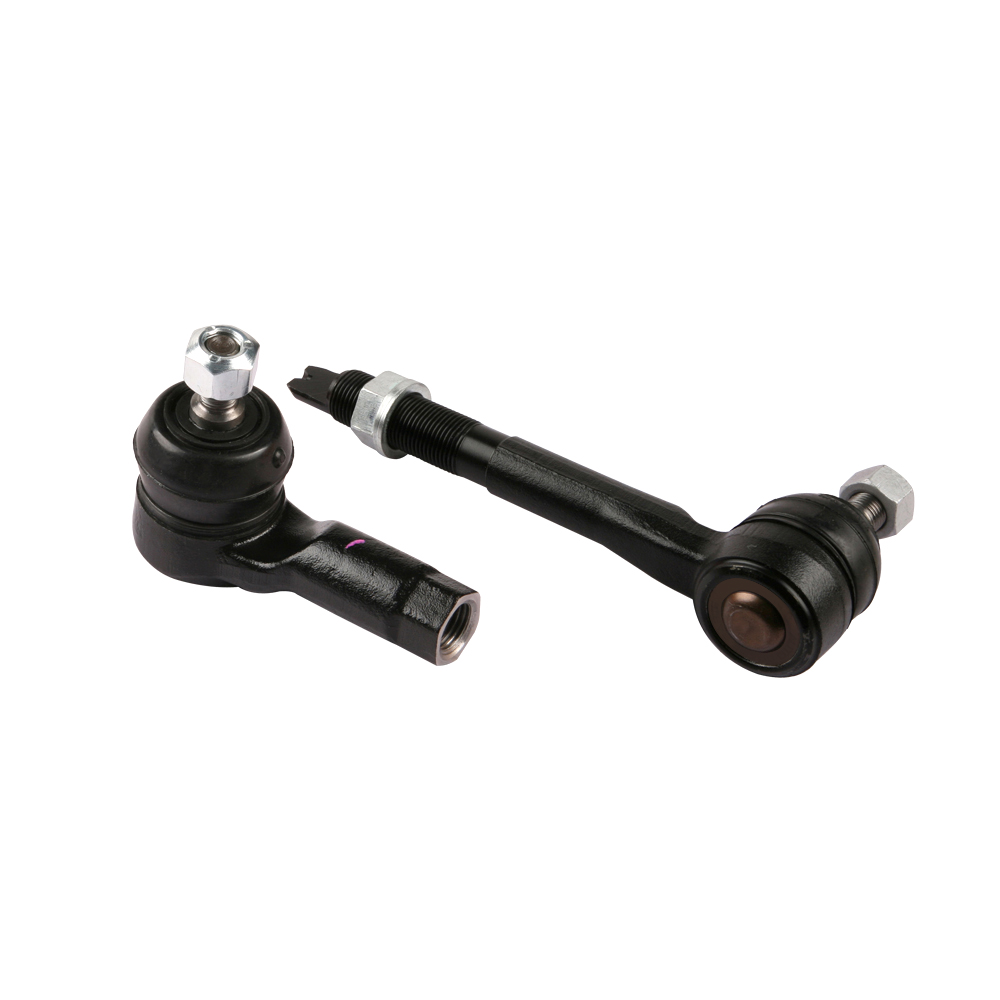

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

MITSUBISHI
L200
Chassis No.YearConfiguration
KB4T.EUR.2DR.4WD2005.12-2016.022.5L Diesel 4D56T (136 hp / 100 kW) Four - wheel drive (4WD). LHD
KB4T.EUR.4DR.4WD2005.12-2016.022.5L Diesel 4D56T (136 hp / 100 kW) Four - wheel drive (4WD). LHD
KA4T.4DR.2WD2007.01-2016.022.5L Diesel 4D56T (136 hp / 100 kW) Rear - wheel drive. LHD
KB4T.RUS.4DR.4WD2008.10-2011.122.5L Diesel 4D56T (136 hp / 100 kW) Four - wheel drive (4WD). LHD
KB4T.RUS.2DR.4WD2008.10-2016.022.5L Diesel 4D56T (136 hp / 100 kW) Four - wheel drive (4WD). LHD
KA4T.2DR.2WD2009.11-2016.022.5L Diesel 4D56T (136 hp / 100 kW) Rear - wheel drive. LHD
KB4T.RUS.4DR.4WD2011.12-2016.022.5L Diesel 4D56T (136 hp / 100 kW) Four - wheel drive (4WD). LHD
KL1T.RUS.Double Cab.4WD2015.04-2021.122.4L Diesel 4N15 (181 hp / 133 kW) Four - wheel drive (4WD). LHD
MONTERO
Chassis No.YearConfiguration
V74W2000.02-2006.092.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V64W2000.02-2006.092.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V68W2000.02-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V78W2000.02-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V65W2000.02-2006.093.5L Patrol 6G74 GDI (190 hp / 140 kW) Four - wheel drive (4WD). LHD
V75W2000.02-2006.093.5L Patrol 6G74 GDI (203 hp / 149 kW) Four - wheel drive (4WD). LHD
PAJERO
Chassis No.YearConfiguration
V68W1999.06-2004.123.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). RHD
V78W1999.06-2004.123.2L Diesel 4M41T (190 hp / 140 kW) Four - wheel drive (4WD). RHD
V75W1999.06-2005.103.5L Patrol 6G74 GDI (220 hp / 162 kW) Four - wheel drive (4WD). RHD
V65W1999.06-2005.103.5L Patrol 6G74 GDI (220 hp / 162 kW) Four - wheel drive (4WD). RHD
V74W2000.02-2006.092.5L Diesel 4D56T (133 hp / 98 kW) Four - wheel drive (4WD). LHD
V64W2000.02-2006.092.5L Diesel 4D56T (99 hp / 73 kW) Four - wheel drive (4WD). LHD
V68W2000.02-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V78W2000.02-2006.093.2L Diesel 4M41T (175 hp / 129 kW) Four - wheel drive (4WD). LHD
V75W2000.02-2006.093.5L Patrol 6G74 GDI (203 hp / 149 kW) Four - wheel drive (4WD). LHD
V65W2000.02-2006.093.5L Patrol 6G74 GDI (216 hp / 159 kW) Four - wheel drive (4WD). LHD
V73W2000.06-2006.083.0L Patrol 6G72 MPI (180 hp / 132 kW) Four - wheel drive (4WD). RHD
V63W2000.06-2006.083.0L Patrol 6G72 MPI (180 hp / 132 kW) Four - wheel drive (4WD). RHD
V77W2005.10-2006.083.8L Patrol 6G75 MPI (219 hp / 161 kW) Four - wheel drive (4WD). RHD
V73W2006.07-2007.013.0L Patrol 6G72 MPI (177 hp / 130 kW) Four - wheel drive (4WD). LHD
PAJERO SPORT
Chassis No.YearConfiguration
KH8W2008.07-2009.103.2L Diesel 4M41T (165 hp / 121 kW) Four - wheel drive (4WD). LHD
KH9W2008.07-2009.103.5L Patrol 6G74 GDI (208 hp / 153 kW) Four - wheel drive (4WD). LHD
KH4W.EUR2009.10-2011.122.5L Diesel 4D56T (178 hp / 130 kW) Four - wheel drive (4WD). LHD
KH6W.EUR2009.10-2011.123.0L Patrol 6B31 MPI (220 hp / 162 kW) Four - wheel drive (4WD). LHD
KH4W.EUR2011.12-2015.092.5L Diesel 4D56T (178 hp / 130 kW) Four - wheel drive (4WD). LHD
KH6W.EUR2011.12-2015.113.0L Patrol 6B31 MPI (220 hp / 162 kW) Four - wheel drive (4WD). LHD
KH4W.RUS2013.06-2015.112.5L Diesel 4D56T (178 hp / 130 kW) Four - wheel drive (4WD). LHD
KH6W.RUS2013.06-2015.113.0L Patrol 6B31 MPI (220 hp / 162 kW) Four - wheel drive (4WD). LHD
KS1W.RUS2015.12-...2.4L Diesel 4N15 (181 hp / 133 kW) Four - wheel drive (4WD). LHD
KS5W.RUS2015.12-...3.0L Patrol 6B31 ECI-MULTI (209 hp / 154 kW) Four - wheel drive (4WD). LHD
