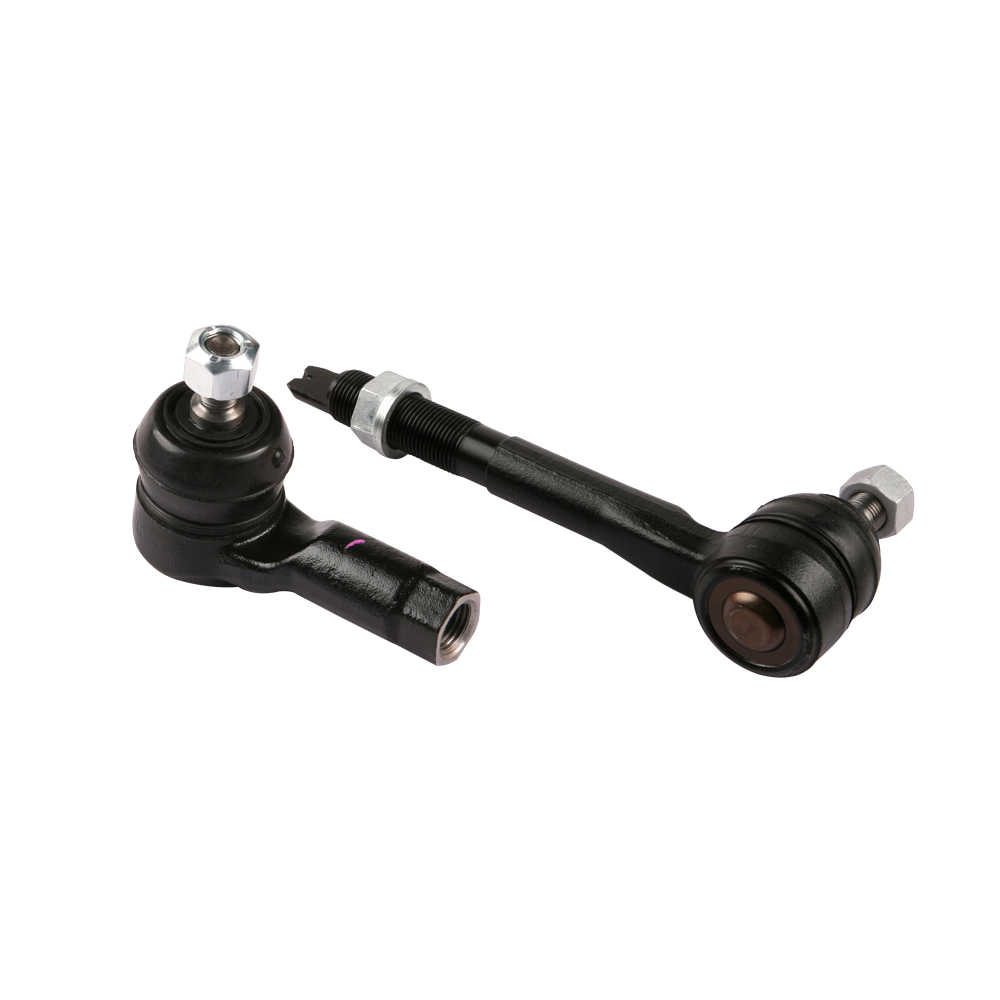

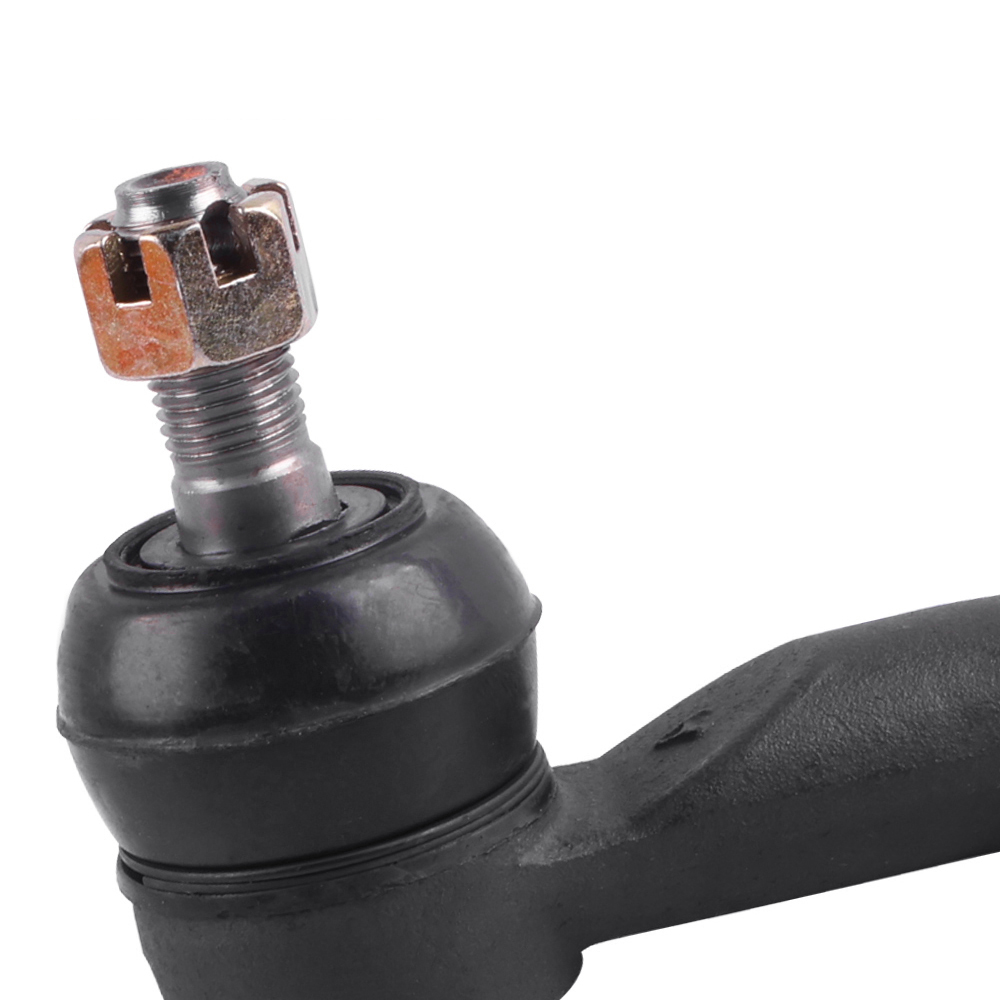

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
TOYOTA
CELICA
| Chassis No. | Year | Configuration |
|---|
| ZZT230 | 1999.08-2006.04 | 1.8L Patrol 1ZZFE EFI (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
| ZZT231 | 1999.08-2006.04 | 1.8L Patrol 2ZZGE EFI (190 hp / 140 kW) Front - wheel drive (2WD). RHD |
OPA
| Chassis No. | Year | Configuration |
|---|
| ZCT10 | 2000.04-2005.04 | 1.8L Patrol 1ZZFE EFI (125 hp / 92 kW) Front - wheel drive (2WD). RHD |
| ZCT15 | 2000.04-2005.04 | 1.8L Patrol 1ZZFE EFI (136 hp / 100 kW) Four - wheel drive (4WD). RHD |
| ACT10 | 2000.08-2005.04 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
PRIUS
| Chassis No. | Year | Configuration |
|---|
| NHW10 | 1997.12-2000.05 | 1.5L Patrol 1NZFXE EFI (58 hp / 43 kW) Front - wheel drive (2WD). RHD |
VISTA
| Chassis No. | Year | Configuration |
|---|
| SV50 | 1998.06-2001.08 | 2.0L Patrol 3SFSE D-4 (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
| SV55 | 1998.06-2002.04 | 2.0L Patrol 3SFE EFI (135 hp / 99 kW) Four - wheel drive (4WD). RHD |
| ZZV50 | 1998.06-2003.07 | 1.8L Patrol 1ZZFE EFI (130 hp / 96 kW) Front - wheel drive (2WD). RHD |
| AZV50 | 2001.08-2003.07 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
| AZV55 | 2002.04-2003.07 | 2.0L Patrol 1AZFSE D-4 (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
VISTA ARDEO
| Chassis No. | Year | Configuration |
|---|
| SV50G | 1998.06-2001.08 | 2.0L Patrol 3SFSE D-4 (145 hp / 107 kW) Front - wheel drive (2WD). RHD |
| SV55G | 1998.06-2002.04 | 2.0L Patrol 3SFE EFI (135 hp / 99 kW) Four - wheel drive (4WD). RHD |
| ZZV50G | 1998.06-2003.07 | 1.8L Patrol 1ZZFE EFI (136 hp / 100 kW) Front - wheel drive (2WD). RHD |
| AZV50G | 2001.08-2003.07 | 2.0L Patrol 1AZFSE D-4 (152 hp / 112 kW) Front - wheel drive (2WD). RHD |
| AZV55G | 2002.04-2003.07 | 2.0L Patrol 1AZFSE D-4 (150 hp / 110 kW) Four - wheel drive (4WD). RHD |
