TIE ROD END TE-50179L

MASUMA No.
ME-9816L
TOMOI No.
TE-50179L
TRW No.
JTE598
555 No.
SE-3931L
CTR No.
CE0-728L

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 45047-59145

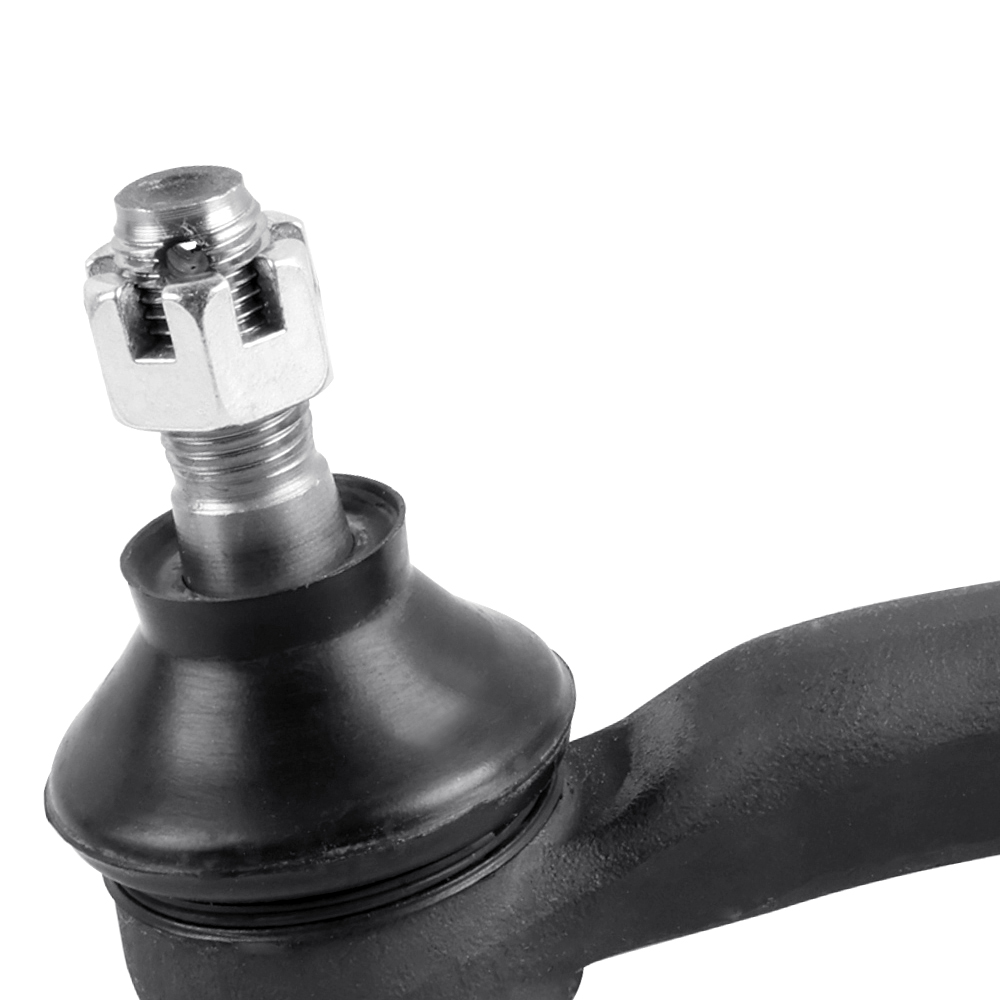

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

TOYOTA
ALLION
Chassis No.YearConfiguration
NZT2602007.05-...1.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD
ZRT2602007.05-2010.041.8L Patrol 2ZRFE EFI (136 hp / 100 kW) Front - wheel drive (2WD). RHD
ZRT2612007.12-2020.092.0L Patrol 3ZRFAE EFI (158 hp / 116 kW) Front - wheel drive (2WD). RHD
ZRT2602010.04-2021.031.8L Patrol 2ZRFAE EFI (144 hp / 106 kW) Front - wheel drive (2WD). RHD
AQUA
Chassis No.YearConfiguration
NHP102013.12-2021.061.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD
COROLLA AXIO
Chassis No.YearConfiguration
NZE1612012.04-...1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NKE1652013.07-...1.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD
NRE1612015.03-...1.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
COROLLA FIELDER
Chassis No.YearConfiguration
NZE161G2012.04-...1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
ZRE162G2012.04-2019.081.8L Patrol 2ZRFAE EFI (140 hp / 103 kW) Front - wheel drive (2WD). RHD
NKE165G2013.07-...1.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD
NRE161G2015.03-...1.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
ISIS
Chassis No.YearConfiguration
ZGM10G2009.09-2018.011.8L Patrol 2ZRFAE EFI (143 hp / 105 kW) Front - wheel drive (2WD). RHD
ZGM10W2009.09-2018.011.8L Patrol 2ZRFAE EFI (144 hp / 106 kW) Front - wheel drive (2WD). RHD
ZGM11G2009.09-2018.012.0L Patrol 3ZRFAE EFI (152 hp / 112 kW) Front - wheel drive (2WD). RHD
ZGM11W2009.09-2018.012.0L Patrol 3ZRFAE EFI (158 hp / 116 kW) Front - wheel drive (2WD). RHD
PORTE
Chassis No.YearConfiguration
NSP1402012.07-2015.071.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD
NCP1412012.07-2015.071.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NCP1452012.07-2020.121.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NSP1412015.07-2020.121.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
PREMIO
Chassis No.YearConfiguration
NZT2602007.05-...1.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD
ZRT2602007.05-2010.041.8L Patrol 2ZRFE EFI (136 hp / 100 kW) Front - wheel drive (2WD). RHD
ZRT2612007.12-...2.0L Patrol 3ZRFAE EFI (158 hp / 116 kW) Front - wheel drive (2WD). RHD
ZRT2602010.04-...1.8L Patrol 2ZRFAE EFI (143 hp / 105 kW) Front - wheel drive (2WD). RHD
PROBOX
Chassis No.YearConfiguration
NSP160V2014.09-2021.121.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD
NCP160V2014.09-2021.121.5L Patrol 1NZFE EFI (103 hp / 76 kW) Front - wheel drive (2WD). RHD
NCP165V2014.09-2021.121.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NHP160V2018.12-...1.5L Patrol 1NZFXE EFI (75 hp / 55 kW) Front - wheel drive (2WD). RHD
RACTIS
Chassis No.YearConfiguration
SCP1002007.12-2010.081.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD
NCP1052007.12-2010.081.5L Patrol 1NZFE EFI (105 hp / 77 kW) Four - wheel drive (4WD). RHD
NCP1002007.12-2010.081.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD
NSP1202010.11-2014.051.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD
NSP1222010.11-2014.051.3L Patrol 1NRFE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD
NCP1252010.11-2016.071.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NCP1202010.11-2016.071.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NCP1222010.11-2016.071.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NSP1202014.05-2016.071.3L Patrol 1NRFKE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD
NSP1222014.05-2016.071.3L Patrol 1NRFKE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD
SIENTA
Chassis No.YearConfiguration
NCP175G2015.06-2022.071.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NSP172G2015.06-2022.071.5L Patrol 2NRFKE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD
NSP170G2015.06-2022.071.5L Patrol 2NRFKE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD
NHP170G2015.07-2022.071.5L Patrol 1NZFXE EFI (73 hp / 54 kW) Front - wheel drive (2WD). RHD
SPADE
Chassis No.YearConfiguration
NSP1402012.07-2015.071.3L Patrol 1NRFE EFI (103 hp / 76 kW) Front - wheel drive (2WD). RHD
NCP1412012.07-2015.071.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NCP1452012.07-2020.121.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NSP1412015.07-2020.121.5L Patrol 2NRFKE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
SUCCEED
Chassis No.YearConfiguration
NCP160V2014.09-2020.071.5L Patrol 1NZFE EFI (103 hp / 76 kW) Front - wheel drive (2WD). RHD
NCP165V2014.09-2020.071.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NHP160V2018.12-2020.071.5L Patrol 1NZFXE EFI (75 hp / 55 kW) Front - wheel drive (2WD). RHD
VERSO-S
Chassis No.YearConfiguration
NSP120L2010.11-2015.041.3L Patrol 1NR-FE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD JPP
NLP121L2010.11-2015.041.4L Diesel 1NDTV (90 hp / 66 kW) Front - wheel drive (2WD). LHD JPP
VITZ
Chassis No.YearConfiguration
KSP1302012.05-2017.011.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). RHD
NCP1312012.05-2017.051.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NSP1302014.04-2020.011.3L Patrol 1NRFKE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD
WISH
Chassis No.YearConfiguration
ZGE21G2009.03-2012.042.0L Patrol 3ZRFAE EFI (152 hp / 112 kW) Front - wheel drive (2WD). RHD
ZGE20G2009.03-2017.101.8L Patrol 2ZRFAE EFI (130 hp / 96 kW) Front - wheel drive (2WD). RHD
ZGE20W2012.04-2017.101.8L Patrol 2ZRFAE EFI (143 hp / 105 kW) Front - wheel drive (2WD). RHD
