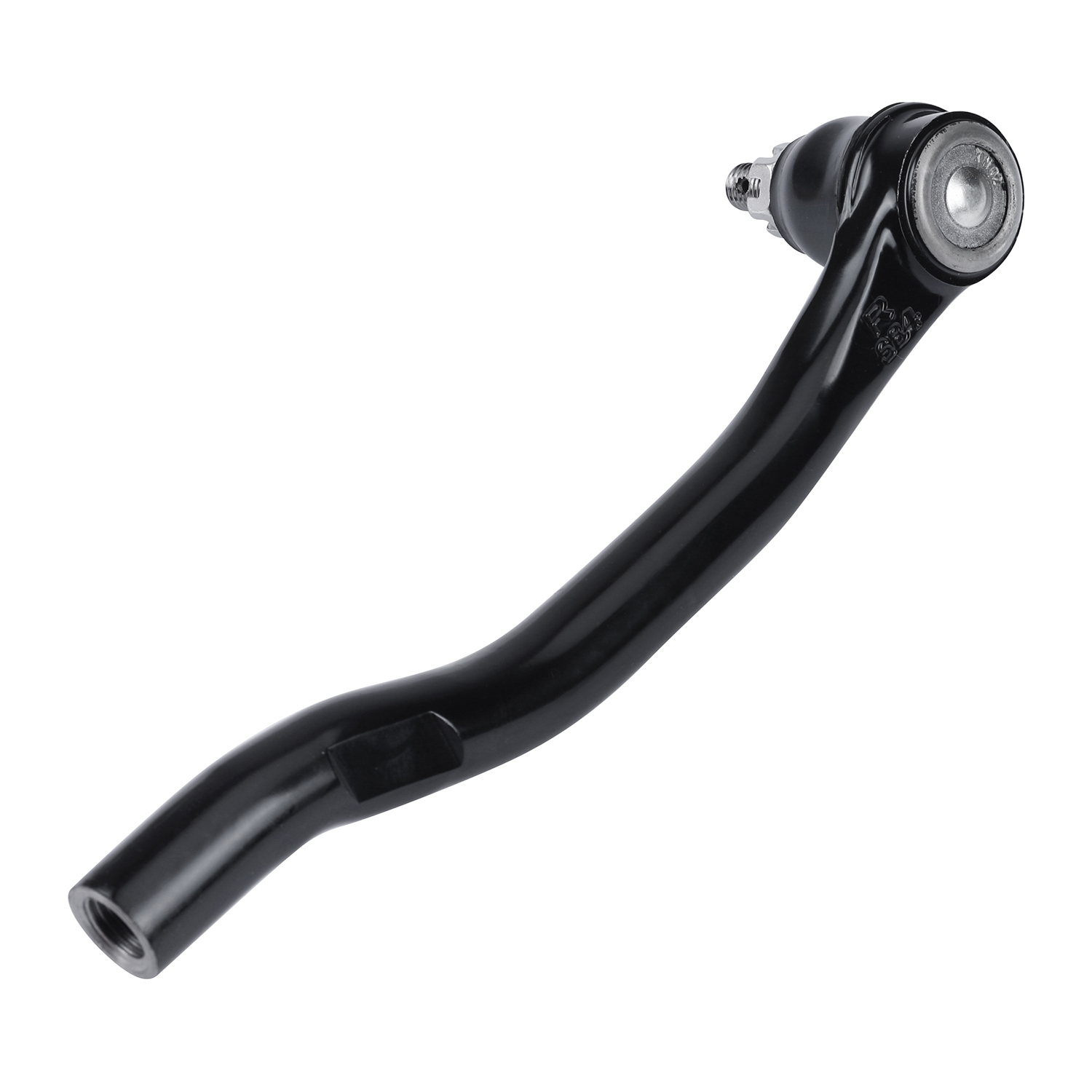

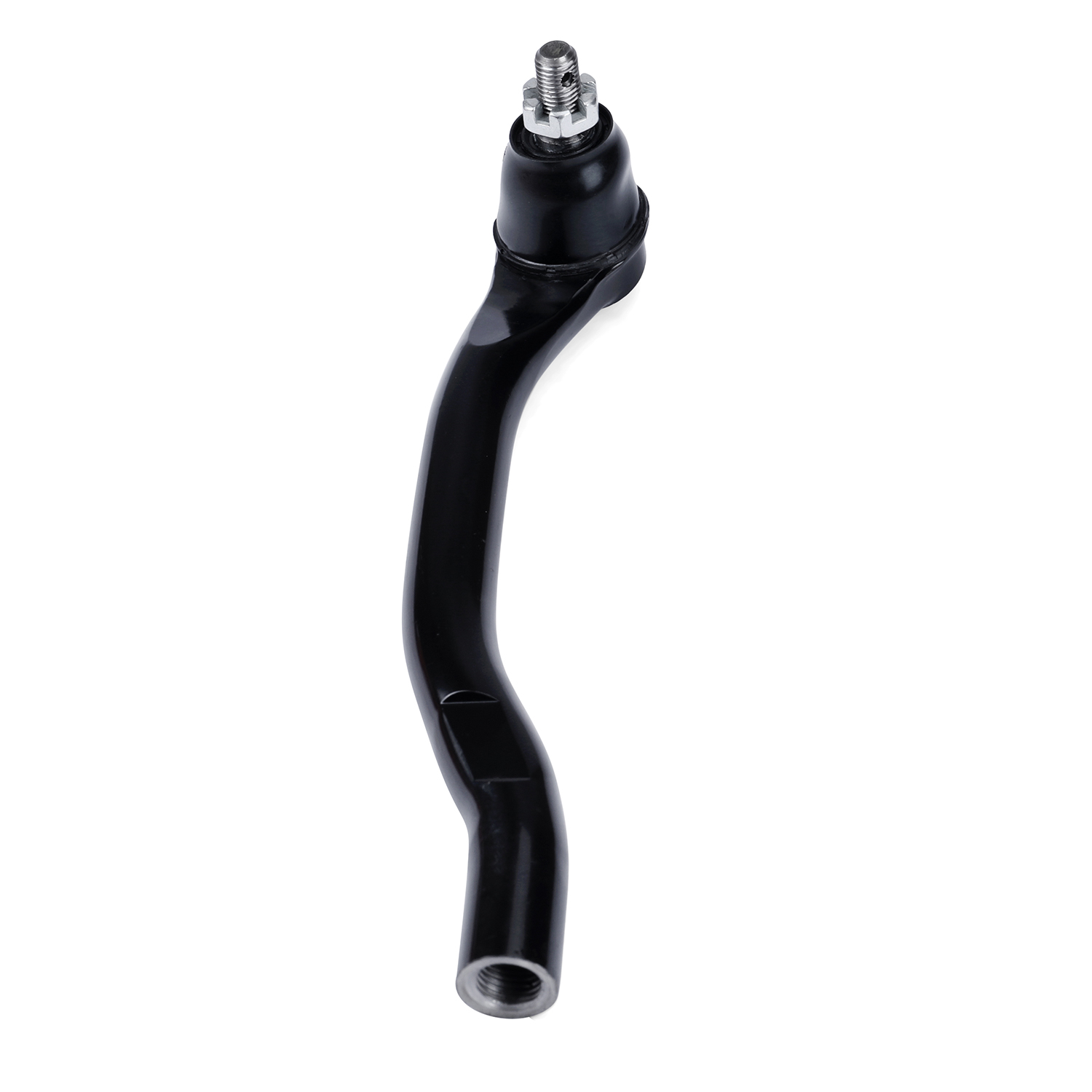

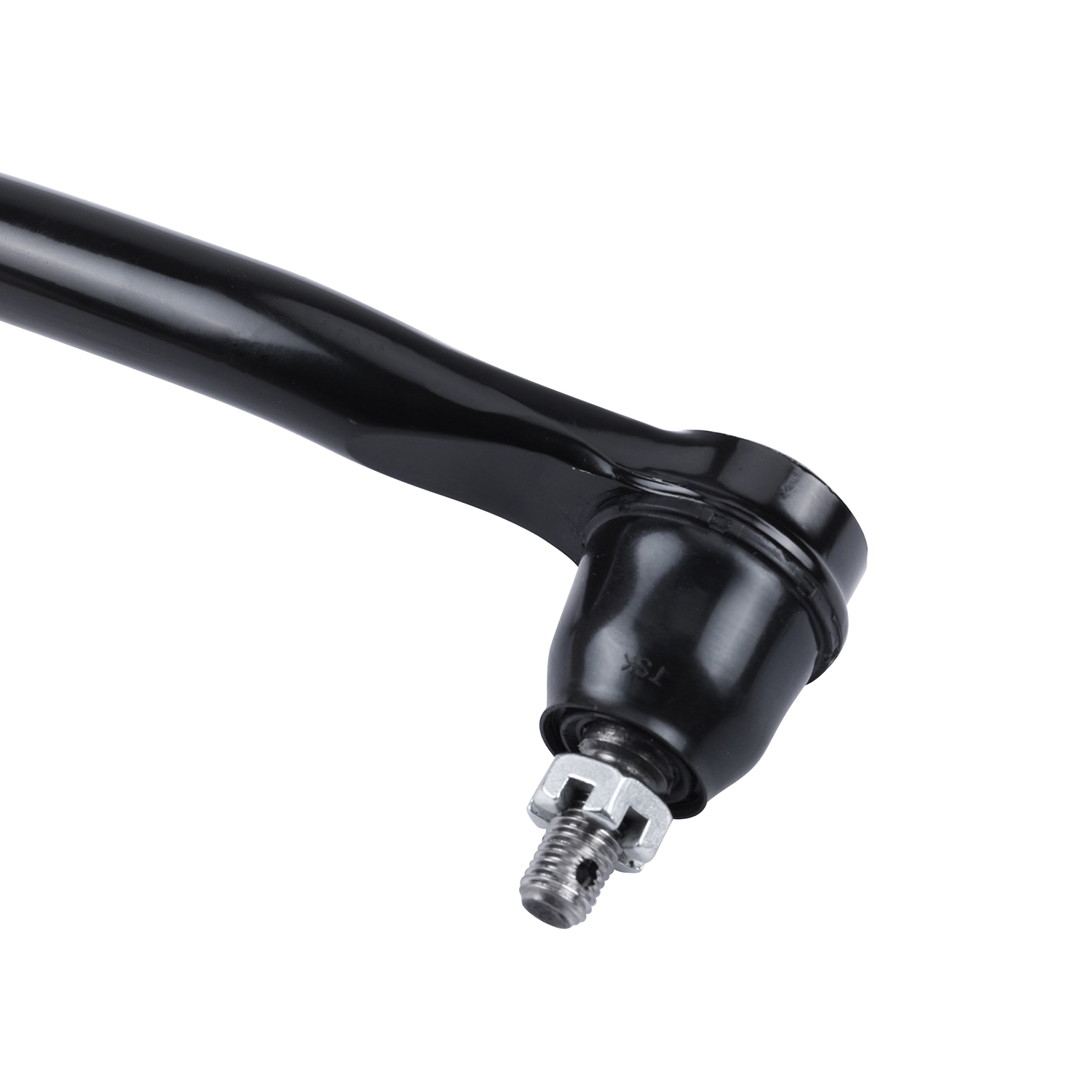

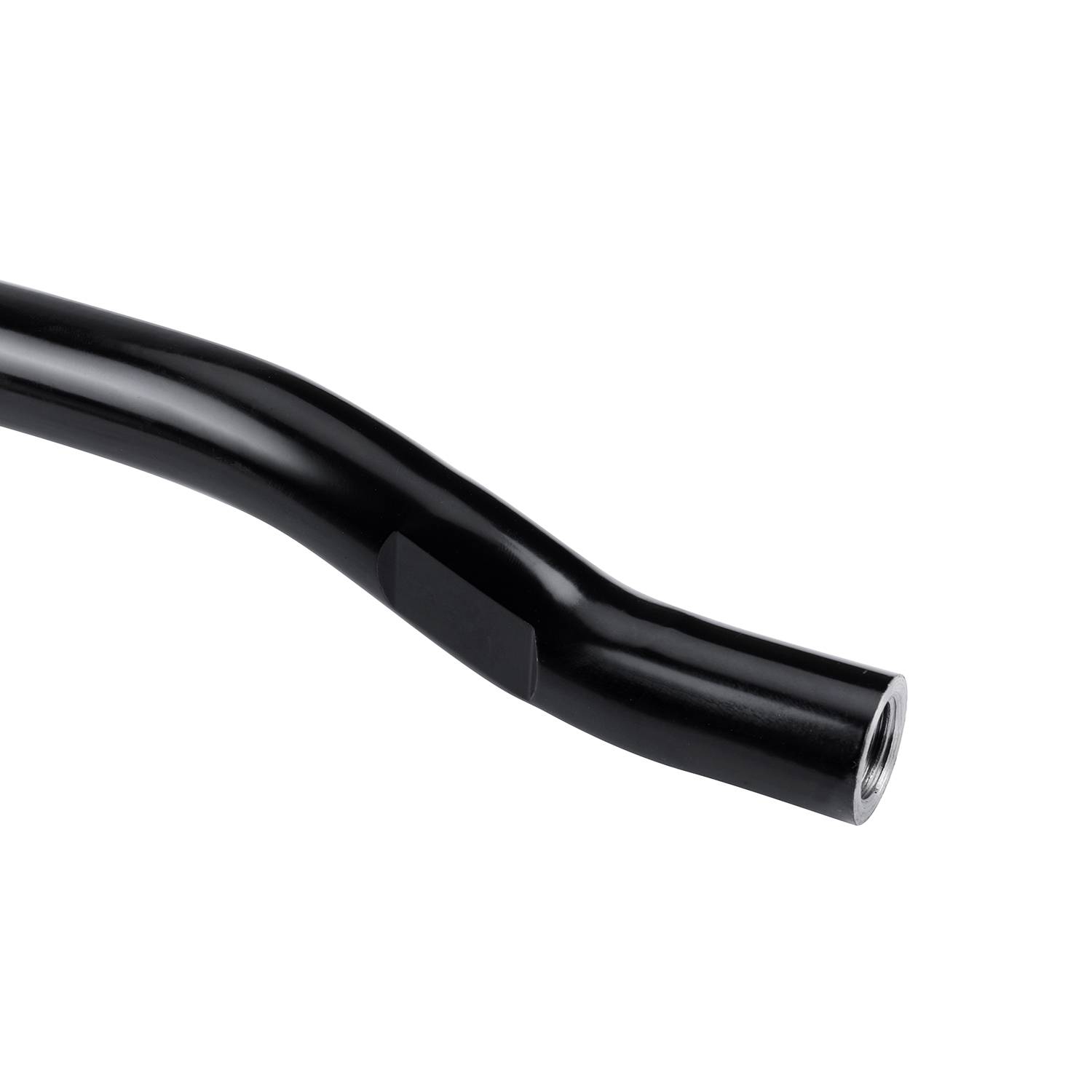

TIE ROD END TE-30001R

MASUMA No.
ME-C5001R
TOMOI No.
TE-30001R
555 No.
SE-6211R
CTR No.
CE0-194R
TRW No.
JTE307

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 53540-S84-A01

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

HONDA
ACCORD
Chassis No.YearConfiguration
CF31997.08-1999.01E-CF3 1.8L Patrol F18B PGM-FI Front - wheel drive (2WD). RHD
CF41997.09-1999.01E-CF4 2.0L Patrol F20B PGM-FI Front - wheel drive (2WD). RHD LEV, 2.0VTS
CF41997.09-1999.01E-CF4 2.0L Patrol F20B PGM-FI Front - wheel drive (2WD). RHD SIR, SIR-T
CF51997.09-1999.01E-CF5 2.0L Patrol F20B PGM-FI Four - wheel drive (4WD). RHD
CF41999.01-1999.07GF-CF4 2.0L Patrol F20B PGM-FI Front - wheel drive (2WD). RHD 2.0VTS
CF51999.01-1999.07GF-CF5 2.0L Patrol F20B PGM-FI Four - wheel drive (4WD). RHD
CF31999.01-2000.06GF-CF3 1.8L Patrol F18B PGM-FI Front - wheel drive (2WD). RHD
CF41999.01-2000.06GF-CF4 2.0L Patrol F20B PGM-FI Front - wheel drive (2WD). RHD SIR, SIR S PACKAGE, SIR-T, SIR-T S PACKAGE
CF41999.07-2000.06GH-CF4 2.0L Patrol F20B PGM-FI Front - wheel drive (2WD). RHD 2.0VTS
CF51999.07-2000.06GH-CF5 2.0L Patrol F20B PGM-FI Four - wheel drive (4WD). RHD
CF32000.06-2002.10GH-CF3 1.8L Patrol F18B PGM-FI (140 hp / 103 kW) Front - wheel drive (2WD). RHD
CF42000.06-2002.10GH-CF4 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD SIR, SIR S PACKAGE, SIR EURO PACKAGE
CL12000.06-2002.10GH-CL1 2.2L Patrol H22A PGM-FI (220 hp / 162 kW) Front - wheel drive (2WD). RHD
CF52000.06-2002.10LA-CF5 2.0L Patrol F20B PGM-FI (148 hp / 109 kW) Four - wheel drive (4WD). RHD
CL32000.06-2002.10LA-CL3 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD
INSPIRE
Chassis No.YearConfiguration
UA41998.10-2001.04GF-UA4 2.5L Patrol J25A PGM-FI (200 hp / 147 kW) Front - wheel drive (2WD). RHD
UA51998.10-2001.04GF-UA5 3.2L Patrol J32A PGM-FI (225 hp / 165 kW) Front - wheel drive (2WD). RHD
UA42001.04-2003.06LA-UA4 2.5L Patrol J25A PGM-FI (200 hp / 147 kW) Front - wheel drive (2WD). RHD
UA52001.04-2003.06LA-UA5 3.2L Patrol J32A PGM-FI (260 hp / 191 kW) Front - wheel drive (2WD). RHD
SABER
Chassis No.YearConfiguration
UA41998.10-2001.04GF-UA4 2.5L Patrol J25A PGM-FI (200 hp / 147 kW) Front - wheel drive (2WD). RHD
UA51998.10-2001.04GF-UA5 3.2L Patrol J32A PGM-FI (225 hp / 165 kW) Front - wheel drive (2WD). RHD
UA42001.04-2003.06LA-UA4 2.5L Patrol J25A PGM-FI (200 hp / 147 kW) Front - wheel drive (2WD). RHD
UA52001.04-2003.06LA-UA5 3.2L Patrol J32A PGM-FI (260 hp / 191 kW) Front - wheel drive (2WD). RHD
TORNEO
Chassis No.YearConfiguration
CF31997.08-1999.01E-CF3 1.8L Patrol F18B PGM-FI (140 hp / 103 kW) Front - wheel drive (2WD). RHD
CF41997.08-1999.01E-CF4 2.0L Patrol F20B PGM-FI (145 hp / 107 kW) Front - wheel drive (2WD). RHD LEV, 2.0VTS
CF41997.08-1999.01E-CF4 2.0L Patrol F20B PGM-FI (180 hp / 132 kW) Front - wheel drive (2WD). RHD SIR. SIR-T
CF51997.08-1999.01E-CF5 2.0L Patrol F20B PGM-FI (180 hp / 132 kW) Four - wheel drive (4WD). RHD
CF41999.01-1999.07GF-CF4 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD 2.0VTS
CF41999.01-1999.07GF-CF4 2.0L Patrol F20B PGM-FI (180 hp / 132 kW) Front - wheel drive (2WD). RHD SIR, SIR S PACKAGE, SIR-T, SIR-T S PACKAGE
CF51999.01-1999.07GF-CF5 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Four - wheel drive (4WD). RHD
CF31999.01-2000.06GF-CF3 1.8L Patrol F18B PGM-FI (140 hp / 103 kW) Front - wheel drive (2WD). RHD
CF51999.07-2000.06GH-CF5 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Four - wheel drive (4WD). RHD
CF42000.06-2000.06GH-CF4 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD 2.0VTS
CF32000.06-2002.10GH-CF3 1.8L Patrol F18B PGM-FI (140 hp / 103 kW) Front - wheel drive (2WD). RHD
CF42000.06-2002.10GH-CF4 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD SIR, SIR S PACKAGE, SIR EURO PACKAGE
CL12000.06-2002.10GH-CL1 2.2L Patrol H22A PGM-FI (220 hp / 162 kW) Front - wheel drive (2WD). RHD EURO R
CF52000.06-2002.10LA-CF5 2.0L Patrol F20B PGM-FI (148 hp / 109 kW) Four - wheel drive (4WD). RHD
CL32000.06-2002.10LA-CL3 2.0L Patrol F20B PGM-FI (150 hp / 110 kW) Front - wheel drive (2WD). RHD
