- D8640-1AA0A
- D8640-1AA1A
- D8640-JA00A

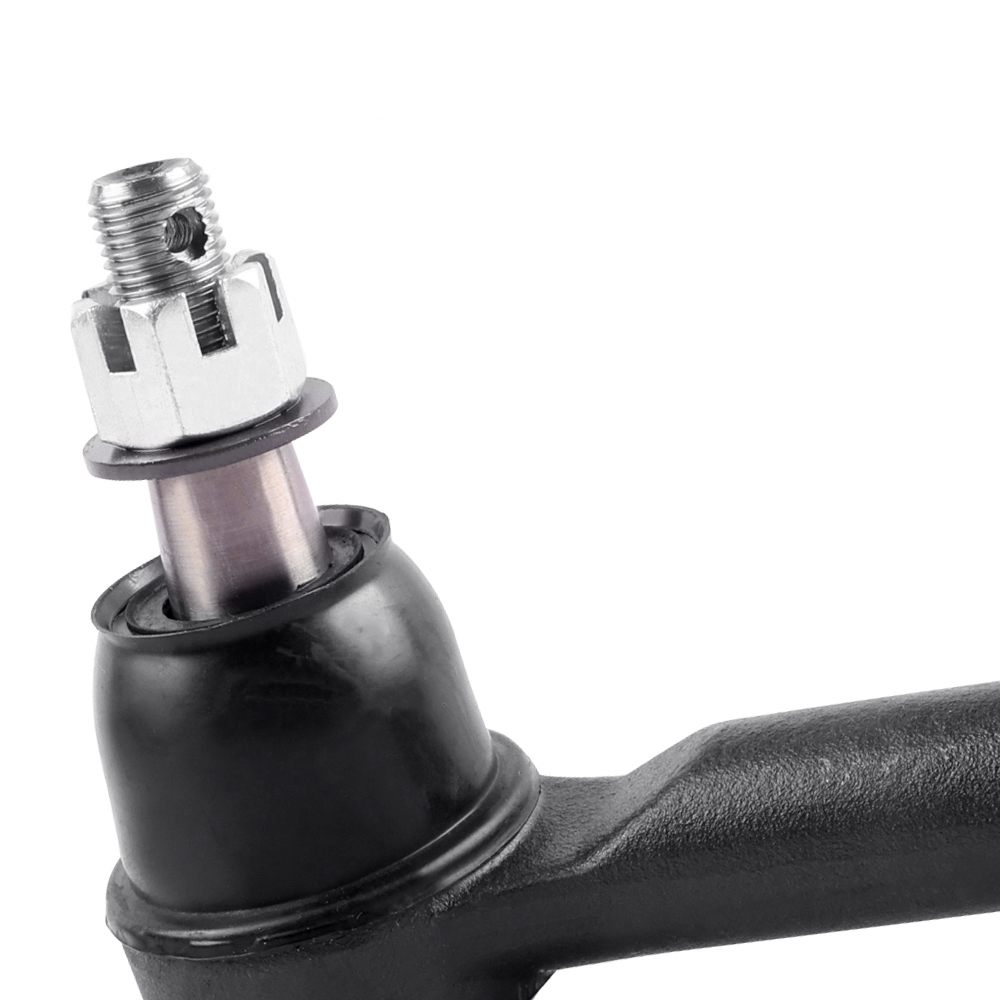

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.
TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.
| Chassis No. | Year | Configuration |
|---|---|---|
| Z51. 3500cc. VQ35DE. 4WD. | 2008.06-2011.07 | 3.5L Patrol VQ35DE EGI (256 hp / 188 kW) Four - wheel drive (4WD). LHD |
| Z51. 3500cc. VQ35DE. 4WD. Rus. | 2008.10-2011.07 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Four - wheel drive (4WD). LHD |
| Z51. 2500cc. YD25DDTI. Turbo. Диз. 4WD. | 2010.05-2011.07 | 2.5L Diesel YD25DDTI (190 hp / 140 kW) Four - wheel drive (4WD). LHD |
| Z51. 2500cc. YD25DDTI. Turbo. Диз. 4WD. | 2012.05-2015.06 | 2.5L Diesel YD25DDTI (190 hp / 140 kW) Four - wheel drive (4WD). LHD |
| Z51. 3500cc. VQ35DE. 4WD. Rus. | 2012.05-2015.06 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Four - wheel drive (4WD). LHD |
| Z51. 3500cc. VQ35DE. 4WD. | 2012.05-2015.06 | 3.5L Patrol VQ35DE EGI (256 hp / 188 kW) Four - wheel drive (4WD). LHD |
| Z51R. 3500cc. VQ35DE. 4WD. Rus. | 2012.05-2016.06 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Four - wheel drive (4WD). LHD |
| Chassis No. | Year | Configuration |
|---|---|---|
| J32. 2500cc. VQ25DE | 2008.02-2012.02 | 2.5L Patrol VQ25DE EGI (185 hp / 136 kW) Front - wheel drive (2WD). LHD |
| J32. 3500cc. VQ35DE | 2008.02-2012.02 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Front - wheel drive (2WD). LHD |
| J32. 2500cc. VQ25DE | 2008.02-2012.03 | 2.5L Patrol VQ25DE EGI (185 hp / 136 kW) Front - wheel drive (2WD). LHD |
| TNJ32 | 2008.06-2014.02 | 2.5L Patrol QR25DE EGI (167 hp / 123 kW) Four - wheel drive (4WD). RHD |
| J32 | 2008.06-2014.02 | 2.5L Patrol VQ25DE EGI (185 hp / 136 kW) Front - wheel drive (2WD). RHD |
| PJ32 | 2008.06-2014.02 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Front - wheel drive (2WD). RHD |
| J32R. 2500cc. VQ25DE. Rus. | 2009.06-2012.01 | 2.5L Patrol VQ25DE EGI (185 hp / 136 kW) Front - wheel drive (2WD). LHD |
| J32R. 3500cc. VQ35DE. Rus. | 2009.06-2012.01 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Front - wheel drive (2WD). LHD |
| J32R. 2500cc. QR25DE. 4WD. Rus. | 2010.03-2012.01 | 2.5L Patrol QR25DE EGI (167 hp / 123 kW) Four - wheel drive (4WD). LHD |
| J32R. 2500cc. QR25DE. 4WD. Rus. | 2012.01-2014.02 | 2.5L Patrol QR25DE EGI (167 hp / 123 kW) Four - wheel drive (4WD). LHD |
| J32R. 2500cc. VQ25DE. Rus. | 2012.01-2014.02 | 2.5L Patrol VQ25DE EGI (185 hp / 136 kW) Front - wheel drive (2WD). LHD |
| J32R. 3500cc. VQ35DE. Rus. | 2012.01-2014.02 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Front - wheel drive (2WD). LHD |
| J32. 2500cc. VQ25DE | 2012.02-2014.02 | 2.5L Patrol VQ25DE EGI (185 hp / 136 kW) Front - wheel drive (2WD). LHD |
| J32. 3500cc. VQ35DE | 2012.02-2014.02 | 3.5L Patrol VQ35DE EGI (249 hp / 183 kW) Front - wheel drive (2WD). LHD |
| J32. 2500cc. VQ25DE | 2012.03-2014.02 | 2.5L Patrol VQ25DE EGI (185 hp / 136 kW) Front - wheel drive (2WD). LHD |
