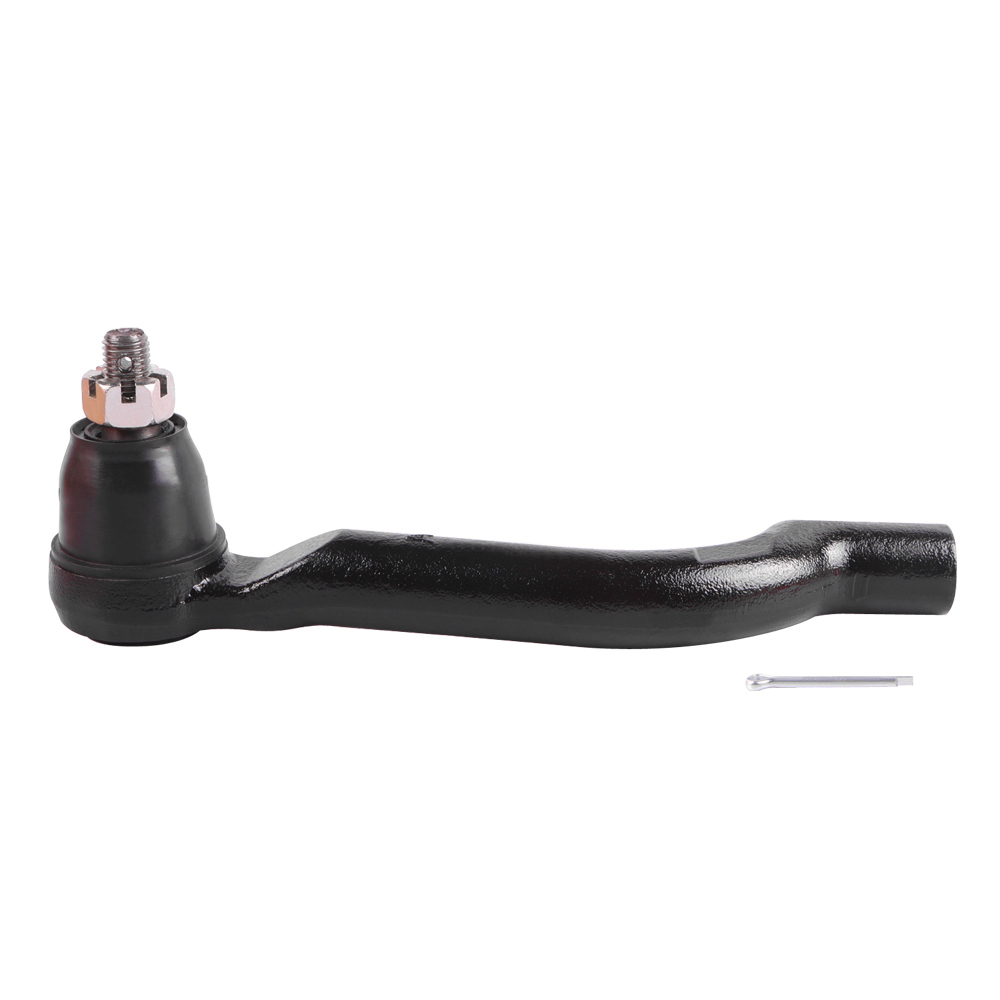

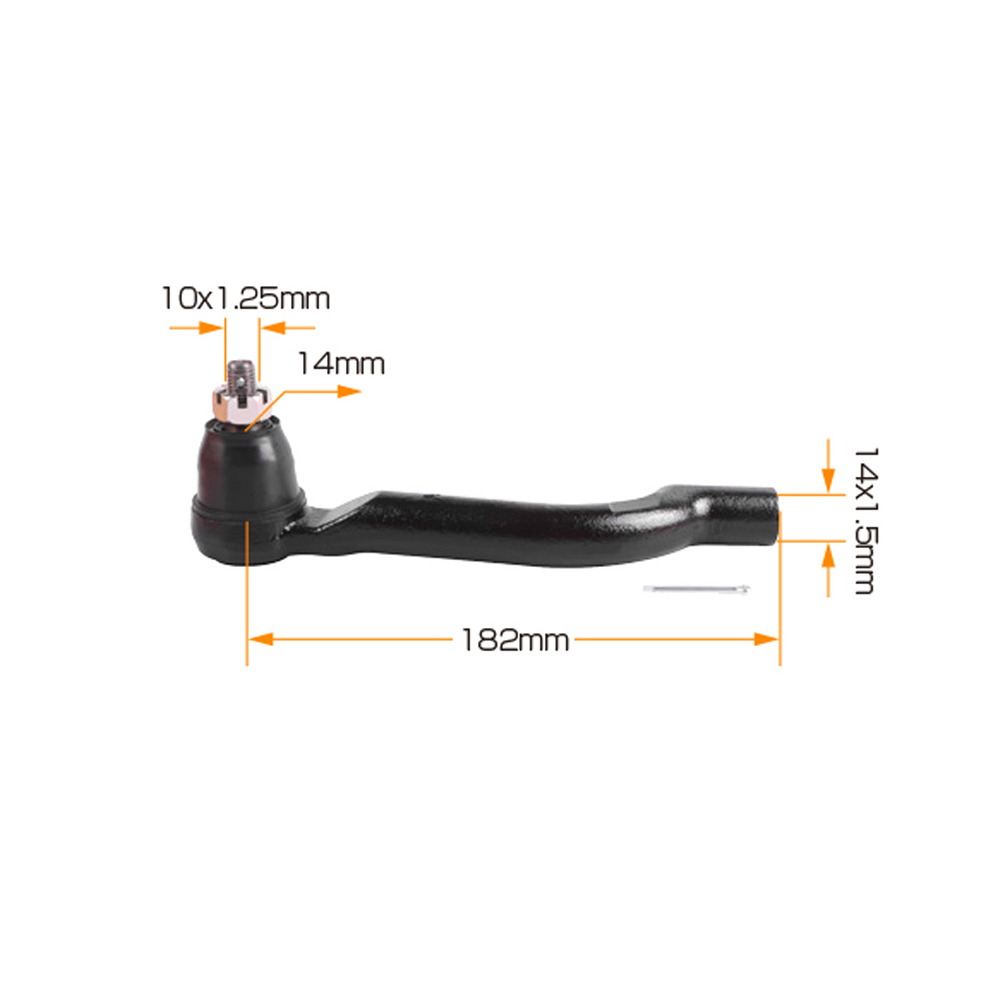

TIE ROD END TE-40066R

MASUMA No.
ME-N201R
TOMOI No.
TE-40066R
TRW No.
JTE2065
555 No.
SE-N201R
CTR No.
CE0-526

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 48527-JD01A
  • D8520-JG00A
  • D8520-JY00A
  • D8E20-JG00A

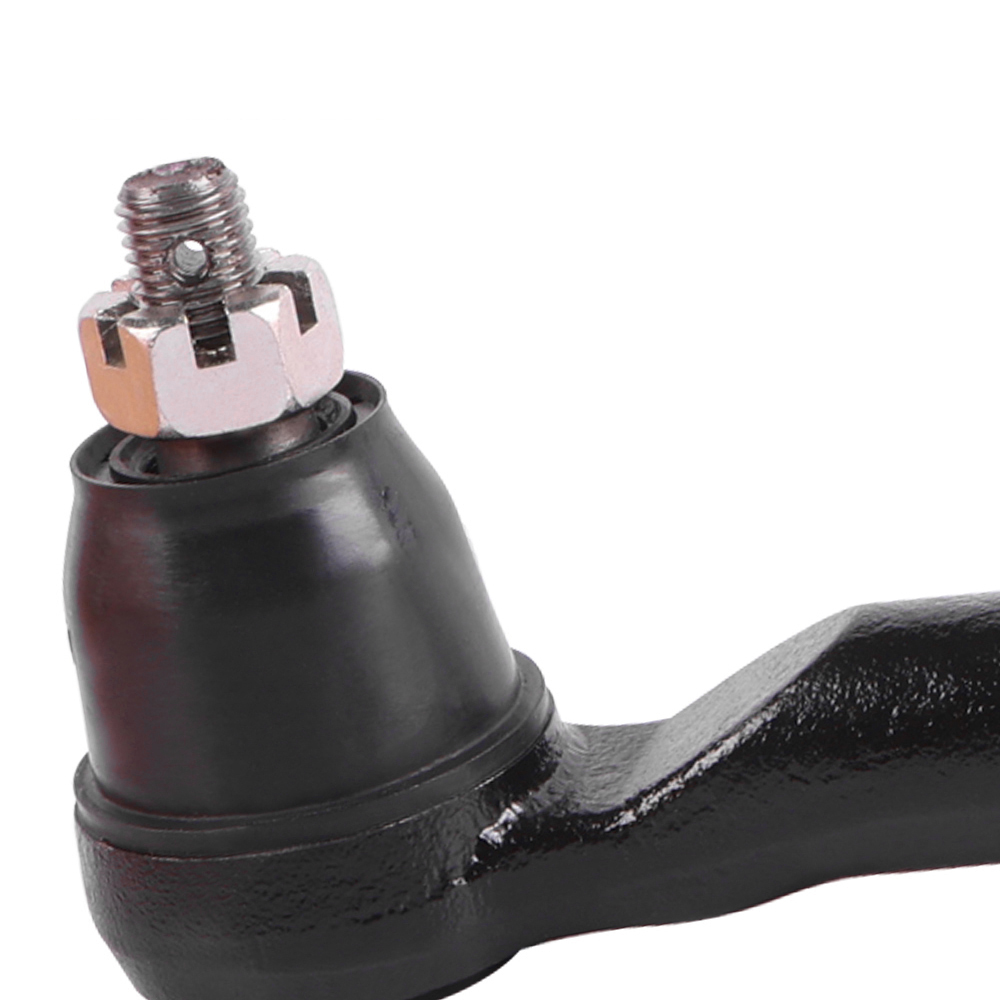

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

NISSAN
DUALIS
Chassis No.YearConfiguration
KJ102007.12-2014.032.0L Patrol MR20DE EGI (141 hp / 104 kW) Front - wheel drive (2WD). RHD
KNJ102007.12-2014.032.0L Patrol MR20DE EGI (141 hp / 104 kW) Four - wheel drive (4WD). RHD
QASHQAI
Chassis No.YearConfiguration
J10E. 1500cc. K9K. Turbo. Диз.2006.12-2013.121.5L Diesel K9K (106 hp / 78 kW) Front - wheel drive (2WD). LHD
J10E. 1600cc. HR16DE2006.12-2013.121.6L Patrol HR16DE EGI (114 hp / 84 kW) Front - wheel drive (2WD). LHD
J10E. 2000cc. MR20DE2006.12-2013.122.0L Patrol MR20DE EGI (141 hp / 104 kW) Front - wheel drive (2WD). LHD
J10E. 2000cc. MR20DE. 4WD.2006.12-2013.122.0L Patrol MR20DE EGI (141 hp / 104 kW) Four - wheel drive (4WD). LHD
J10E. 2000cc. M9R. Turbo. Диз.2007.04-2013.122.0L Diesel M9R (150 hp / 110 kW) Front - wheel drive (2WD). LHD
J10E. 2000cc. M9R. Turbo. Диз. 4WD.2007.04-2013.122.0L Diesel M9R (150 hp / 110 kW) Four - wheel drive (4WD). LHD
J10E. 1600cc. R9M. Turbo. Диз.2011.07-2013.121.6L Diesel R9M (130 hp / 96 kW) Front - wheel drive (2WD). LHD
J10E. 1600cc. R9M. Turbo. Диз. 4WD.2011.07-2013.121.6L Diesel R9M (130 hp / 96 kW) Four - wheel drive (4WD). LHD
QASHQAI+2
Chassis No.YearConfiguration
JJ10E. 1500cc. K9K. Turbo. Диз.2008.08-2013.121.5L Diesel K9K (103 hp / 76 kW) Front - wheel drive (2WD). LHD
JJ10E. 1600cc. HR16DE2008.08-2013.121.6L Patrol HR16DE EGI (114 hp / 84 kW) Front - wheel drive (2WD). LHD
JJ10E. 2000cc. MR20DE. 4WD.2008.08-2013.122.0L Patrol MR20DE EGI (139 hp / 102 kW) Four - wheel drive (4WD). LHD
JJ10E. 2000cc. MR20DE2008.08-2013.122.0L Patrol MR20DE EGI (141 hp / 104 kW) Front - wheel drive (2WD). LHD
JJ10E. 2000cc. M9R. Turbo. Диз.2008.08-2013.122.0L Diesel M9R (150 hp / 110 kW) Front - wheel drive (2WD). LHD
JJ10E. 2000cc. M9R. Turbo. Диз. 4WD.2008.08-2013.122.0L Diesel M9R (150 hp / 110 kW) Four - wheel drive (4WD). LHD
JJ10E. 1600cc. R9M. Turbo. Диз.2011.07-2013.121.6L Diesel R9M (130 hp / 96 kW) Front - wheel drive (2WD). LHD
JJ10E. 1600cc. R9M. Turbo. Диз. 4WD.2011.07-2013.121.6L Diesel R9M (130 hp / 96 kW) Four - wheel drive (4WD). LHD
X-TRAIL
Chassis No.YearConfiguration
T31. 2000cc. MR20DE. JAPAN.2007.03-2010.072.0L Patrol MR20DE EGI (141 hp / 104 kW) Front - wheel drive (2WD). LHD
T31. 2000cc. MR20DE. 4WD. JAPAN.2007.03-2010.072.0L Patrol MR20DE EGI (141 hp / 104 kW) Four - wheel drive (4WD). LHD
T31. 2000cc. M9R. Turbo. Диз. 4WD. JAPAN. 110KW2007.03-2010.072.0L Diesel M9R (105 hp / 110 kW) Four - wheel drive (4WD). LHD 110KW
T31. 2000cc. M9R. Turbo. Диз. JAPAN. 110KW2007.03-2010.072.0L Diesel M9R (150 hp / 110 kW) Front - wheel drive (2WD). LHD 110KW
T31. 2000cc. M9R. Turbo. Диз. 4WD. JAPAN. 127KW2007.03-2010.072.0L Diesel M9R (173 hp / 127 kW) Four - wheel drive (4WD). LHD 127KW
T31. 2500cc. QR25DE. 4WD. JAPAN.2007.03-2010.072.5L Patrol QR25DE EGI (169 hp / 124 kW) Four - wheel drive (4WD). LHD
NT312007.08-2010.072.0L Patrol MR20DE (140 hp / 103 kW) Four - wheel drive (4WD). RHD
T31R. 2000cc. MR20DE. 4WD. Rus.2009.10-2012.102.0L Patrol MR20DE EGI (140 hp / 103 kW) Four - wheel drive (4WD). LHD
T31R. 2500cc. QR25DE. 4WD. Rus.2009.10-2012.102.5L Patrol QR25DE EGI (169 hp / 124 kW) Four - wheel drive (4WD). LHD
T31R. 2000cc. M9R. Turbo. Диз. 4WD. Rus. 110KW2010.02-2012.102.0L Diesel M9R (150 hp / 110 kW) Four - wheel drive (4WD). LHD 110KW
T31R. 2000cc. M9R. Turbo. Диз. 4WD. Rus. 130KW2010.02-2012.102.0L Diesel M9R (177 hp / 130 kW) Four - wheel drive (4WD). LHD 130KW
NT312010.07-2014.042.0L Patrol MR20DE (140 hp / 103 kW) Four - wheel drive (4WD). RHD
T31. 2000cc. MR20DE. 4WD. Rus.2010.07-2014.042.0L Patrol MR20DE EGI (140 hp / 103 kW) Four - wheel drive (4WD). LHD
T31. 2000cc. M9R. Turbo. Диз. 4WD. JAPAN. 110KW2010.07-2014.042.0L Diesel M9R (105 hp / 110 kW) Four - wheel drive (4WD). LHD 110KW
T31. 2000cc. M9R. Turbo. Диз. JAPAN. 110KW2010.07-2014.042.0L Diesel M9R (150 hp / 110 kW) Front - wheel drive (2WD). LHD 110KW
T31. 2000cc. M9R. Turbo. Диз. 4WD. Rus. 110KW2010.07-2014.042.0L Diesel M9R (150 hp / 110 kW) Four - wheel drive (4WD). LHD 110KW
T31. 2000cc. M9R. Turbo. Диз. 4WD. JAPAN. 127KW2010.07-2014.042.0L Diesel M9R (173 hp / 127 kW) Four - wheel drive (4WD). LHD 127KW
T31. 2000cc. M9R. Turbo. Диз. 4WD. Rus. 127KW2010.07-2014.042.0L Diesel M9R (173 hp / 127 kW) Four - wheel drive (4WD). LHD 127KW
T31. 2500cc. QR25DE. 4WD. Rus.2010.07-2014.042.5L Patrol QR25DE EGI (169 hp / 124 kW) Four - wheel drive (4WD). LHD
T31R. 2000cc. MR20DE. 4WD. Rus.2012.10-2014.042.0L Patrol MR20DE EGI (140 hp / 103 kW) Four - wheel drive (4WD). LHD
T31R. 2000cc. M9R. Turbo. Диз. 4WD. Rus. 110KW2012.10-2014.042.0L Diesel M9R (150 hp / 110 kW) Four - wheel drive (4WD). LHD 110KW
T31R. 2000cc. M9R. Turbo. Диз. 4WD. Rus. 130KW2012.10-2014.042.0L Diesel M9R (177 hp / 130 kW) Four - wheel drive (4WD). LHD 130KW
T31R. 2500cc. QR25DE. 4WD. Rus.2012.10-2014.042.5L Patrol QR25DE EGI (169 hp / 124 kW) Four - wheel drive (4WD). LHD
