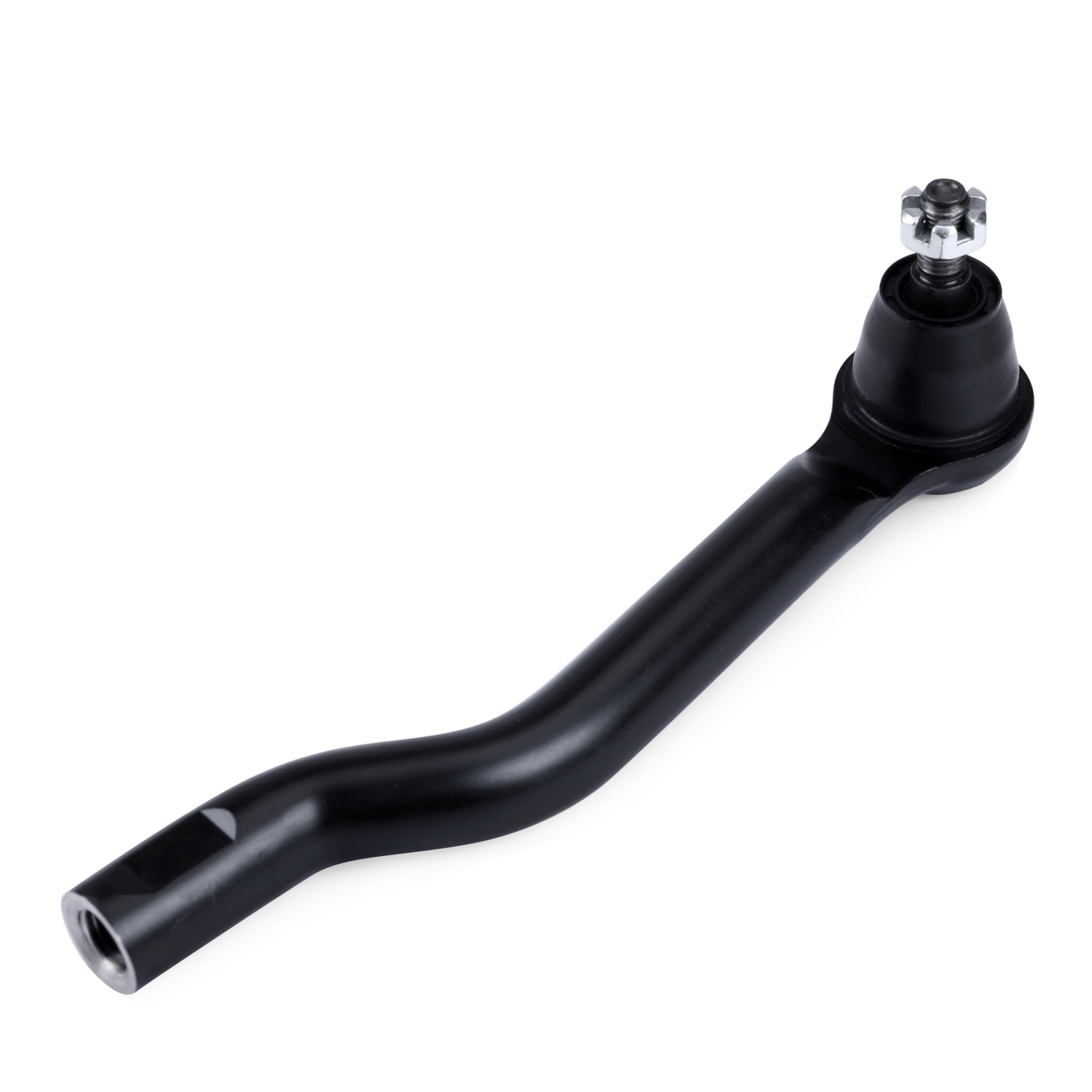

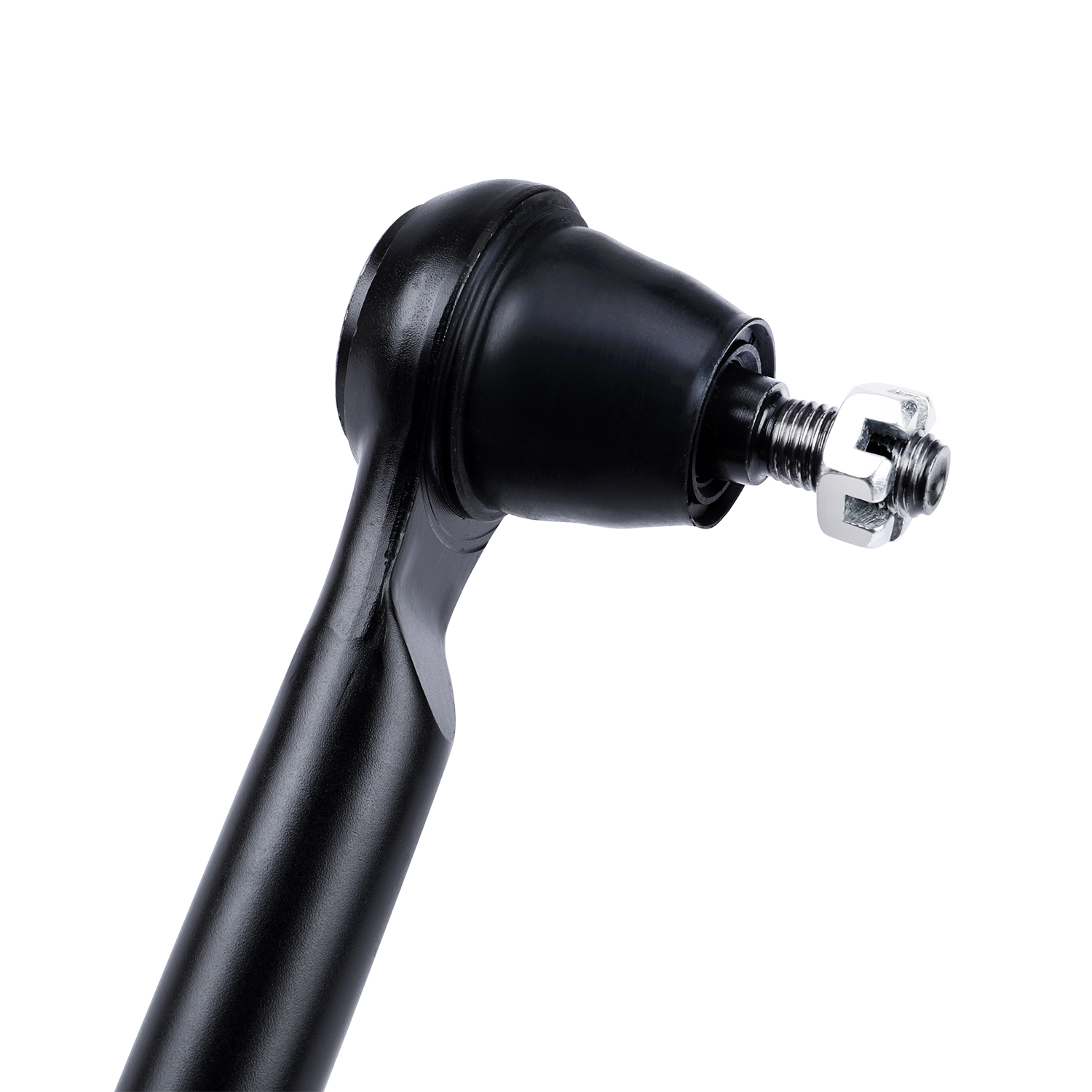

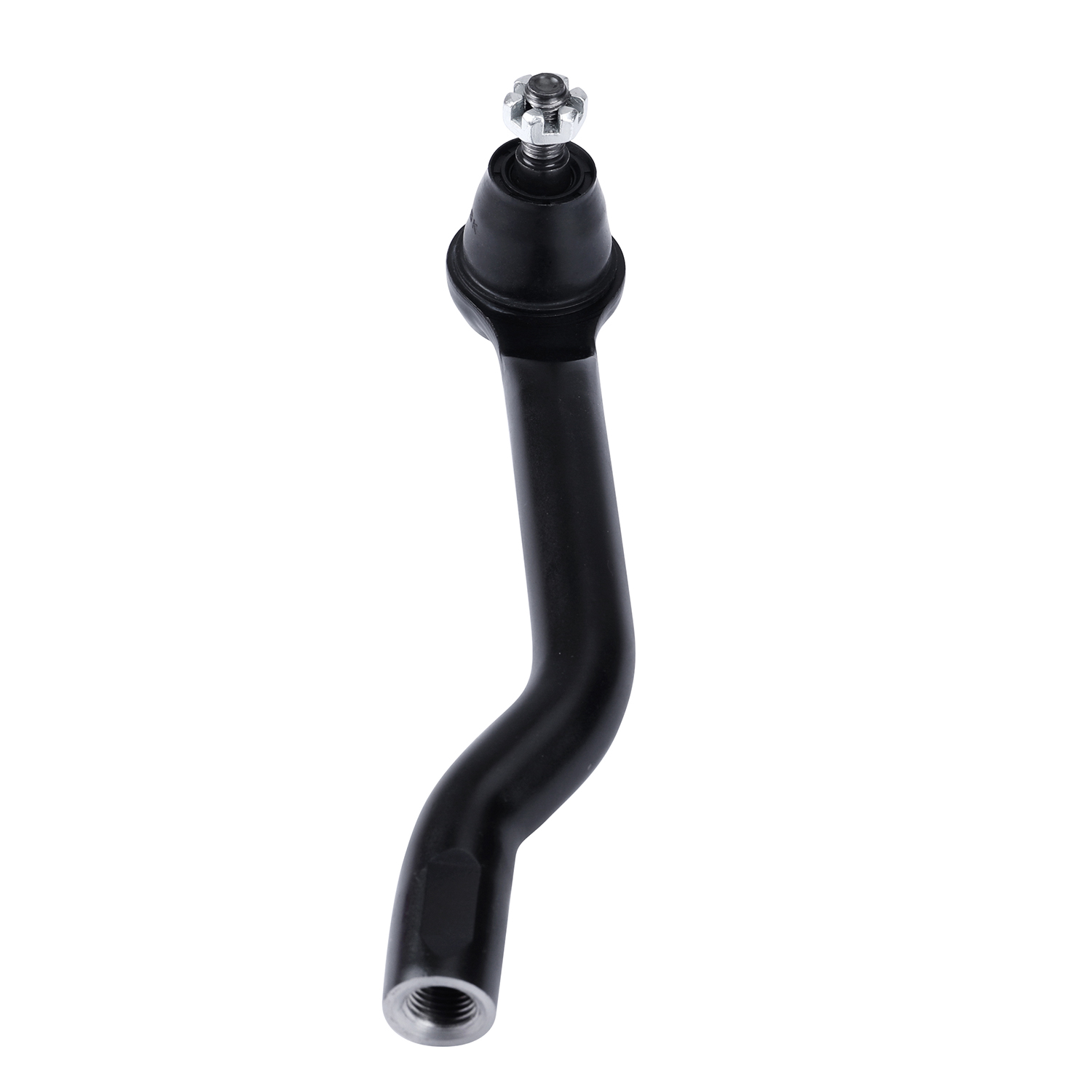

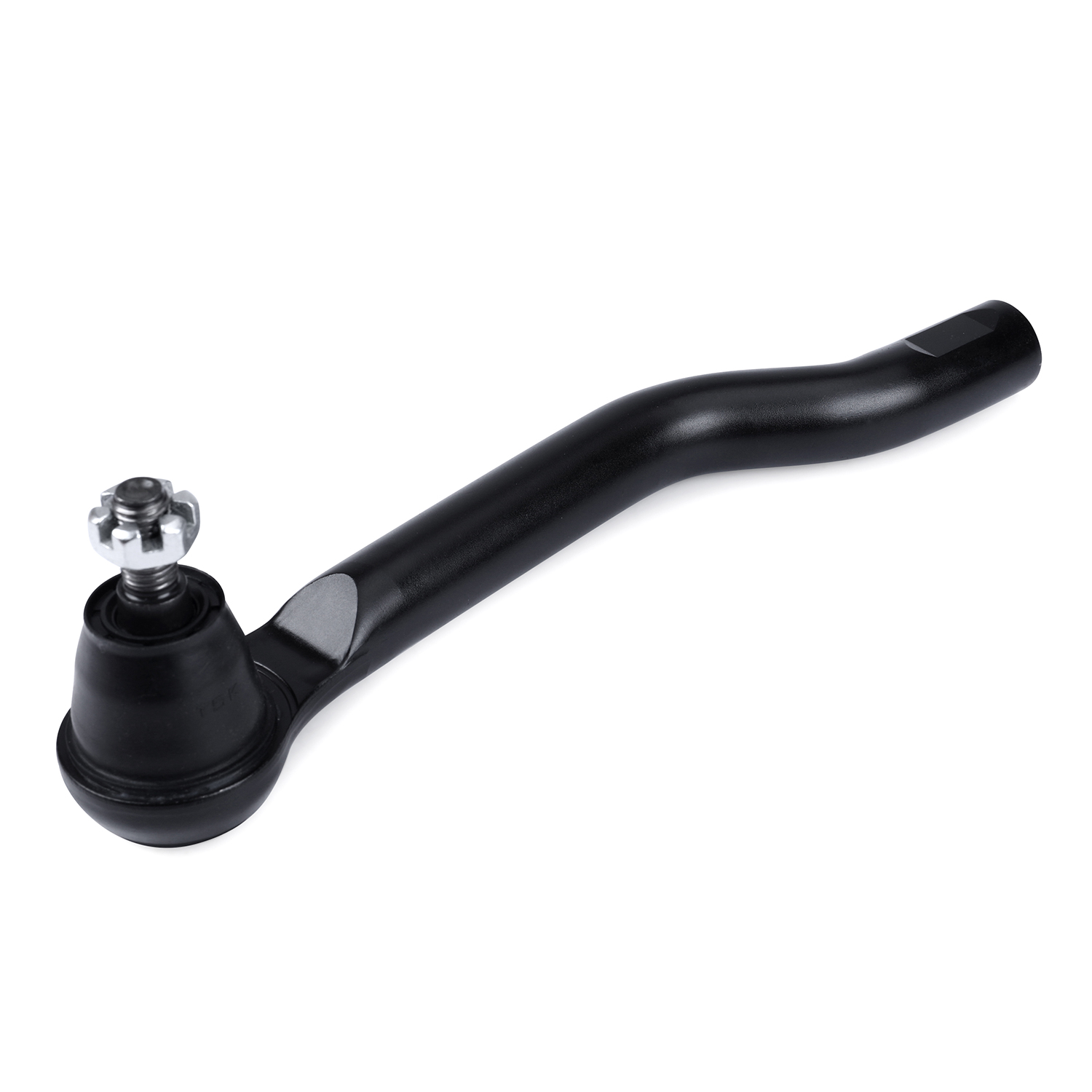

TIE ROD END TE-40103L

MASUMA No.
ME-N581L
TOMOI No.
TE-40103L
555 No.
SE-N581L
CTR No.
CE0-545L

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • D8640-4BA0A
  • D8640-4BA0B
  • 485202260R

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

NISSAN
QASHQAI
Chassis No.YearConfiguration
J11R. 1200cc. H5FT. Turbo. Rus2015.10-...1.2L Patrol H5FT (115 hp / 85 kW) Front - wheel drive (2WD). LHD
J11R. 2000cc. MR20DD. 2WD. Rus2015.10-...2.0L Patrol MR20DD EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD
J11R. 2000cc. MR20DD. 4WD. Rus2015.10-...2.0L Patrol MR20DD EGI (144 hp / 106 kW) Four - wheel drive (4WD). LHD
J11R. 1600cc. R9M. Turbo. Диз. Rus2015.10-2019.121.6L Diesel R9M (130 hp / 96 kW) Front - wheel drive (2WD). LHD
X-TRAIL
Chassis No.YearConfiguration
T322013.12-2022.062.0L Patrol MR20DD EGI (147 hp / 108 kW) Front - wheel drive (2WD). RHD
NT322013.12-2022.062.0L Patrol MR20DD EGI (147 hp / 108 kW) Four - wheel drive (4WD). RHD
T32. 1600cc. R9M. Turbo. Диз. 2WD. Euro2014.04-2021.121.6L Diesel R9M DCI (130 hp / 96 kW) Front - wheel drive (2WD). LHD
T32. 1600cc. R9M. Turbo. Диз. 4WD. Euro2014.04-2021.121.6L Diesel R9M DCI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
T32. 1600cc. R9M. Turbo. Диз. 4WD. UKR/KAZ2014.04-2021.121.6L Diesel R9M DCI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
T32. 2000cc. MR20DD. 4WD. UKR/KAZ2014.04-2021.122.0L Patrol MR20DD EGI (141 hp / 104 kW) Four - wheel drive (4WD). LHD
T32. 2000cc. MR20DD. 2WD. UKR/KAZ2014.04-2021.122.0L Patrol MR20DD EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD
T32. 2500cc. QR25DE. 4WD. UKR/KAZ2014.04-2021.122.5L Patrol QR25DE EGI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
T32R. 1600cc. R9M. Turbo. Диз. 4WD. Rus2014.12-2016.041.6L Diesel R9M DCI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
T32R. 2000cc. MR20DD. 2WD. Rus2014.12-2016.042.0L Patrol MR20DD EGI (144 hp / 106 kW) Front - wheel drive (2WD). LHD
T32R. 2000cc. MR20DD. 4WD. Rus2014.12-2016.042.0L Patrol MR20DD EGI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
T32R. 2500cc. QR25DE. 4WD. Rus2014.12-2016.042.5L Patrol QR25DE EGI (171 hp / 126 kW) Four - wheel drive (4WD). LHD
HT322015.05-2022.062.0L Patrol MR20DD EGI (147 hp / 108 kW) Front - wheel drive (2WD). RHD
HNT322015.05-2022.062.0L Patrol MR20DD EGI (147 hp / 108 kW) Four - wheel drive (4WD). RHD
T32RR. 1600cc. R9M. Turbo. Диз. 4WD. Rus2016.04-...1.6L Diesel R9M DCI (130 hp / 96 kW) Four - wheel drive (4WD). LHD
T32RR. 2000cc. MR20DD. 2WD. Rus2016.04-...2.0L Patrol MR20DD EGI (147 hp / 108 kW) Front - wheel drive (2WD). LHD
T32RR. 2000cc. MR20DD. 4WD. Rus2016.04-...2.0L Patrol MR20DD EGI (147 hp / 108 kW) Four - wheel drive (4WD). LHD
T32RR. 2500cc. QR25DE. 4WD. Rus2016.04-...2.5L Patrol QR25DE EGI (171 hp / 126 kW) Four - wheel drive (4WD). LHD
T32. 1600cc. MR16DDT. 2WD2018.01-...1.6L Patrol MR16DDT DIG (163 hp / 120 kW) Front - wheel drive (2WD). LHD
RENAULT
KOLEOS
Chassis No.YearConfiguration
HZG. M5R. SUV2017.06-2020.102.0L Patrol M5R EGI (144 hp / 106 kW) Four - wheel drive (4WD). LHD MR20DD
HZG. 2TR. SUV2017.06-2020.102.5L Patrol 2TR EFI (171 hp / 126 kW) Four - wheel drive (4WD). LHD
HZG. M9R. SUV2017.09-2020.102.0L Diesel M9R DCI (150 hp / 110 kW) Four - wheel drive (4WD). LHD
