TIE ROD END TE-50150R

MASUMA No.
ME-T021R
TOMOI No.
TE-50150R
TRW No.
JTE2084
555 No.
SE-T021R
CTR No.
CE0-781

High Security

Boost Motivation

In-situ Installation

Stable And Durable

OEM List
  • 45046-09480
  • 45046-59195
  • 45046-59255

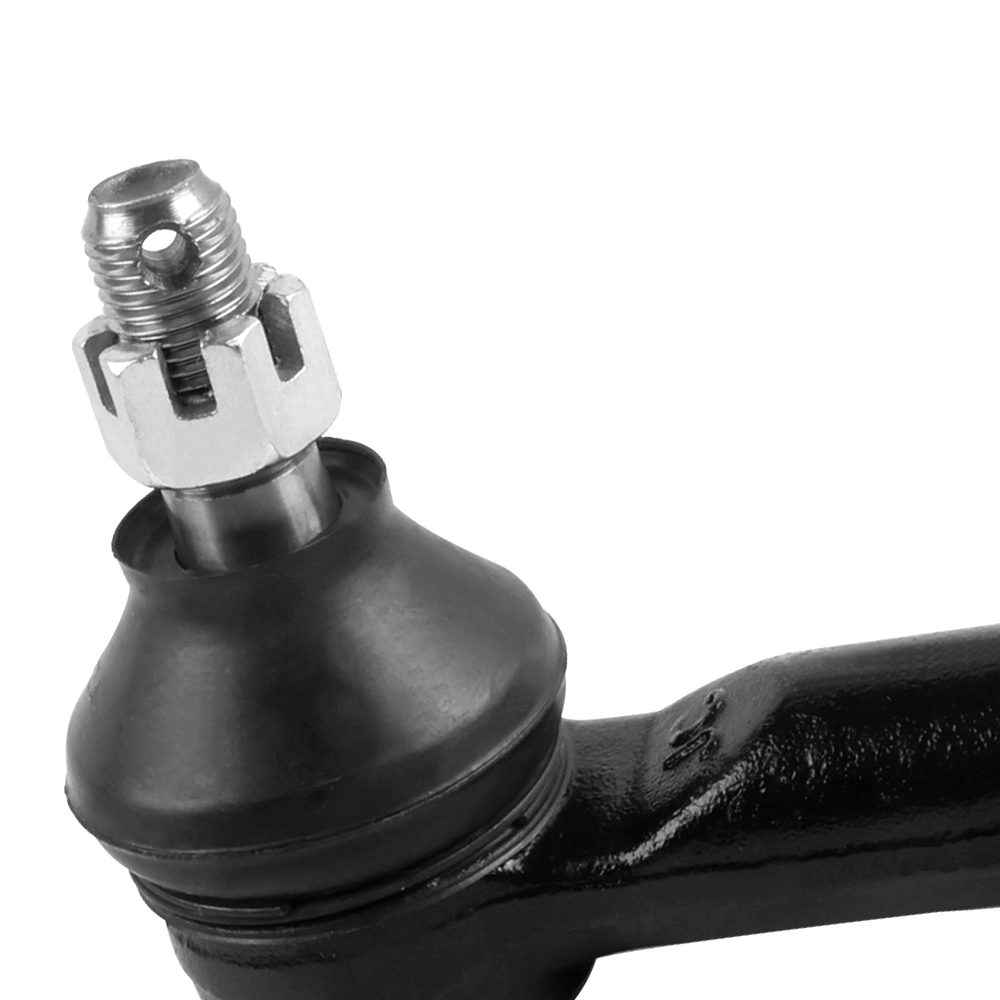

TOMOI tie rod ends are manufactured using modern non-disassemblable technology. Ball joint parts of the ends are made of Cr40 alloy steel with hardening. Mirror processing technology ensures the surface roughness of the ball pin is no more than 0.4 microns, which significantly increases the service life of the joint. The design and processing technology of the ball joint guarantee that even under high angular loads, the ball joint will not jump out of the standard seat.

TOMOI is a global brand of spare parts, components and consumables for cars. The main specialization of the brand: resource parts for post-warranty service of Asian and European cars. The company’s strategy is to offer consumers the best ratio of reliability and price of spare parts.

TOYOTA
AQUA
Chassis No.YearConfiguration
NHP102011.12-2012.121.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD
NHP102012.12-2013.121.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). RHD
BELTA
Chassis No.YearConfiguration
KSP922005.11-2008.081.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). RHD
NCP962005.11-2012.061.3L Patrol 2NZFE EFI (87 hp / 64 kW) Four - wheel drive (4WD). RHD
SCP922005.11-2012.061.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD
COROLLA AXIO
Chassis No.YearConfiguration
NRE1602012.04-2012.081.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD
NZE1642012.04-2012.081.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NZE1612012.04-2012.081.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NZE1642012.08-...1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NZE1612012.08-...1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NRE1602012.08-2019.081.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD
COROLLA FIELDER
Chassis No.YearConfiguration
NZE164G2012.04-2012.081.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NZE161G2012.04-2012.081.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
ZRE162G2012.04-2012.081.8L Patrol 2ZRFAE EFI (140 hp / 103 kW) Front - wheel drive (2WD). RHD
NZE164G2012.08-...1.5L Patrol 1NZFE EFI (103 hp / 76 kW) Four - wheel drive (4WD). RHD
NZE161G2012.08-...1.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
ZRE162G2012.08-2019.081.8L Patrol 2ZRFAE EFI (140 hp / 103 kW) Front - wheel drive (2WD). RHD
VITZ
Chassis No.YearConfiguration
KSP902005.01-2010.121.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). RHD
NCP952005.01-2010.121.3L Patrol 2NZFE EFI (87 hp / 64 kW) Four - wheel drive (4WD). RHD
SCP902005.01-2010.121.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD
NCP912005.01-2010.121.5L Patrol 1NZFE EFI (110 hp / 81 kW) Front - wheel drive (2WD). RHD RS
NCP912005.01-2010.121.5L Patrol 1NZFE EFI (119 hp / 86 kW) Front - wheel drive (2WD). RHD
SCP902007.08-2010.121.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). RHD RS
KSP1302010.12-2012.051.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). RHD
NSP1302010.12-2012.051.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD
NCP1312010.12-2012.051.5L Patrol 1NZFE EFI (109 hp / 80 kW) Front - wheel drive (2WD). RHD
NSP1352010.12-2012.081.3L Patrol 1NRFE EFI (95 hp / 70 kW) Four - wheel drive (4WD). RHD
NSP1302012.05-2014.041.3L Patrol 1NRFE EFI (95 hp / 70 kW) Front - wheel drive (2WD). RHD
NSP1352012.08-2020.011.3L Patrol 1NRFE EFI (95 hp / 70 kW) Four - wheel drive (4WD). RHD
NSP1302014.04-2020.011.3L Patrol 1NRFKE EFI (99 hp / 73 kW) Front - wheel drive (2WD). RHD
NHP1302017.01-2020.011.5L Patrol 1NZFXE EFI (75 hp / 55 kW) Front - wheel drive (2WD). RHD
YARIS
Chassis No.YearConfiguration
KSP90L2005.08-2009.101.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). LHD JPP
KSP90L2005.08-2009.101.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). LHD JPP
SCP90L2005.11-2008.111.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
KSP90L2005.11-2011.071.0L Patrol 1KR-FE EFI (71 hp / 52 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NLP90L2005.11-2011.071.4L Diesel 1NDTV (90 hp / 66 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
SCP90L2006.01-2008.111.3L Patrol 2SZFE EFI (87 hp / 64 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
KSP90L2006.01-2011.071.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NLP90L2006.01-2011.071.4L Diesel 1NDTV (90 hp / 66 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NSP90L2008.11-2011.071.3L Patrol 1NRFE EFI (100 hp / 74 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NSP90L2008.11-2011.071.3L Patrol 1NRFE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NSP130L2011.07-2017.031.3L Patrol 1NRFE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NSP130L2011.07-2017.031.3L Patrol 1NRFE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NLP130L2011.07-2018.121.4L Diesel 1NDTV (90 hp / 66 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
NLP130L2011.07-2018.121.4L Diesel 1NDTV (90 hp / 66 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
KSP130L2011.07-2020.061.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
KSP130L2011.07-2020.061.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
KSP130L2011.08-2012.081.0L Patrol 1KR-FE EFI (69 hp / 51 kW) Front - wheel drive (2WD). LHD JPP
NSP130L2011.08-2012.081.3L Patrol 1NRFE EFI (99 hp / 73 kW) Front - wheel drive (2WD). LHD JPP
NHP130L2012.04-2020.061.5L Patrol 1NZFXE EFI (74 hp / 54 kW) Front - wheel drive (2WD). LHD FRP. TOYOTA MOTOR MANUFACTURING FRANCE
